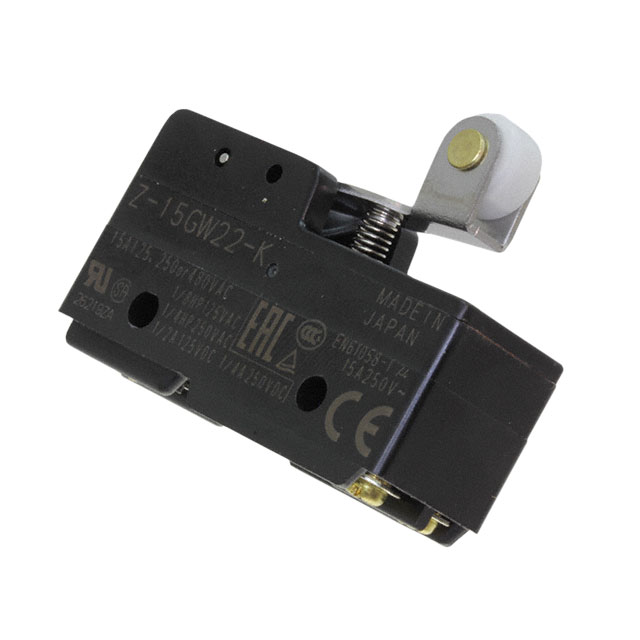

Z-15GW22

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 125V

Deep-Dive with AI

Search across all available documentation for this part.

Z-15GW22

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Z-15GW22

Actuator Type	Roller, Lever
Circuit	SPDT
Current Rating (Amps)	6 A, 15 A
Differential Travel	0.5 mm
Differential Travel	0.02 in
Electrical Life	500000 Cycles
Ingress Protection	IP00
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Position	30.2 mm
Operating Position	1.188 in
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Overtravel	0.094 in
Overtravel	2.4 mm
Release Force	42 gf
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Z-15G Series

Part	Ingress Protection	Switch Function	Overtravel	Overtravel	Operating Force	Circuit	Mounting Type	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Pretravel	Pretravel	Operating Position	Operating Position	Voltage Rating - AC	Current Rating (Amps)	Actuator Type	Differential Travel	Differential Travel	Mechanical Life	Termination Style	Voltage Rating - DC	Release Force
Omron Electronics Inc-EMC Div Z-15GD55-MRA	IP62	On-Mom	1.6 mm	0.062 in	540 gf	SPDT	Chassis Mount	500000 Cycles	80 C	-15 °C	0.071 in	1.8 mm	0.846 in	21.5 mm	125 V	6 A 15 A	Round (Pin Plunger)	0.002 in	0.05 mm	20000000 Cycles	Solder Lug	30 V	114 gf
Omron Electronics Inc-EMC Div Z-15GK55	IP62	On-Mom	1.6 mm	0.062 in	540 gf	SPDT	Chassis Mount	500000 Cycles	80 C	-15 °C	0.09 in	2.3 mm	1.11 in	28.2 mm	125 V	6 A 15 A	Round (Pin Plunger)	0.002 in	0.05 mm	20000000 Cycles	Solder Lug	30 V	114 gf
Omron Electronics Inc-EMC Div Z-15GW2277-B	IP00	On-Mom	2.4 mm	0.094 in	180 gf	SPDT	Chassis Mount	500000 Cycles	80 C	-25 °C			1.625 in	41.3 mm	125 V	6 A 15 A	Lever Roller	0.031 "	0.8 mm	10000000 Cycles	Screw Terminal	30 V	50 gf
Omron Electronics Inc-EMC Div Z-15GNJ55-MR2 0.5M																	Rod Spring
Omron Electronics Inc-EMC Div Z-15GW22	IP00	On-Mom	2.4 mm	0.094 in		SPDT	Chassis Mount	500000 Cycles	80 C	-25 °C			1.188 in	30.2 mm	125 V	6 A 15 A	Lever Roller	0.02 in	0.5 mm	10000000 Cycles	Solder Lug	30 V	42 gf
Omron Electronics Inc-EMC Div Z-15GW255-B7-K	IP62	On-Mom	4 mm	0.158 in	130 gf	SPDT	Chassis Mount	500000 Cycles	80 C	-15 °C			1.188 in	30.2 mm	125 V	6 A 15 A	Lever Roller	0.062 in	1.6 mm	20000000 Cycles	Screw Terminal	30 V	21 gf
Omron Electronics Inc-EMC Div Z-15GNJ55	IP62	On-Mom			50 gf	SPDT	Chassis Mount	100000 Cycles	80 C	-15 °C	0.787 in	20 mm			125 V	2 A 15 A	Rod Spring			1000000 Cycles	Solder Lug	30 V
Omron Electronics Inc-EMC Div Z-15GW2155-B	IP62	On-Mom	2 mm	0.079 in		SPDT	Chassis Mount	500000 Cycles	80 C	-15 °C			0.748 "	19 mm	125 V	6 A 15 A	Lever Straight	0.04 in	1 mm	10000000 Cycles	Screw Terminal	30 V	28 gf
Omron Electronics Inc-EMC Div Z-15GW32-B
Omron Electronics Inc-EMC Div Z-15GQ-C	IP00	On-Mom				SPDT		500000 Cycles	80 C	-25 °C					125 V	6 A 15 A	Overtravel Plunger			20000000 Cycles	Solder Lug	30 V
