5282-4PG-515

Active

Conxall/Switchcraft

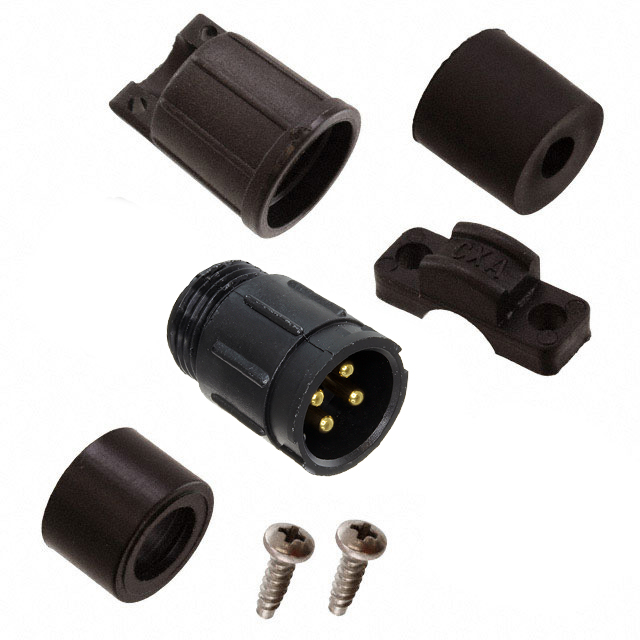

CONN RCPT MALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5282-4PG-515

Active

Conxall/Switchcraft

CONN RCPT MALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5282-4PG-515

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [custom]	0.17 in, 0.15 in
Cable Opening [custom]	3.81 mm, 4.32 mm
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	5.6 A
Fastening Type	Bayonet Lock
Features	Cable Clamp, Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

5282-4PG Series

Part	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Fastening Type	Contact Finish - Mating	Shielding	Features	Orientation	Primary Material	Contact Material	Connector Type	Mounting Type	Ingress Protection	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Current Rating (Amps)	Voltage Rating	Backshell Material, Plating	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 5282-4PG-321	5.33 mm	5.84 mm	0.21 in	0.23 in	Bayonet Lock	Gold	Unshielded	Backshell	Keyed	Plastic	Brass	Male Pins Receptacle	Free Hanging (In-Line)	Weathertight	Black	-40 °C	115 °C	4	5.6 A	600 V	Nylon Polyamide (PA)
Conxall/Switchcraft 5282-4PG-528	7.11 mm	7.37 mm	0.28 in	0.29 in	Bayonet Lock	Gold	Unshielded	Backshell Cable Clamp	Keyed	Plastic	Brass	Male Pins Receptacle	Free Hanging (In-Line)	Weathertight	Black	-40 °C	115 °C	4	5.6 A	600 V	Nylon Polyamide (PA)
Conxall/Switchcraft 5282-4PG-515					Bayonet Lock	Gold	Unshielded	Backshell Cable Clamp	Keyed	Plastic	Brass	Male Pins Receptacle	Free Hanging (In-Line)	Weathertight	Black	-40 °C	115 °C	4	5.6 A	600 V	Nylon Polyamide (PA)	0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 5282-4PG-524	6.1 mm	6.86 mm	0.24 in	0.27 in	Bayonet Lock	Gold	Unshielded	Backshell Cable Clamp	Keyed	Plastic	Brass	Male Pins Receptacle	Free Hanging (In-Line)	Weathertight	Black	-40 °C	115 °C	4	5.6 A	600 V	Nylon Polyamide (PA)
Conxall/Switchcraft 5282-4PG-315					Bayonet Lock	Gold	Unshielded	Backshell	Keyed	Plastic	Brass	Male Pins Receptacle	Free Hanging (In-Line)	Weathertight	Black	-40 °C	115 °C	4	5.6 A	600 V	Nylon Polyamide (PA)	0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 5282-4PG-521	5.33 mm	5.84 mm	0.21 in	0.23 in	Bayonet Lock	Gold	Unshielded	Backshell Cable Clamp	Keyed	Plastic	Brass	Male Pins Receptacle	Free Hanging (In-Line)	Weathertight	Black	-40 °C	115 °C	4	5.6 A	600 V	Nylon Polyamide (PA)
Conxall/Switchcraft 5282-4PG-330	7.62 mm		0.3 in	0.32 in	Bayonet Lock	Gold	Unshielded	Backshell	Keyed	Plastic	Brass	Male Pins Receptacle	Free Hanging (In-Line)	Weathertight	Black	-40 °C	115 °C	4	5.6 A	600 V	Nylon Polyamide (PA)			8.13 mm
Conxall/Switchcraft 5282-4PG-3DC					Bayonet Lock	Gold	Unshielded	Backshell	Keyed	Plastic	Brass	Male Pins Receptacle	Free Hanging (In-Line)	Weathertight	Black	-40 °C	115 °C	4	5.6 A	600 V	Nylon Polyamide (PA)
Conxall/Switchcraft 5282-4PG-530	7.62 mm		0.3 in	0.32 in	Bayonet Lock	Gold	Unshielded	Backshell Cable Clamp	Keyed	Plastic	Brass	Male Pins Receptacle	Free Hanging (In-Line)	Weathertight	Black	-40 °C	115 °C	4	5.6 A	600 V	Nylon Polyamide (PA)			8.13 mm
Conxall/Switchcraft 5282-4PG-318					Bayonet Lock	Gold	Unshielded	Backshell	Keyed	Plastic	Brass	Male Pins Receptacle	Free Hanging (In-Line)	Weathertight	Black	-40 °C	115 °C	4	5.6 A	600 V	Nylon Polyamide (PA)				4.57 mm	0.18 in	0.2 in	5.08 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.88
		10	$ 10.95
		25	$ 10.26
		50	$ 9.77
		100	$ 9.31
		300	$ 8.61
		500	$ 8.31
		1000	$ 7.91

Description

General part information

5282-4PG Series

4 Position Circular Connector Receptacle, Male Pins Solder Cup
