5282-4PG-3DC

Active

Conxall/Switchcraft

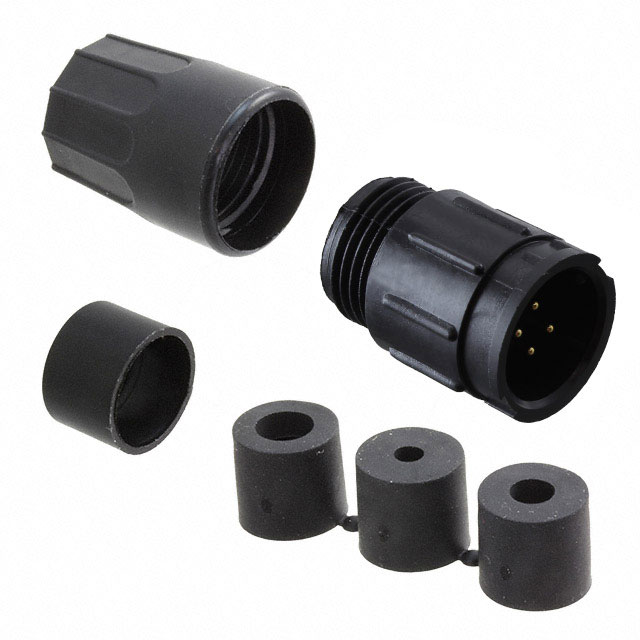

CONN RCPT MALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCable Assemblies/Connector Catalog Datasheet

5282-4PG-3DC

Active

Conxall/Switchcraft

CONN RCPT MALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsCable Assemblies/Connector Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5282-4PG-3DC

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	5.6 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

5282-4PG Series

Part	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Fastening Type	Contact Finish - Mating	Shielding	Features	Orientation	Primary Material	Contact Material	Connector Type	Mounting Type	Ingress Protection	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Current Rating (Amps)	Voltage Rating	Backshell Material, Plating	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 5282-4PG-321	5.33 mm	5.84 mm	0.21 in	0.23 in	Bayonet Lock	Gold	Unshielded	Backshell	Keyed	Plastic	Brass	Male Pins Receptacle	Free Hanging (In-Line)	Weathertight	Black	-40 °C	115 °C	4	5.6 A	600 V	Nylon Polyamide (PA)
Conxall/Switchcraft 5282-4PG-528	7.11 mm	7.37 mm	0.28 in	0.29 in	Bayonet Lock	Gold	Unshielded	Backshell Cable Clamp	Keyed	Plastic	Brass	Male Pins Receptacle	Free Hanging (In-Line)	Weathertight	Black	-40 °C	115 °C	4	5.6 A	600 V	Nylon Polyamide (PA)
Conxall/Switchcraft 5282-4PG-515					Bayonet Lock	Gold	Unshielded	Backshell Cable Clamp	Keyed	Plastic	Brass	Male Pins Receptacle	Free Hanging (In-Line)	Weathertight	Black	-40 °C	115 °C	4	5.6 A	600 V	Nylon Polyamide (PA)	0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 5282-4PG-524	6.1 mm	6.86 mm	0.24 in	0.27 in	Bayonet Lock	Gold	Unshielded	Backshell Cable Clamp	Keyed	Plastic	Brass	Male Pins Receptacle	Free Hanging (In-Line)	Weathertight	Black	-40 °C	115 °C	4	5.6 A	600 V	Nylon Polyamide (PA)
Conxall/Switchcraft 5282-4PG-315					Bayonet Lock	Gold	Unshielded	Backshell	Keyed	Plastic	Brass	Male Pins Receptacle	Free Hanging (In-Line)	Weathertight	Black	-40 °C	115 °C	4	5.6 A	600 V	Nylon Polyamide (PA)	0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 5282-4PG-521	5.33 mm	5.84 mm	0.21 in	0.23 in	Bayonet Lock	Gold	Unshielded	Backshell Cable Clamp	Keyed	Plastic	Brass	Male Pins Receptacle	Free Hanging (In-Line)	Weathertight	Black	-40 °C	115 °C	4	5.6 A	600 V	Nylon Polyamide (PA)
Conxall/Switchcraft 5282-4PG-330	7.62 mm		0.3 in	0.32 in	Bayonet Lock	Gold	Unshielded	Backshell	Keyed	Plastic	Brass	Male Pins Receptacle	Free Hanging (In-Line)	Weathertight	Black	-40 °C	115 °C	4	5.6 A	600 V	Nylon Polyamide (PA)			8.13 mm
Conxall/Switchcraft 5282-4PG-3DC					Bayonet Lock	Gold	Unshielded	Backshell	Keyed	Plastic	Brass	Male Pins Receptacle	Free Hanging (In-Line)	Weathertight	Black	-40 °C	115 °C	4	5.6 A	600 V	Nylon Polyamide (PA)
Conxall/Switchcraft 5282-4PG-530	7.62 mm		0.3 in	0.32 in	Bayonet Lock	Gold	Unshielded	Backshell Cable Clamp	Keyed	Plastic	Brass	Male Pins Receptacle	Free Hanging (In-Line)	Weathertight	Black	-40 °C	115 °C	4	5.6 A	600 V	Nylon Polyamide (PA)			8.13 mm
Conxall/Switchcraft 5282-4PG-318					Bayonet Lock	Gold	Unshielded	Backshell	Keyed	Plastic	Brass	Male Pins Receptacle	Free Hanging (In-Line)	Weathertight	Black	-40 °C	115 °C	4	5.6 A	600 V	Nylon Polyamide (PA)				4.57 mm	0.18 in	0.2 in	5.08 mm
