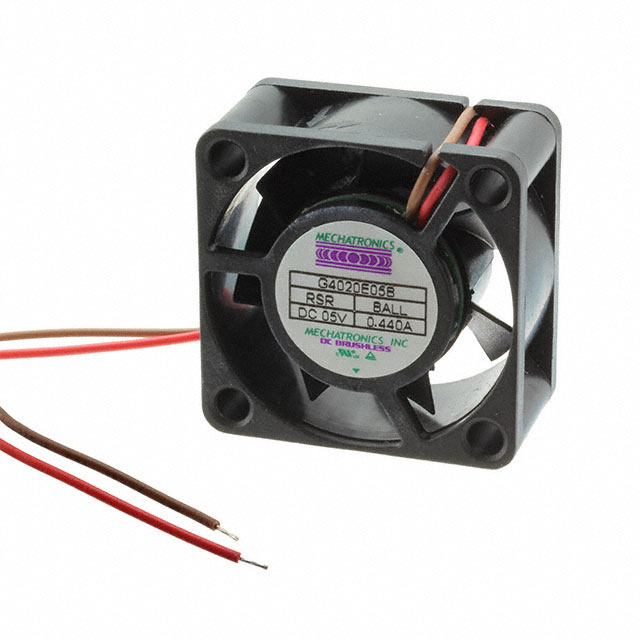

G4020E05B-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 40X20MM BALL 5VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AC/DC Fans & Blowers Catalog +2

G4020E05B-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 40X20MM BALL 5VDC WIRE

Deep-Dive with AI

DocumentsDatasheet AC/DC Fans & Blowers Catalog +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G4020E05B-RSR

Air Flow	0.328 mł/min
Air Flow	11.7 CFM
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.44 A
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	32 dB
RPM	8000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	0.23 in H2O
Static Pressure	57.3 Pa
Termination	2 Wire Leads
Voltage - Rated	5 V
Weight	28.12 g
Weight	0.062 lb
Width [y]	20 mm

G4020 Series

Part	Noise	RPM	Fan Type	Voltage - Rated	Weight	Weight	Material - Blade	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Features	Static Pressure	Static Pressure	Approval Agency	Width [y]	Termination	Bearing Type	Air Flow	Air Flow	Current Rating (Amps)
Mechatronics Bearing Group G4020H05B1+6-RS-WS	29 dB(A)	7000 RPM	Tubeaxial	5 V	28.12 g	0.062 lb	Polybutylene Terephthalate (PBT)	40 mm	Square	40 mm	Alarm Sensor PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	49.8 Pa	0.2 in H2O	CE cUL TUV UL	20 mm	5 Wire Leads	Ball
Mechatronics Bearing Group G4020S05B-RSR	21 dB(A)	4000 RPM	Tubeaxial	5 V	28.12 g	0.062 lb	Polybutylene Terephthalate (PBT)	40 mm	Square	40 mm	Thermal Overload Protector (TOP)	17.4 Pa	0.07 in H2O	CE cUL TUV UL	20 mm	2 Wire Leads	Ball	6 CFM	0.168 m³/min	120 mA
Mechatronics Bearing Group G4020E05B1-RSR	32 dB	8000 RPM	Tubeaxial	5 V	28.12 g	0.062 lb	Polybutylene Terephthalate (PBT)	40 mm	Square	40 mm	Speed Sensor (Tach) Thermal Overload Protector (TOP)	57.3 Pa	0.23 in H2O	CE cUL TUV UL	20 mm	3 Wire Leads	Ball	11.7 CFM	0.328 mł/min	0.44 A
Mechatronics Bearing Group G4020H24B1-RSR	29 dB(A)	7000 RPM	Tubeaxial	24 VDC	28.12 g	0.062 lb	Polybutylene Terephthalate (PBT)	40 mm	Square	40 mm	Speed Sensor (Tach) Thermal Overload Protector (TOP)	49.8 Pa	0.2 in H2O	CE cUL TUV UL	20 mm	3 Wire Leads	Ball	11 CFM	0.308 mł/min
Mechatronics Bearing Group G4020E05B-RSR	32 dB	8000 RPM	Tubeaxial	5 V	28.12 g	0.062 lb	Polybutylene Terephthalate (PBT)	40 mm	Square	40 mm	Thermal Overload Protector (TOP)	57.3 Pa	0.23 in H2O	CE cUL TUV UL	20 mm	2 Wire Leads	Ball	11.7 CFM	0.328 mł/min	0.44 A
Mechatronics Bearing Group G4020L12B1-RSR-WS	23 dB(A)	5000 RPM	Tubeaxial	12 VDC	28.12 g	0.062 lb	Polybutylene Terephthalate (PBT)	40 mm	Square	40 mm	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)	27.4 Pa	0.11 in H2O	CE cUL TUV UL	20 mm	4 Wire Leads	Ball	8 CFM	0.224 mł/min	70 mA
Mechatronics Bearing Group G4020E12B2-RSR	32 dB	8000 RPM	Tubeaxial	12 VDC	28.12 g	0.062 lb	Polybutylene Terephthalate (PBT)	40 mm	Square	40 mm	Locked Rotor Sensor Thermal Overload Protector (TOP)	57.3 Pa	0.23 in H2O	CE cUL TUV UL	20 mm	3 Wire Leads	Ball	11.7 CFM	0.328 mł/min
Mechatronics Bearing Group G4020M05B2-RSR	26 dB	6000 RPM	Tubeaxial	5 V	28.12 g	0.062 lb	Polybutylene Terephthalate (PBT)	40 mm	Square	40 mm	Locked Rotor Sensor Thermal Overload Protector (TOP)			CE cUL TUV UL	20 mm	3 Wire Leads	Ball	9 CFM	0.252 mł/min	0.22 A
Mechatronics Bearing Group G4020E05B2-RSR-WS	32 dB	8000 RPM	Tubeaxial	5 V	28.12 g	0.062 lb	Polybutylene Terephthalate (PBT)	40 mm	Square	40 mm	Alarm Sensor Locked Rotor Sensor Thermal Overload Protector (TOP)	57.3 Pa	0.23 in H2O	CE cUL TUV UL	20 mm	4 Wire Leads	Ball	11.7 CFM	0.328 mł/min	0.44 A
Mechatronics Bearing Group G4020E24B-RSR-CC	32 dB	8000 RPM	Tubeaxial	24 VDC	28.12 g	0.062 lb	Polybutylene Terephthalate (PBT)	40 mm	Square	40 mm	Conformal Coating Thermal Overload Protector (TOP)	57.3 Pa	0.23 in H2O	CE cUL TUV UL	20 mm	2 Wire Leads	Ball	11.7 CFM	0.328 mł/min	110 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.39
		10	$ 7.48
		25	$ 7.14
		50	$ 6.90
		100	$ 6.88

Description

General part information

G4020 Series

Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Ball 11.7 CFM (0.328m³/min) 2 Wire Leads
