G4020S05B-RSR
ActiveMechatronics Bearing Group

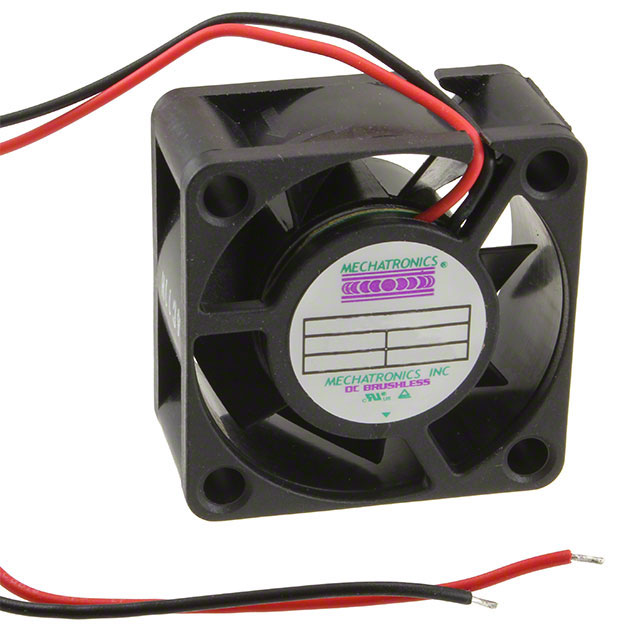

FAN AXIAL 40X20MM BALL 5VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
G4020S05B-RSR
ActiveMechatronics Bearing Group
FAN AXIAL 40X20MM BALL 5VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G4020S05B-RSR |
|---|---|
| Air Flow | 6 CFM |
| Air Flow | 0.168 m³/min |
| Approval Agency | CE, cUL, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 120 mA |
| Fan Type | Tubeaxial |
| Features | Thermal Overload Protector (TOP) |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 21 dB(A) |
| RPM | 4000 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Static Pressure | 17.4 Pa |
| Static Pressure | 0.07 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 5 V |
| Weight | 28.12 g |
| Weight | 0.062 lb |
| Width [y] | 20 mm |
G4020 Series
| Part | Noise | RPM | Fan Type | Voltage - Rated | Weight | Weight | Material - Blade | Size / Dimension [z] | Size / Dimension | Size / Dimension [x] | Features | Static Pressure | Static Pressure | Approval Agency | Width [y] | Termination | Bearing Type | Air Flow | Air Flow | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mechatronics Bearing Group | 29 dB(A) | 7000 RPM | Tubeaxial | 5 V | 28.12 g | 0.062 lb | Polybutylene Terephthalate (PBT) | 40 mm | Square | 40 mm | Alarm Sensor PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP) | 49.8 Pa | 0.2 in H2O | CE cUL TUV UL | 20 mm | 5 Wire Leads | Ball | |||
Mechatronics Bearing Group | 21 dB(A) | 4000 RPM | Tubeaxial | 5 V | 28.12 g | 0.062 lb | Polybutylene Terephthalate (PBT) | 40 mm | Square | 40 mm | Thermal Overload Protector (TOP) | 17.4 Pa | 0.07 in H2O | CE cUL TUV UL | 20 mm | 2 Wire Leads | Ball | 6 CFM | 0.168 m³/min | 120 mA |
Mechatronics Bearing Group | 32 dB | 8000 RPM | Tubeaxial | 5 V | 28.12 g | 0.062 lb | Polybutylene Terephthalate (PBT) | 40 mm | Square | 40 mm | Speed Sensor (Tach) Thermal Overload Protector (TOP) | 57.3 Pa | 0.23 in H2O | CE cUL TUV UL | 20 mm | 3 Wire Leads | Ball | 11.7 CFM | 0.328 mł/min | 0.44 A |
Mechatronics Bearing Group | 29 dB(A) | 7000 RPM | Tubeaxial | 24 VDC | 28.12 g | 0.062 lb | Polybutylene Terephthalate (PBT) | 40 mm | Square | 40 mm | Speed Sensor (Tach) Thermal Overload Protector (TOP) | 49.8 Pa | 0.2 in H2O | CE cUL TUV UL | 20 mm | 3 Wire Leads | Ball | 11 CFM | 0.308 mł/min | |
Mechatronics Bearing Group | 32 dB | 8000 RPM | Tubeaxial | 5 V | 28.12 g | 0.062 lb | Polybutylene Terephthalate (PBT) | 40 mm | Square | 40 mm | Thermal Overload Protector (TOP) | 57.3 Pa | 0.23 in H2O | CE cUL TUV UL | 20 mm | 2 Wire Leads | Ball | 11.7 CFM | 0.328 mł/min | 0.44 A |
Mechatronics Bearing Group | 23 dB(A) | 5000 RPM | Tubeaxial | 12 VDC | 28.12 g | 0.062 lb | Polybutylene Terephthalate (PBT) | 40 mm | Square | 40 mm | Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP) | 27.4 Pa | 0.11 in H2O | CE cUL TUV UL | 20 mm | 4 Wire Leads | Ball | 8 CFM | 0.224 mł/min | 70 mA |
Mechatronics Bearing Group | 32 dB | 8000 RPM | Tubeaxial | 12 VDC | 28.12 g | 0.062 lb | Polybutylene Terephthalate (PBT) | 40 mm | Square | 40 mm | Locked Rotor Sensor Thermal Overload Protector (TOP) | 57.3 Pa | 0.23 in H2O | CE cUL TUV UL | 20 mm | 3 Wire Leads | Ball | 11.7 CFM | 0.328 mł/min | |
Mechatronics Bearing Group | 26 dB | 6000 RPM | Tubeaxial | 5 V | 28.12 g | 0.062 lb | Polybutylene Terephthalate (PBT) | 40 mm | Square | 40 mm | Locked Rotor Sensor Thermal Overload Protector (TOP) | CE cUL TUV UL | 20 mm | 3 Wire Leads | Ball | 9 CFM | 0.252 mł/min | 0.22 A | ||
Mechatronics Bearing Group | 32 dB | 8000 RPM | Tubeaxial | 5 V | 28.12 g | 0.062 lb | Polybutylene Terephthalate (PBT) | 40 mm | Square | 40 mm | Alarm Sensor Locked Rotor Sensor Thermal Overload Protector (TOP) | 57.3 Pa | 0.23 in H2O | CE cUL TUV UL | 20 mm | 4 Wire Leads | Ball | 11.7 CFM | 0.328 mł/min | 0.44 A |
Mechatronics Bearing Group | 32 dB | 8000 RPM | Tubeaxial | 24 VDC | 28.12 g | 0.062 lb | Polybutylene Terephthalate (PBT) | 40 mm | Square | 40 mm | Conformal Coating Thermal Overload Protector (TOP) | 57.3 Pa | 0.23 in H2O | CE cUL TUV UL | 20 mm | 2 Wire Leads | Ball | 11.7 CFM | 0.328 mł/min | 110 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 150 | $ 8.32 | |
Description
General part information
G4020 Series
Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Ball 6.0 CFM (0.168m³/min) 2 Wire Leads
