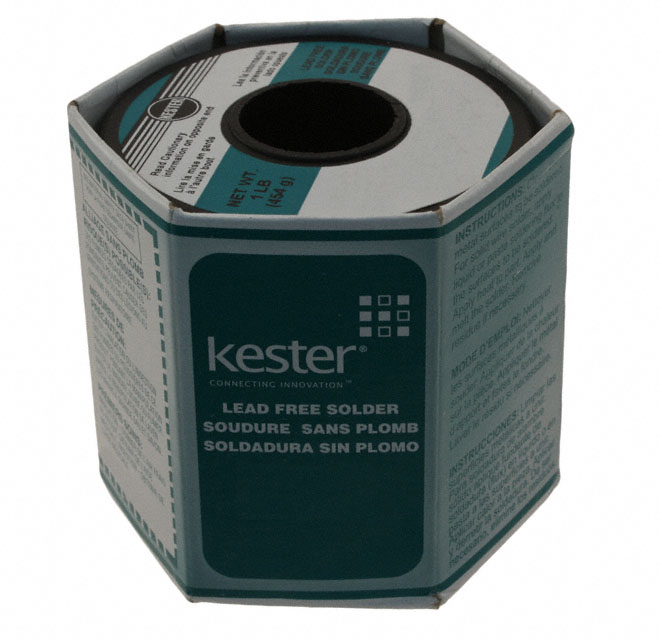

24-7068-6409

Active

Kester Solder

SOLDER WATER SOL .050" 16AWG 1LB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Alloy Temperature Chart

24-7068-6409

Active

Kester Solder

SOLDER WATER SOL .050" 16AWG 1LB

Deep-Dive with AI

DocumentsDatasheet Alloy Temperature Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	24-7068-6409

Composition	Sn96.5Ag3Cu0.5 (96.5/3/0.5)
Diameter	0.05 in
Diameter	1.27 mm
Flux Type	Water Soluble
Form	Spool, 1 lb (454 g)
Melting Point [Max]	218 °C
Melting Point [Max]	424 °F
Melting Point [Min]	217 °C
Melting Point [Min]	423 °F
Shelf Life	36 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	10 °C
Type	Wire Solder
Weight	453.59 g
Weight	1 lbs
Wire Gauge	18 SWG, 16 AWG

24-7068 Series

Part	Form	Weight	Weight	Melting Point [Min]	Melting Point [Min]	Melting Point [Max]	Melting Point [Max]	Wire Gauge	Diameter	Diameter	Shelf Life Start	Composition	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shelf Life	Type	Flux Type	Wire Gauge	Diameter [diameter]	Diameter [diameter]
Kester Solder 24-7068-7606	Spool 1 lb (454 g)	453.59 g	1 lbs	217 °C	423 °F	218 °C	424 °F	16 AWG 18 SWG	0.05 in	1.27 mm	Date of Manufacture	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	10 °C	40 °C	36 Months	Wire Solder	No-Clean
Kester Solder 24-7068-1407	Spool 1 lb (454 g)			217 °C	423 °F	218 °C	424 °F					Sn96.5Ag3Cu0.5 (96.5/3/0.5)	10 °C	40 °C		Wire Solder	Rosin Activated (RA)	27 AWG 28 SWG	0.015 in	0.38 mm
Kester Solder 24-7068-6403	Spool 1 lb (454 g)	453.59 g	1 lbs	217 °C	423 °F	218 °C	424 °F	20 AWG 22 SWG			Date of Manufacture	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	10 °C	40 °C	36 Months	Wire Solder	Water Soluble
Kester Solder 24-7068-1401	Spool 1 lb (454 g)	453.59 g	1 lbs	217 °C	423 °F	218 °C	424 °F					Sn96.5Ag3Cu0.5 (96.5/3/0.5)	10 °C	40 °C		Wire Solder	Rosin Activated (RA)	24 AWG 25 mmý	0.02 in	0.51 mm
Kester Solder 24-7068-7608	Spool 1 lb (454 g)			217 °C	423 °F	218 °C	424 °F				Date of Manufacture	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	10 °C	40 °C	36 Months	Wire Solder	No-Clean	27 AWG 28 SWG	0.015 in	0.38 mm
Kester Solder 24-7068-8846	Spool 1 lb (454 g)			217 °C	423 °F	218 °C	424 °F					Sn96.5Ag3Cu0.5 (96.5/3/0.5)	10 °C	40 °C		Wire Solder	No-Clean	18 AWG 19 SWG	0.04 in	1.02 mm
Kester Solder 24-7068-6409	Spool 1 lb (454 g)	453.59 g	1 lbs	217 °C	423 °F	218 °C	424 °F	16 AWG 18 SWG	0.05 in	1.27 mm	Date of Manufacture	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	10 °C	40 °C	36 Months	Wire Solder	Water Soluble
Kester Solder 24-7068-1400	Spool 1 lb (454 g)	453.59 g	1 lbs	217 °C	423 °F	218 °C	424 °F				Date of Manufacture	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	10 °C	40 °C	36 Months	Wire Solder	Rosin Activated (RA)	13.5 AWG 16 SWG	0.062 in	1.57 mm
Kester Solder 24-7068-7601	Spool 1 lb (454 g)	453.59 g	1 lbs	217 °C	423 °F	218 °C	424 °F	20 AWG 22 SWG			Date of Manufacture	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	10 °C	40 °C	36 Months	Wire Solder	No-Clean
Kester Solder 24-7068-1404	Spool 1 lb (454 g)	453.59 g	1 lbs	217 °C	423 °F	218 °C	424 °F	16 AWG 18 SWG	0.05 in	1.27 mm	Date of Manufacture	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	10 °C	40 °C	36 Months	Wire Solder	Rosin Activated (RA)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 140.69
		5	$ 121.07
		10	$ 113.46
		25	$ 104.10
		50	$ 97.50
		100	$ 91.29

Description

General part information

24-7068 Series

Lead Free Water Soluble Wire Solder Sn96.5Ag3Cu0.5 (96.5/3/0.5) 16 AWG, 18 SWG Spool, 1 lb (454 g)
