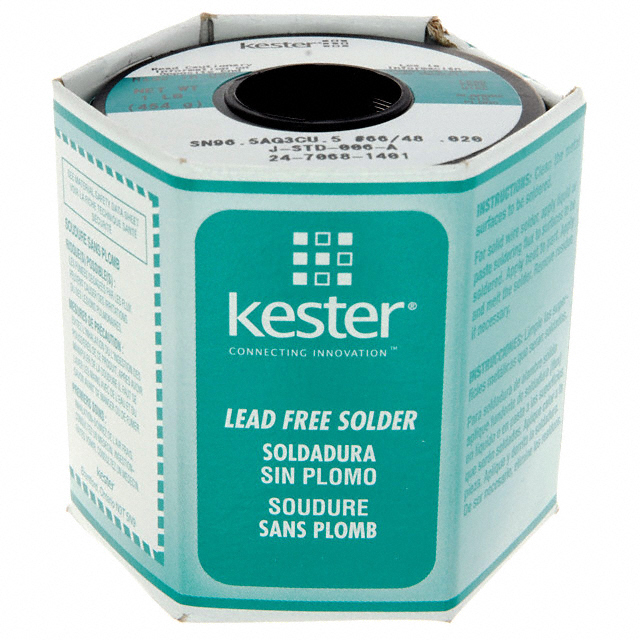

24-7068-1401
ActiveKester Solder
SOLDER RA .020" 24AWG 1LB
Deep-Dive with AI
Search across all available documentation for this part.
24-7068-1401
ActiveKester Solder
SOLDER RA .020" 24AWG 1LB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 24-7068-1401 |
|---|---|
| Composition | Sn96.5Ag3Cu0.5 (96.5/3/0.5) |
| Diameter [diameter] | 0.51 mm |
| Diameter [diameter] | 0.02 in |
| Flux Type | Rosin Activated (RA) |
| Form | Spool, 1 lb (454 g) |
| Melting Point [Max] | 218 °C |
| Melting Point [Max] | 424 °F |
| Melting Point [Min] | 217 °C |
| Melting Point [Min] | 423 °F |
| Storage/Refrigeration Temperature [Max] | 40 °C |
| Storage/Refrigeration Temperature [Min] | 10 °C |
| Type | Wire Solder |
| Weight | 453.59 g |
| Weight | 1 lbs |
| Wire Gauge | 24 AWG, 25 mmý |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 129.50 | |
| 5 | $ 111.45 | |||
| 10 | $ 104.45 | |||
| 25 | $ 95.83 | |||
| 50 | $ 89.76 | |||
| 100 | $ 84.06 | |||
Description
General part information
24-7068 Series
Lead Free Rosin Activated (RA) Wire Solder Sn96.5Ag3Cu0.5 (96.5/3/0.5) 24 AWG, 25 SWG Spool, 1 lb (454 g)
