XHP50A-00-0000-0D0BJ450E-SB01

New Energy

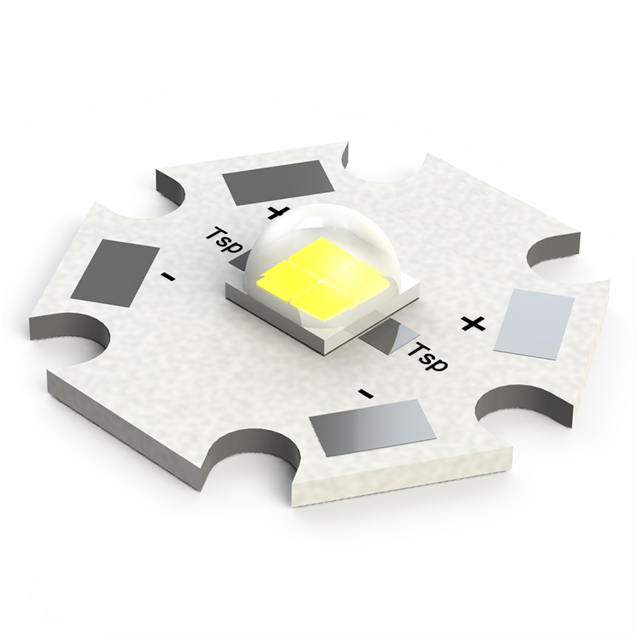

LED MOD XLAMP WH STARBOARD 5000K

Search across all available documentation for this part.

New Energy

LED MOD XLAMP WH STARBOARD 5000K

Technical Specifications

Parameters and characteristics for this part

Specification	XHP50A-00-0000-0D0BJ450E-SB01

CCT (K)	5000 K
CCT (K)	5-Step MacAdam Ellipse
Color	Cool, White
Configuration	Starboard
CRI (Color Rendering Index)	70
Current - Max	1.5 A, 3 A
Current - Test	1.4 A, 700 mA
Lens Type	Domed
Lumens/Watt @ Current - Test	72 lm/W
Luminous Flux @ Current/Temperature	1160 lm
Size / Dimension [diameter]	19.89 mm
Temperature - Test	85 °C
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	6 V, 12 V

Part	Type	Temperature - Test	CRI (Color Rendering Index)	Configuration	Lens Type	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	CCT (K)	Voltage - Forward (Vf) (Typ)	Color	Viewing Angle	Current - Test	Current - Max	CCT (K)	Size / Dimension [diameter]
New Energy XHP50A-0S-01-0D0HJ250G	LED Module	85 °C	80	Square	Domed
New Energy XHP50A-0L-02-0D0HJ20E2	LED Module	85 °C	80	Linear Light Strip	Domed
New Energy XHP50A-0L-03-0D0HH430G	LED Module	85 °C	80	Linear Light Strip	Domed
New Energy XHP50A-0S-01-0D0BJ440E	LED Module	85 °C	70	Square	Domed	36.83 mm	36.83 mm	1.5 A	1120 lm	139 lm/W	4000 K	11.5 V	Neutral White
New Energy XHP50A-0S-04-0D0HJ20E2	LED Module	85 °C	80	Square	Domed
New Energy XHP50A-00-0000-0D0BJ450E-SB01	LED Module	85 °C	70	Starboard	Domed				1160 lm	72 lm/W	5000 K	6 V 12 V	Cool White	120 °	1.4 A 700 mA	1.5 A 3 A	5-Step MacAdam Ellipse	19.89 mm
New Energy XHP50A-0L-04-0D0HH227G	LED Module	85 °C	80	Linear Light Strip	Domed	1.3 in	6.7 in	1.5 A	3600 lm	112 lm/W	2700 K	46 V	Warm White
New Energy XHP50A-0S-01-0D0BJ40E2	LED Module	85 °C	70	Square	Domed	36.83 mm	36.83 mm	1.5 A	1120 lm	139 lm/W	5700 K	11.5 V	Cool White
New Energy XHP50A-0L-04-0D0BH430E	LED Module	85 °C	70	Linear Light Strip	Domed	1.3 in	6.7 in	1.5 A	3880 lm	121 lm/W	3000 K	46 V	Warm White
New Energy XHP50A-0S-01-0D0HH227G	LED Module	85 °C	80	Square	Domed	36.83 mm	36.83 mm	1.5 A	900 lm	112 lm/W	2700 K	11.5 V	Warm White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module Xlamp® XHP50 White, Cool Starboard
