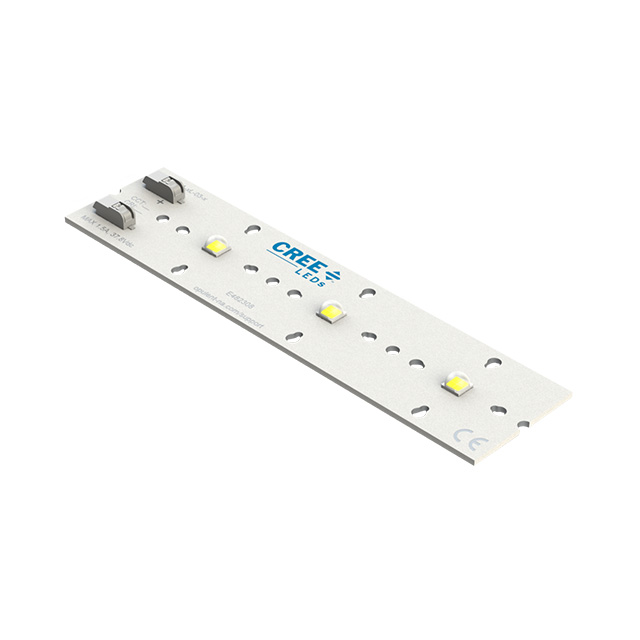

XHP50A-0L-03-0D0HH430G

New Energy

LED MOD XHP50 LNR LGT STRIP

Search across all available documentation for this part.

New Energy

LED MOD XHP50 LNR LGT STRIP

Technical Specifications

Parameters and characteristics for this part

Part	Type	Temperature - Test	CRI (Color Rendering Index)	Configuration	Lens Type	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	CCT (K)	Voltage - Forward (Vf) (Typ)	Color	Viewing Angle	Current - Test	Current - Max	CCT (K)	Size / Dimension [diameter]
New Energy XHP50A-0S-01-0D0HJ250G	LED Module	85 °C	80	Square	Domed
New Energy XHP50A-0L-02-0D0HJ20E2	LED Module	85 °C	80	Linear Light Strip	Domed
New Energy XHP50A-0L-03-0D0HH430G	LED Module	85 °C	80	Linear Light Strip	Domed
New Energy XHP50A-0S-01-0D0BJ440E	LED Module	85 °C	70	Square	Domed	36.83 mm	36.83 mm	1.5 A	1120 lm	139 lm/W	4000 K	11.5 V	Neutral White
New Energy XHP50A-0S-04-0D0HJ20E2	LED Module	85 °C	80	Square	Domed
New Energy XHP50A-00-0000-0D0BJ450E-SB01	LED Module	85 °C	70	Starboard	Domed				1160 lm	72 lm/W	5000 K	6 V 12 V	Cool White	120 °	1.4 A 700 mA	1.5 A 3 A	5-Step MacAdam Ellipse	19.89 mm
New Energy XHP50A-0L-04-0D0HH227G	LED Module	85 °C	80	Linear Light Strip	Domed	1.3 in	6.7 in	1.5 A	3600 lm	112 lm/W	2700 K	46 V	Warm White
New Energy XHP50A-0S-01-0D0BJ40E2	LED Module	85 °C	70	Square	Domed	36.83 mm	36.83 mm	1.5 A	1120 lm	139 lm/W	5700 K	11.5 V	Cool White
New Energy XHP50A-0L-04-0D0BH430E	LED Module	85 °C	70	Linear Light Strip	Domed	1.3 in	6.7 in	1.5 A	3880 lm	121 lm/W	3000 K	46 V	Warm White
New Energy XHP50A-0S-01-0D0HH227G	LED Module	85 °C	80	Square	Domed	36.83 mm	36.83 mm	1.5 A	900 lm	112 lm/W	2700 K	11.5 V	Warm White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 17.02

General part information

LED Lighting COBs Engines Modules LED Module XHP50 Linear Light Strip

Technical documentation and resources
