AQZ207

Active

Panasonic Electric Works

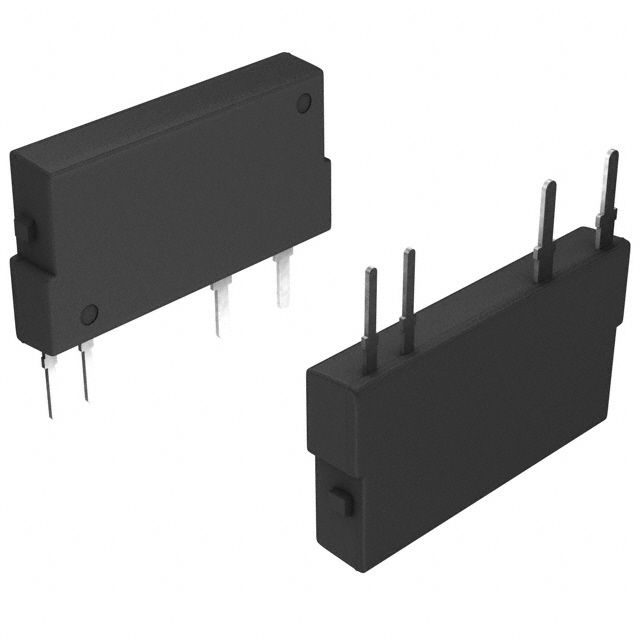

SSR RELAY SPST-NO 1A 0-200V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes

AQZ207

Active

Panasonic Electric Works

SSR RELAY SPST-NO 1A 0-200V

Deep-Dive with AI

DocumentsHow to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AQZ207

Approval Agency	VDE, UR
Load Current	1 A
Mounting Type	Through Hole
On-State Resistance (Max) [Max]	1.1 Ohms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	DC, AC
Package / Case	4-SIP
Supplier Device Package	4-SIL
Termination Style	PC Pin
Voltage - Input	1.16 VDC
Voltage - Load [Max]	200 V
Voltage - Load [Min]	0 V

- Series

Part	Coil Current	Contact Rating (Current)	Must Operate Voltage	Mounting Type	Coil Type	Release Time	Termination Style	Approval Agency	Relay Type	Coil Voltage	Switching Voltage	Load - Max Switching	Coil Resistance	Must Release Voltage	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Seal Rating	Operate Time	Package / Case	Package / Case	Package / Case	Load Current	Output Type	Voltage - Load [Min]	Voltage - Load [Max]	Supplier Device Package	Voltage - Input	On-State Resistance (Max) [Max]	Load - Max Switching [Max]	Circuit	Package / Case
Panasonic Electric Works TXD2-5V	40 mA	2 A	3.75 VDC	Through Hole	Non Latching	4 ms	PC Pin	BSI cURus	General Purpose	5 VDC	220 VDC	440 W	125 Ohms	0.5 VDC	DPDT (2 Form C)	85 °C	-40 °C	Gold (Au) Silver (Ag)	Sealed - Fully	4 ms
Panasonic Electric Works AQV252				Through Hole			PC Pin									85 °C	-40 °C				6-DIP	0.3 in	7.62 mm	400 mA	AC DC	0 V	60 V	6-DIP	1.14 VDC	1.4 Ohms
Panasonic Electric Works AQY274				Through Hole			PC Pin	BSI cURus								85 °C	-40 °C				4-DIP			350 mA	AC DC			4-DIP	1.16 VDC	3.2 Ohms
Panasonic Electric Works AQY272				Through Hole			PC Pin	BSI cURus								85 °C	-40 °C				4-DIP			2 A	AC DC	0 V	60 V	4-DIP	1.16 VDC	180 mOhms
Panasonic Electric Works ALD14H	44.6 mA	3 A	3.38 VDC	Through Hole	Non Latching	10 ms	PC Pin	CSA TUV UR VDE	General Purpose	4.5 VDC	30 VDC 277 VAC	90 W 831 VA	101 Ohms	0.22 VDC	SPST-NO (1 Form A)	70 °C	-40 °C	Silver Nickel (AgNi)		10 ms
Panasonic Electric Works TQ4-5V	56.2 mA	1 A	3.75 VDC	Through Hole	Non Latching	3 ms	PC Pin	CSA UR	Telecom	5 VDC	110 VDC 125 VAC	110 W 125 VA	89 Ohms	0.5 VDC	4PDT (4 Form C)	70 °C	-40 °C	Gold (Au) Silver (Ag)		3 ms
Panasonic Electric Works HY1-9V	16.7 mA	1 A	6.75 VDC	Through Hole	Non Latching	4 ms	PC Pin	CSA UR	Telecom	9 VDC	60 VDC			0.9 VDC	SPDT (1 Form C)	70 °C	-40 °C	Gold (Au) Silver (Ag)	Sealed - Fully	5 ms											60 W
Panasonic Electric Works AQZ207				Through Hole			PC Pin	UR VDE								85 °C	-40 °C				4-SIP			1 A	AC DC	0 V	200 V	4-SIL	1.16 VDC	1.1 Ohms
Panasonic Electric Works AQW274				Through Hole			PC Pin	UR VDE								85 °C	-40 °C				8-DIP	10.16 mm	10.16 mm	300 mA	AC DC			8-DIP	1.16 VDC	3.2 Ohms		SPST-NO (1 Form A) x 2
Panasonic Electric Works AQW254				Through Hole			PC Pin	UR VDE								85 °C	-40 °C				8-DIP		0.3 in	120 mA	AC DC			8-DIP	1.14 VDC			SPST-NO (1 Form A) x 2	7.62 mm
