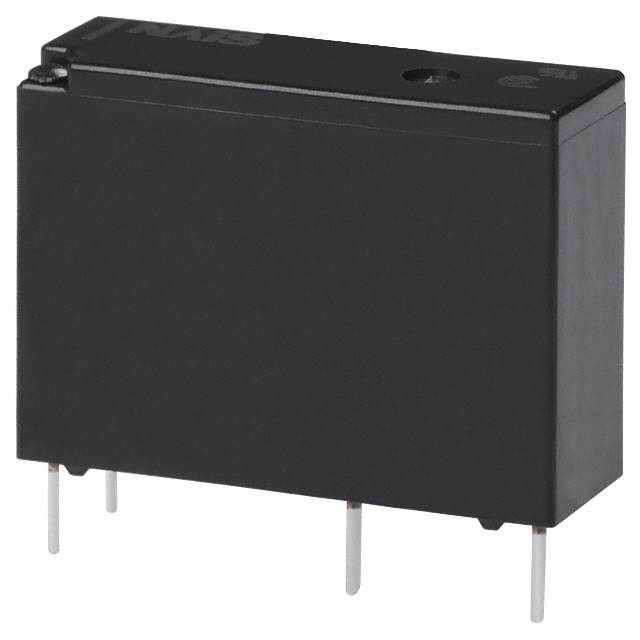

ALD14H

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPST 3A 4.5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet +1

ALD14H

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPST 3A 4.5V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALD14H

Approval Agency	TUV, VDE, CSA, UR
Coil Current	44.6 mA
Coil Resistance	101 Ohms
Coil Type	Non Latching
Coil Voltage	4.5 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	3 A
Load - Max Switching	831 VA, 90 W
Mounting Type	Through Hole
Must Operate Voltage	3.38 VDC
Must Release Voltage	0.22 VDC
Operate Time	10 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	277 VAC, 30 VDC
Termination Style	PC Pin

- Series

Part	Coil Current	Contact Rating (Current)	Must Operate Voltage	Mounting Type	Coil Type	Release Time	Termination Style	Approval Agency	Relay Type	Coil Voltage	Switching Voltage	Load - Max Switching	Coil Resistance	Must Release Voltage	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Seal Rating	Operate Time	Package / Case	Package / Case	Package / Case	Load Current	Output Type	Voltage - Load [Min]	Voltage - Load [Max]	Supplier Device Package	Voltage - Input	On-State Resistance (Max) [Max]	Load - Max Switching [Max]	Circuit	Package / Case
Panasonic Electric Works TXD2-5V	40 mA	2 A	3.75 VDC	Through Hole	Non Latching	4 ms	PC Pin	BSI cURus	General Purpose	5 VDC	220 VDC	440 W	125 Ohms	0.5 VDC	DPDT (2 Form C)	85 °C	-40 °C	Gold (Au) Silver (Ag)	Sealed - Fully	4 ms
Panasonic Electric Works AQV252				Through Hole			PC Pin									85 °C	-40 °C				6-DIP	0.3 in	7.62 mm	400 mA	AC DC	0 V	60 V	6-DIP	1.14 VDC	1.4 Ohms
Panasonic Electric Works AQY274				Through Hole			PC Pin	BSI cURus								85 °C	-40 °C				4-DIP			350 mA	AC DC			4-DIP	1.16 VDC	3.2 Ohms
Panasonic Electric Works AQY272				Through Hole			PC Pin	BSI cURus								85 °C	-40 °C				4-DIP			2 A	AC DC	0 V	60 V	4-DIP	1.16 VDC	180 mOhms
Panasonic Electric Works ALD14H	44.6 mA	3 A	3.38 VDC	Through Hole	Non Latching	10 ms	PC Pin	CSA TUV UR VDE	General Purpose	4.5 VDC	30 VDC 277 VAC	90 W 831 VA	101 Ohms	0.22 VDC	SPST-NO (1 Form A)	70 °C	-40 °C	Silver Nickel (AgNi)		10 ms
Panasonic Electric Works TQ4-5V	56.2 mA	1 A	3.75 VDC	Through Hole	Non Latching	3 ms	PC Pin	CSA UR	Telecom	5 VDC	110 VDC 125 VAC	110 W 125 VA	89 Ohms	0.5 VDC	4PDT (4 Form C)	70 °C	-40 °C	Gold (Au) Silver (Ag)		3 ms
Panasonic Electric Works HY1-9V	16.7 mA	1 A	6.75 VDC	Through Hole	Non Latching	4 ms	PC Pin	CSA UR	Telecom	9 VDC	60 VDC			0.9 VDC	SPDT (1 Form C)	70 °C	-40 °C	Gold (Au) Silver (Ag)	Sealed - Fully	5 ms											60 W
Panasonic Electric Works AQZ207				Through Hole			PC Pin	UR VDE								85 °C	-40 °C				4-SIP			1 A	AC DC	0 V	200 V	4-SIL	1.16 VDC	1.1 Ohms
Panasonic Electric Works AQW274				Through Hole			PC Pin	UR VDE								85 °C	-40 °C				8-DIP	10.16 mm	10.16 mm	300 mA	AC DC			8-DIP	1.16 VDC	3.2 Ohms		SPST-NO (1 Form A) x 2
Panasonic Electric Works AQW254				Through Hole			PC Pin	UR VDE								85 °C	-40 °C				8-DIP		0.3 in	120 mA	AC DC			8-DIP	1.14 VDC			SPST-NO (1 Form A) x 2	7.62 mm
