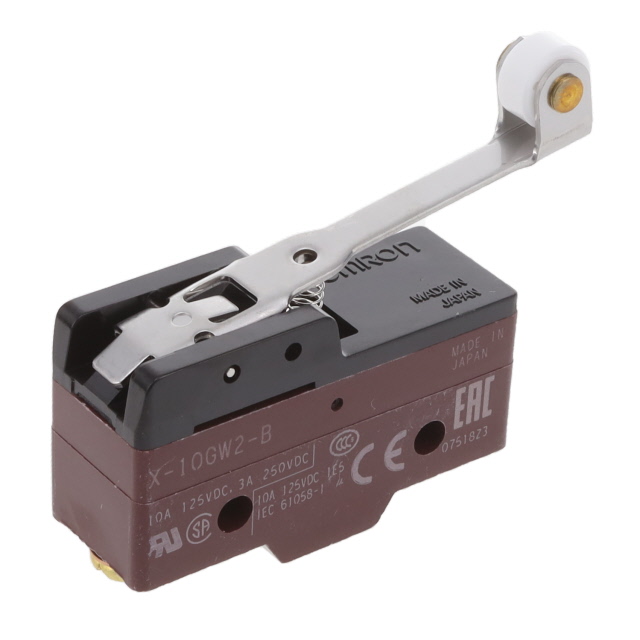

X-10GW2-B

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 10A 30V

Deep-Dive with AI

Search across all available documentation for this part.

X-10GW2-B

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 10A 30V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	X-10GW2-B

Actuator Type	Roller, Lever
Circuit	SPDT
Current Rating (Amps)	10 A
Differential Travel	3 mm
Differential Travel	0.118 "
Electrical Life	100000 Cycles
Ingress Protection	IP00
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force	145 gf
Operating Position	1.266 "
Operating Position	32.2 mm
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Overtravel	4 mm
Overtravel	0.158 in
Release Force	21 gf
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - DC	30 V

X-10G Series

Part	Release Force	Mechanical Life	Circuit	Termination Style	Operating Position	Operating Position	Voltage Rating - DC	Differential Travel	Differential Travel	Electrical Life	Current Rating (Amps)	Ingress Protection	Switch Function	Operating Force	Actuator Type	Pretravel	Pretravel	Overtravel	Overtravel	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
Omron Electronics Inc-EMC Div X-10GQ22	114 gf	1000000 Cycles	SPDT	Solder Lug	33.4 mm	1.313 in	30 V	0.007 in	0.18 mm	100000 Cycles	10 A	IP00	On-Mom	510 gf	Roller Plunger	0.9 mm	0.035 in	3.6 mm	0.141 in	-25 °C	80 C
Omron Electronics Inc-EMC Div X-10GW2-B	21 gf	1000000 Cycles	SPDT	Screw Terminal	32.2 mm	1.266 "	30 V	0.118 "	3 mm	100000 Cycles	10 A	IP00	On-Mom	145 gf	Lever Roller			4 mm	0.158 in	-25 °C	80 C	Chassis Mount
Omron Electronics Inc-EMC Div X-10GQ	114 gf	1000000 Cycles	SPDT	Solder Lug	21.8 mm	0.859 in	30 V	0.007 in	0.18 mm	100000 Cycles	10 A	IP00	On-Mom	510 gf	Round (Pin Plunger)	0.9 mm	0.035 in	5.5 mm	0.217 "	-25 °C	80 C
Omron Electronics Inc-EMC Div X-10GW21-B	32 gf	1000000 Cycles	SPDT	Screw Terminal	20.7 mm	0.815 in	30 V	0.065 in	1.7 mm	100000 Cycles	10 A	IP00	On-Mom	0.25 kgf	Lever Straight			2.1 mm	0.083 in	-25 °C	80 C	Chassis Mount
Omron Electronics Inc-EMC Div X-10GW22-B	35 gf	1000000 Cycles	SPDT	Screw Terminal	32.2 mm	1.266 "	30 V	0.065 in	1.7 mm	100000 Cycles	10 A	IP00	On-Mom	220 gf	Lever Roller			2.4 mm	0.094 in	-25 °C	80 C	Chassis Mount
Omron Electronics Inc-EMC Div X-10GM	25 gf	1000000 Cycles	SPDT	Solder Lug	21.1 mm	0.831 in	30 V	0.083 in	2.1 mm	100000 Cycles	10 A	IP00	On-Mom	220 gf	Lever Straight			5.5 mm	0.217 "	-25 °C	80 C	Chassis Mount
Omron Electronics Inc-EMC Div X-10GD	114 gf	1000000 Cycles	SPDT	Solder Lug	21.2 mm	0.835 in	30 V	0.007 in	0.18 mm	100000 Cycles	10 A	IP00	On-Mom	510 gf	Round (Pin Plunger)	0.9 mm	0.035 in	1.6 mm	0.062 in	-25 °C	80 C	Chassis Mount
Omron Electronics Inc-EMC Div X-10GM-B	25 gf	1000000 Cycles	SPDT	Screw Terminal	21.1 mm	0.831 in	30 V	0.083 in	2.1 mm	100000 Cycles	10 A	IP00	On-Mom	220 gf	Lever Straight			5.5 mm	0.217 "	-25 °C	80 C	Chassis Mount
Omron Electronics Inc-EMC Div X-10GQ22-B	114 gf	1000000 Cycles	SPDT	Screw Terminal	33.4 mm	1.313 in	30 V	0.007 in	0.18 mm	100000 Cycles	10 A	IP00	On-Mom	510 gf	Roller Plunger	0.9 mm	0.035 in	3.6 mm	0.141 in	-25 °C	80 C
Omron Electronics Inc-EMC Div X-10GM2-B	50 gf	1000000 Cycles	SPDT	Screw Terminal	32.2 mm	1.266 "	30 V	0.06 "	1.5 mm	100000 Cycles	10 A	IP00	On-Mom	320 gf	Lever Roller			4 mm	0.158 in	-25 °C	80 C	Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 32.93
		10	$ 24.70
		25	$ 22.64
		40	$ 21.27
		80	$ 19.90
		230	$ 19.21
		440	$ 18.52

Description

General part information

X-10G Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

No documents available
