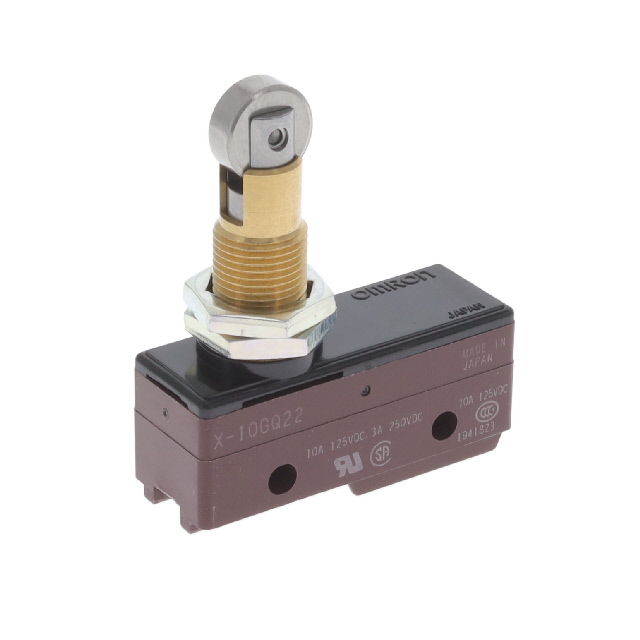

X-10GQ22

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 10A 30V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	X-10GQ22

Actuator Type	Roller Plunger
Circuit	SPDT
Current Rating (Amps)	10 A
Differential Travel	0.007 in
Differential Travel	0.18 mm
Electrical Life	100000 Cycles
Ingress Protection	IP00
Mechanical Life	1000000 Cycles
Operating Force	510 gf
Operating Position	33.4 mm
Operating Position	1.313 in
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Overtravel	3.6 mm
Overtravel	0.141 in
Pretravel	0.9 mm
Pretravel	0.035 in
Release Force	114 gf
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - DC	30 V

X-10G Series

Part	Release Force	Mechanical Life	Circuit	Termination Style	Operating Position	Operating Position	Voltage Rating - DC	Differential Travel	Differential Travel	Electrical Life	Current Rating (Amps)	Ingress Protection	Switch Function	Operating Force	Actuator Type	Pretravel	Pretravel	Overtravel	Overtravel	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
Omron Electronics Inc-EMC Div X-10GQ22	114 gf	1000000 Cycles	SPDT	Solder Lug	33.4 mm	1.313 in	30 V	0.007 in	0.18 mm	100000 Cycles	10 A	IP00	On-Mom	510 gf	Roller Plunger	0.9 mm	0.035 in	3.6 mm	0.141 in	-25 °C	80 C
Omron Electronics Inc-EMC Div X-10GW2-B	21 gf	1000000 Cycles	SPDT	Screw Terminal	32.2 mm	1.266 "	30 V	0.118 "	3 mm	100000 Cycles	10 A	IP00	On-Mom	145 gf	Lever Roller			4 mm	0.158 in	-25 °C	80 C	Chassis Mount
Omron Electronics Inc-EMC Div X-10GQ	114 gf	1000000 Cycles	SPDT	Solder Lug	21.8 mm	0.859 in	30 V	0.007 in	0.18 mm	100000 Cycles	10 A	IP00	On-Mom	510 gf	Round (Pin Plunger)	0.9 mm	0.035 in	5.5 mm	0.217 "	-25 °C	80 C
Omron Electronics Inc-EMC Div X-10GW21-B	32 gf	1000000 Cycles	SPDT	Screw Terminal	20.7 mm	0.815 in	30 V	0.065 in	1.7 mm	100000 Cycles	10 A	IP00	On-Mom	0.25 kgf	Lever Straight			2.1 mm	0.083 in	-25 °C	80 C	Chassis Mount
Omron Electronics Inc-EMC Div X-10GW22-B	35 gf	1000000 Cycles	SPDT	Screw Terminal	32.2 mm	1.266 "	30 V	0.065 in	1.7 mm	100000 Cycles	10 A	IP00	On-Mom	220 gf	Lever Roller			2.4 mm	0.094 in	-25 °C	80 C	Chassis Mount
Omron Electronics Inc-EMC Div X-10GM	25 gf	1000000 Cycles	SPDT	Solder Lug	21.1 mm	0.831 in	30 V	0.083 in	2.1 mm	100000 Cycles	10 A	IP00	On-Mom	220 gf	Lever Straight			5.5 mm	0.217 "	-25 °C	80 C	Chassis Mount
Omron Electronics Inc-EMC Div X-10GD	114 gf	1000000 Cycles	SPDT	Solder Lug	21.2 mm	0.835 in	30 V	0.007 in	0.18 mm	100000 Cycles	10 A	IP00	On-Mom	510 gf	Round (Pin Plunger)	0.9 mm	0.035 in	1.6 mm	0.062 in	-25 °C	80 C	Chassis Mount
Omron Electronics Inc-EMC Div X-10GM-B	25 gf	1000000 Cycles	SPDT	Screw Terminal	21.1 mm	0.831 in	30 V	0.083 in	2.1 mm	100000 Cycles	10 A	IP00	On-Mom	220 gf	Lever Straight			5.5 mm	0.217 "	-25 °C	80 C	Chassis Mount
Omron Electronics Inc-EMC Div X-10GQ22-B	114 gf	1000000 Cycles	SPDT	Screw Terminal	33.4 mm	1.313 in	30 V	0.007 in	0.18 mm	100000 Cycles	10 A	IP00	On-Mom	510 gf	Roller Plunger	0.9 mm	0.035 in	3.6 mm	0.141 in	-25 °C	80 C
Omron Electronics Inc-EMC Div X-10GM2-B	50 gf	1000000 Cycles	SPDT	Screw Terminal	32.2 mm	1.266 "	30 V	0.06 "	1.5 mm	100000 Cycles	10 A	IP00	On-Mom	320 gf	Lever Roller			4 mm	0.158 in	-25 °C	80 C	Chassis Mount
