LHB-06-SA2

Active

Adam Tech

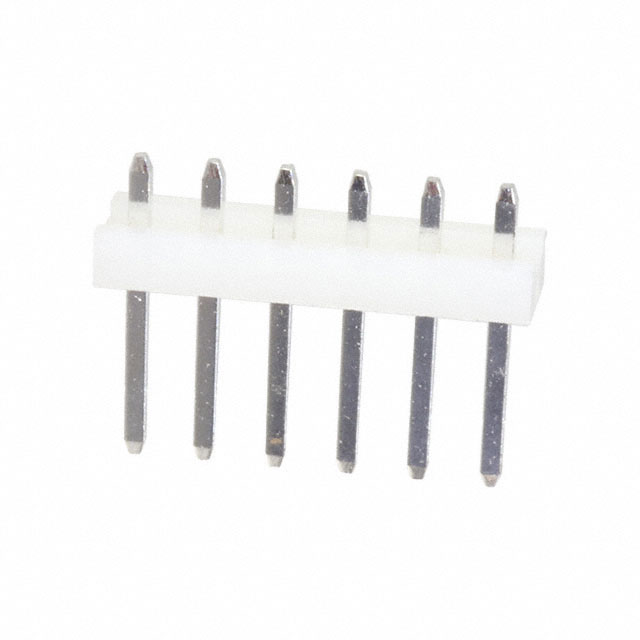

CONN HEADER VERT 6POS 3.96MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER VERT 6POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHB-06-SA2

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating [x]	0.413 "
Contact Length - Mating [x]	10.5 mm
Contact Length - Post [x]	0.15 in
Contact Length - Post [x]	3.81 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Insulation Color	White
Insulation Height	3.2 mm
Insulation Height	0.126 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Overall Contact Length	0.689 ", 17.5 mm
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	250 VAC

Part	Mounting Type	Current Rating (Amps)	Fastening Type	Material Flammability Rating	Insulation Material	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Number of Positions	Shrouding	Pitch - Mating	Pitch - Mating	Style	Contact Length - Post [x]	Contact Length - Post [x]	Voltage Rating	Insulation Color	Contact Type	Connector Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Shape	Contact Finish - Post	Termination	Insulation Height	Insulation Height	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Mating [x]	Overall Contact Length	Contact Length - Post	Contact Length - Post
Adam Tech LHB-06-SB1	Through Hole Right Angle	5 A	Friction Lock	UL94 V-2	Polyamide (PA66) Nylon 6/6	All	0.445 in	11.3 mm	6	Shrouded - 1 Wall	0.156 in	3.96 mm	Board to Cable/Wire	0.134 in	3.4 mm	250 VAC	White	Male Pin	Header	1	-25 °C	85 °C	Brass	Square	Tin	Solder
Adam Tech LHB-06-SA2	Through Hole	7 A	Push-Pull	UL94 V-2	Polyamide (PA66) Nylon 6/6	All			6	Unshrouded	0.156 in	3.96 mm		0.15 in	3.81 mm	250 VAC	White	Male Pin	Header	1	-25 °C	105 ░C	Brass	Square	Tin	Solder	3.2 mm	0.126 in	0.689 " 17.5 mm	0.413 "	10.5 mm
Adam Tech LHB-06-SA1	Through Hole	5 A	Friction Lock	UL94 V-2	Polyamide (PA66) Nylon 6/6	All	0.041 in	1.04 mm	6	Shrouded - 1 Wall	0.156 in	3.96 mm	Board to Cable/Wire			250 VAC	White	Male Pin	Header	1	-25 °C	85 °C	Brass	Square	Tin	Solder	12.8 mm	0.504 in	17.53 mm			0.69 in	0.145 in	3.68 mm
