LHB-06-SB1

Active

Adam Tech

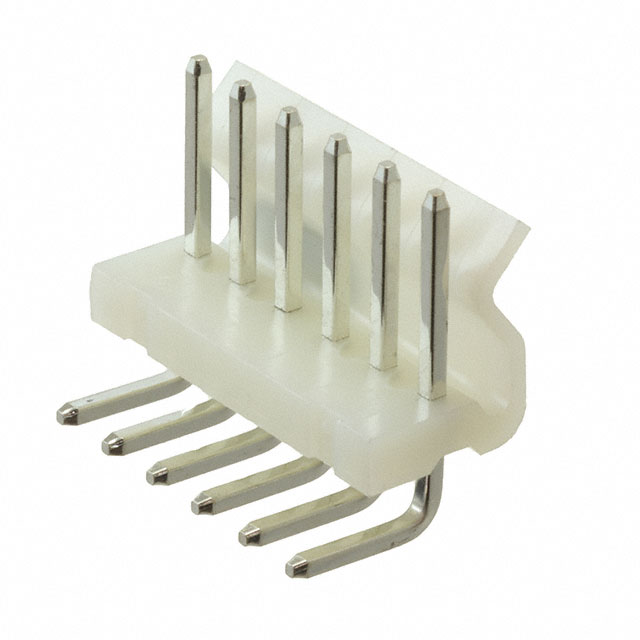

CONN HEADER R/A 6POS 3.96MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER R/A 6POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHB-06-SB1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.445 in
Contact Length - Mating	11.3 mm
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Mounting Type	Current Rating (Amps)	Fastening Type	Material Flammability Rating	Insulation Material	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Number of Positions	Shrouding	Pitch - Mating	Pitch - Mating	Style	Contact Length - Post [x]	Contact Length - Post [x]	Voltage Rating	Insulation Color	Contact Type	Connector Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Shape	Contact Finish - Post	Termination	Insulation Height	Insulation Height	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Mating [x]	Overall Contact Length	Contact Length - Post	Contact Length - Post
Adam Tech LHB-06-SB1	Through Hole Right Angle	5 A	Friction Lock	UL94 V-2	Polyamide (PA66) Nylon 6/6	All	0.445 in	11.3 mm	6	Shrouded - 1 Wall	0.156 in	3.96 mm	Board to Cable/Wire	0.134 in	3.4 mm	250 VAC	White	Male Pin	Header	1	-25 °C	85 °C	Brass	Square	Tin	Solder
Adam Tech LHB-06-SA2	Through Hole	7 A	Push-Pull	UL94 V-2	Polyamide (PA66) Nylon 6/6	All			6	Unshrouded	0.156 in	3.96 mm		0.15 in	3.81 mm	250 VAC	White	Male Pin	Header	1	-25 °C	105 ░C	Brass	Square	Tin	Solder	3.2 mm	0.126 in	0.689 " 17.5 mm	0.413 "	10.5 mm
Adam Tech LHB-06-SA1	Through Hole	5 A	Friction Lock	UL94 V-2	Polyamide (PA66) Nylon 6/6	All	0.041 in	1.04 mm	6	Shrouded - 1 Wall	0.156 in	3.96 mm	Board to Cable/Wire			250 VAC	White	Male Pin	Header	1	-25 °C	85 °C	Brass	Square	Tin	Solder	12.8 mm	0.504 in	17.53 mm			0.69 in	0.145 in	3.68 mm
