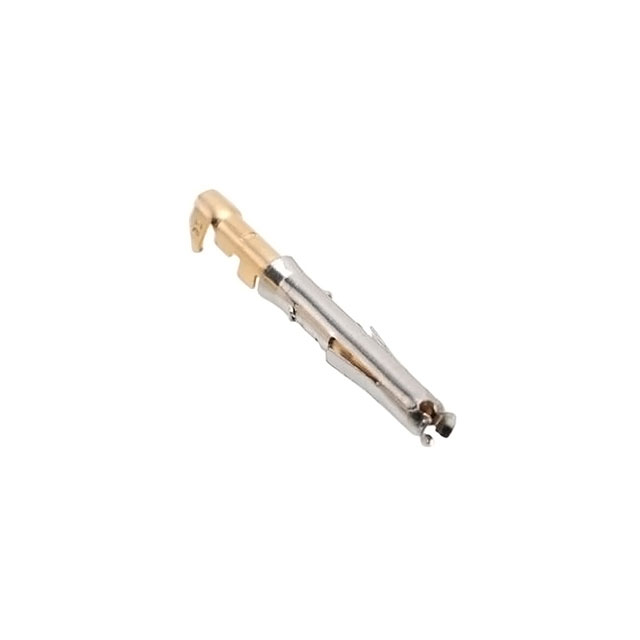

SS28W1F

Obsolete

Amphenol Sine Systems Corp

CONTACT SOCKET 28-30AWG CRIMP

Search across all available documentation for this part.

Obsolete

Amphenol Sine Systems Corp

CONTACT SOCKET 28-30AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Material	Type	Contact Finish	Contact Type	Features	Contact Termination	Termination Finish	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Contact Size	Contact Finish Thickness	Contact Finish Thickness
Amphenol Sine Systems Corp SS28W1F	Flash	Copper Alloy	Signal Stamped	Gold	Socket	Insulation Support	Crimp	Copper Alloy	0.08 mm²	0.05 mm²	20
Amphenol Sine Systems Corp SS28W1T		Copper Alloy	Signal Stamped	Tin	Socket	Insulation Support	Crimp		0.08 mm²	0.05 mm²	20
Amphenol Sine Systems Corp SS28W2T		Copper Alloy	Stamped	Tin	Socket		Crimp	Nickel	0.08 mm²	0.05 mm²	20
Amphenol Sine Systems Corp SS28W1G30		Copper Alloy	Signal Stamped	Gold	Socket	Insulation Support	Crimp		0.08 mm²	0.05 mm²	20	0.76 Ám	30 Áin
Amphenol Sine Systems Corp SS28W1G15		Copper Alloy	Signal Stamped	Gold	Socket	Insulation Support	Crimp		0.08 mm²	0.05 mm²	20	0.38 µm	15 µin
Amphenol Sine Systems Corp SS28W2G5		Copper Alloy	Signal Stamped	Gold	Socket	Insulation Support	Crimp		0.08 mm²	0.05 mm²	20	0.127 µm	5 µin
Amphenol Sine Systems Corp SS28W2G10		Copper Alloy	Signal Stamped	Gold	Socket	Insulation Support	Crimp		0.08 mm²	0.05 mm²	20	0.25 Ám	10 Áin
Amphenol Sine Systems Corp SS28W2F	Flash	Copper Alloy	Signal Stamped	Gold	Socket	Insulation Support	Crimp		0.08 mm²	0.05 mm²	20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Socket Contact 28-30 AWG Size 20 Crimp Gold
