66195-508
ActiveLaird Thermal Systems, Inc.
CP08,127,06,MM,EP W4.5
Deep-Dive with AI
Search across all available documentation for this part.
66195-508
ActiveLaird Thermal Systems, Inc.
CP08,127,06,MM,EP W4.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 66195-508 |
|---|---|
| Current - Max [Max] | 2.1 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Sealed - Epoxy |
| Height [z] | 3.61 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 18.1 W |
| Resistance | 6.31 Ohms |
| Size / Dimension [x] | 24.64 mm |
| Size / Dimension [y] | 24.64 mm |
| Voltage - Max [Max] | 14.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 50.93 | |
| 20 | $ 46.52 | |||
| 100 | $ 42.69 | |||
Description
General part information
66195 Series

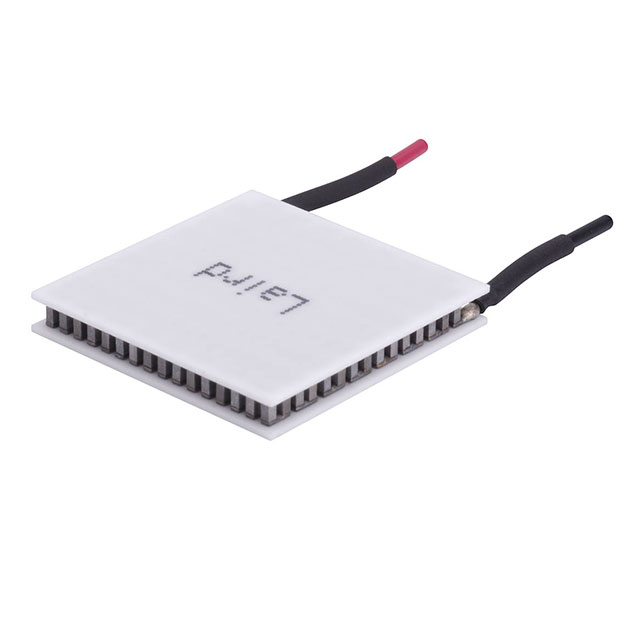

Peltier Module 18.1W @ 25°C 2.1 A 80°C
Documents
Technical documentation and resources
