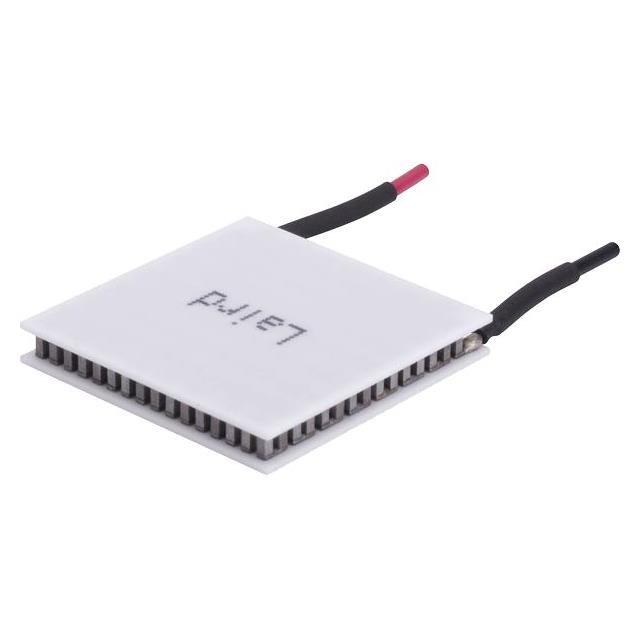

66195-504

Active

Laird Thermal Systems, Inc.

PELTIER CP08,127,06,L1,RT,W4.5

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER CP08,127,06,L1,RT,W4.5

Technical Specifications

Parameters and characteristics for this part

Specification	66195-504

Current - Max [Max]	2.1 A
Delta Tmax @ Th	67 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	3.4 mm
Number of Stages	1
Operating Temperature	80 °C
Qmax @ Th	18.1 W
Resistance	6.31 Ohms
Size / Dimension [x]	24.64 mm
Size / Dimension [y]	24.64 mm
Voltage - Max [Max]	14.4 V

Part	Height [z]	Delta Tmax @ Th	Current - Max [Max]	Features	Qmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Voltage - Max [Max]	Number of Stages	Resistance	Operating Temperature
Laird Thermal Systems, Inc. 66195-508	3.61 mm	67 °C	2.1 A	Lead Wires Sealed - Epoxy	18.1 W	24.64 mm	24.64 mm	14.4 V	1	6.31 Ohms	80 °C
Laird Thermal Systems, Inc. 66195-504	3.4 mm	67 °C	2.1 A	Lead Wires Sealed - Silicone RTV	18.1 W	24.64 mm	24.64 mm	14.4 V	1	6.31 Ohms	80 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 18.1W @ 25°C 2.1 A 80°C
