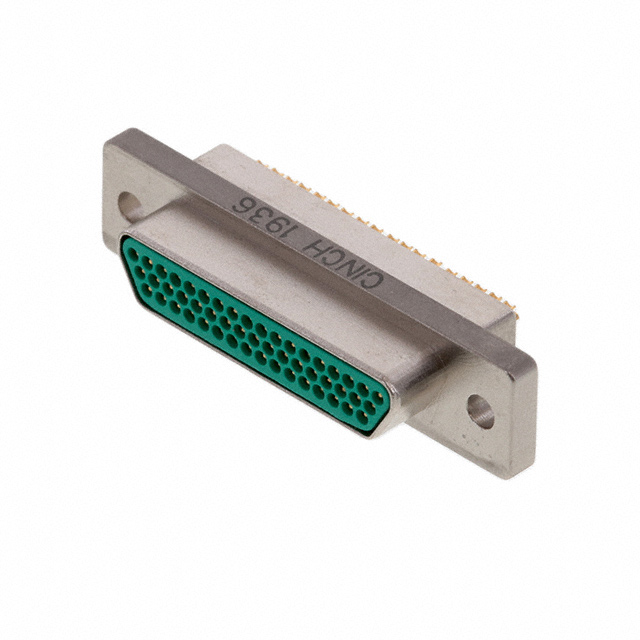

DCCM51PSBN

Active

Cinch Connectivity Solutions Trompeter

CONN MICRO-D PLUG 51POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DCCM51PSBN

Active

Cinch Connectivity Solutions Trompeter

CONN MICRO-D PLUG 51POS PNL MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DCCM51PSBN

Connector Style	Micro-D, D-Type
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Diallyl Phthalate (DAP), Glass Filled
Features	Shielded
Material Flammability Rating	UL94 V-0
Number of Positions	51
Number of Rows	3
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Aluminum Alloy, Electroless
Shell Size, Connector Layout [custom]	0.043
Shell Size, Connector Layout [custom]	0.05

DCCM51 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Current Rating (Amps)	Flange Feature	Number of Positions	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish	Shell Material, Finish	Contact Material	Features	Number of Rows	Connector Type	Dielectric Material	Mounting Type	Termination	Contact Type	Type	2nd Connector	Length [x]	Length [x]	1st Connector	Color	Backset Spacing	Backset Spacing
Cinch Connectivity Solutions Trompeter DCCM51PCBRPN	50 µin	1.27 µm	D-Type Micro-D	3 A	Female Screwlock Mating Side	51	UL94 V-0	135 °C	-55 °C	0.043	0.05	Gold	Aluminum Alloy Electroless Nickel Plated	Copper Alloy	Shielded	3	Male Pins Plug	Diallyl Phthalate (DAP) Glass Filled	Through Hole Right Angle	Solder	Signal
Cinch Connectivity Solutions Trompeter DCCM51PSB	50 µin	1.27 µm	D-Type Micro-D	3 A		51	UL94 V-0	135 °C	-55 °C	0.043	0.05	Gold	Aluminum Alloy Yellow Chromate Plated Cadmium	Copper Alloy	Shielded	3	Male Pins Plug	Diallyl Phthalate (DAP) Glass Filled			Signal
Cinch Connectivity Solutions Trompeter DCCM51PSBN	50 µin	1.27 µm	D-Type Micro-D	3 A		51	UL94 V-0	135 °C	-55 °C	0.043	0.05	Gold	Aluminum Alloy Electroless Nickel Plated	Copper Alloy	Shielded	3	Male Pins Plug	Diallyl Phthalate (DAP) Glass Filled			Signal
Cinch Connectivity Solutions Trompeter DCCM51P6E5-36.0BN	50 µin	1.27 µm				51						Gold										D-Type Micro-D	Individual Wire Leads	3 ft	914.4 mm	Plug Male Pins	Individual Multiple
Cinch Connectivity Solutions Trompeter DCCM51SSBN	50 µin	1.27 µm	D-Type Micro-D	3 A		51	UL94 V-0	135 °C	-55 °C	0.043	0.05	Gold	Aluminum Alloy Electroless Nickel Plated	Copper Alloy	Shielded	3	Receptacle Female Sockets	Diallyl Phthalate (DAP) Glass Filled			Signal
Cinch Connectivity Solutions Trompeter DCCM51PCBRP	50 µin	1.27 µm	D-Type Micro-D	3 A	Female Screwlock Mating Side	51	UL94 V-0	135 °C	-55 °C	0.043	0.05	Gold	Aluminum Alloy Yellow Chromate Plated Cadmium	Copper Alloy	Shielded	3	Male Pins Plug	Diallyl Phthalate (DAP) Glass Filled	Through Hole Right Angle	Solder	Signal							0.15 in	3.81 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 195.03
		10	$ 152.56
		25	$ 139.15
		50	$ 130.12

Description

General part information

DCCM51 Series

51 Position D-Type, Micro-D Plug, Male Pins Connector

Documents

Technical documentation and resources

No documents available
