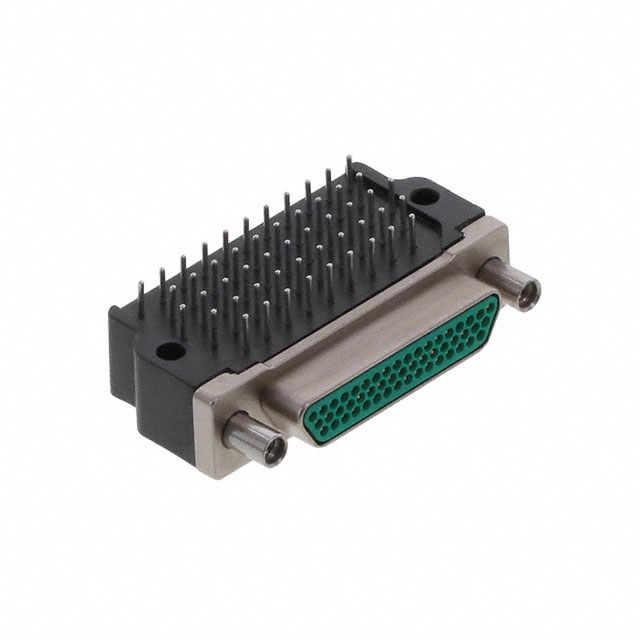

DCCM51PCBRPN
ActiveCinch Connectivity Solutions Trompeter
CONN MICRO-D PLUG 51POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DCCM51PCBRPN
ActiveCinch Connectivity Solutions Trompeter
CONN MICRO-D PLUG 51POS R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DCCM51PCBRPN |
|---|---|
| Connector Style | Micro-D, D-Type |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Diallyl Phthalate (DAP), Glass Filled |
| Features | Shielded |
| Flange Feature | Female Screwlock, Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 51 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 135 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Aluminum Alloy, Electroless |
| Shell Size, Connector Layout [custom] | 0.043 |
| Shell Size, Connector Layout [custom] | 0.05 |
| Termination | Solder |
DCCM51 Series
| Part | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Current Rating (Amps) | Flange Feature | Number of Positions | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish | Shell Material, Finish | Contact Material | Features | Number of Rows | Connector Type | Dielectric Material | Mounting Type | Termination | Contact Type | Type | 2nd Connector | Length [x] | Length [x] | 1st Connector | Color | Backset Spacing | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cinch Connectivity Solutions Trompeter | 50 µin | 1.27 µm | D-Type Micro-D | 3 A | Female Screwlock Mating Side | 51 | UL94 V-0 | 135 °C | -55 °C | 0.043 | 0.05 | Gold | Aluminum Alloy Electroless Nickel Plated | Copper Alloy | Shielded | 3 | Male Pins Plug | Diallyl Phthalate (DAP) Glass Filled | Through Hole Right Angle | Solder | Signal | ||||||||
Cinch Connectivity Solutions Trompeter | 50 µin | 1.27 µm | D-Type Micro-D | 3 A | 51 | UL94 V-0 | 135 °C | -55 °C | 0.043 | 0.05 | Gold | Aluminum Alloy Yellow Chromate Plated Cadmium | Copper Alloy | Shielded | 3 | Male Pins Plug | Diallyl Phthalate (DAP) Glass Filled | Signal | |||||||||||
Cinch Connectivity Solutions Trompeter | 50 µin | 1.27 µm | D-Type Micro-D | 3 A | 51 | UL94 V-0 | 135 °C | -55 °C | 0.043 | 0.05 | Gold | Aluminum Alloy Electroless Nickel Plated | Copper Alloy | Shielded | 3 | Male Pins Plug | Diallyl Phthalate (DAP) Glass Filled | Signal | |||||||||||
Cinch Connectivity Solutions Trompeter | 50 µin | 1.27 µm | 51 | Gold | D-Type Micro-D | Individual Wire Leads | 3 ft | 914.4 mm | Plug Male Pins | Individual Multiple | |||||||||||||||||||
Cinch Connectivity Solutions Trompeter | 50 µin | 1.27 µm | D-Type Micro-D | 3 A | 51 | UL94 V-0 | 135 °C | -55 °C | 0.043 | 0.05 | Gold | Aluminum Alloy Electroless Nickel Plated | Copper Alloy | Shielded | 3 | Receptacle Female Sockets | Diallyl Phthalate (DAP) Glass Filled | Signal | |||||||||||
Cinch Connectivity Solutions Trompeter | 50 µin | 1.27 µm | D-Type Micro-D | 3 A | Female Screwlock Mating Side | 51 | UL94 V-0 | 135 °C | -55 °C | 0.043 | 0.05 | Gold | Aluminum Alloy Yellow Chromate Plated Cadmium | Copper Alloy | Shielded | 3 | Male Pins Plug | Diallyl Phthalate (DAP) Glass Filled | Through Hole Right Angle | Solder | Signal | 0.15 in | 3.81 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 237.83 | |
| 10 | $ 186.34 | |||
| 25 | $ 170.10 | |||
| 50 | $ 159.17 | |||
Description
General part information
DCCM51 Series
51 Position D-Type, Micro-D Plug, Male Pins Connector
Documents
Technical documentation and resources
No documents available
