B4P-VH-B

Active

JST Sales America Inc.

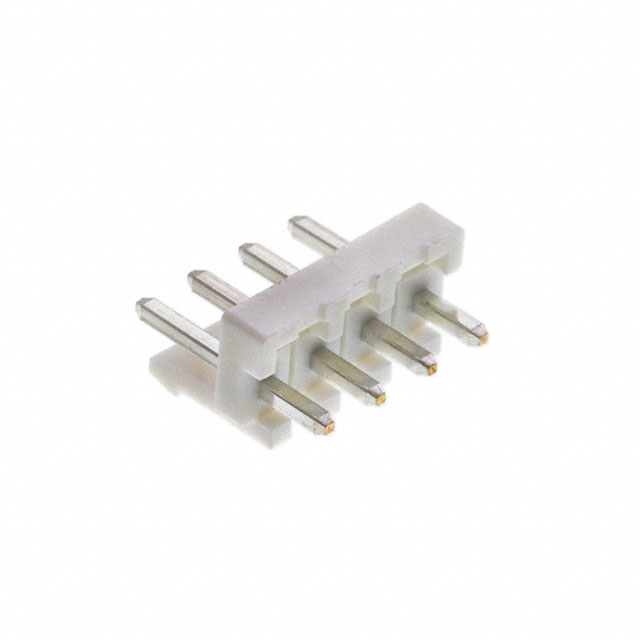

CONN HEADER VERT 4POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart Datasheet

B4P-VH-B

Active

JST Sales America Inc.

CONN HEADER VERT 4POS 3.96MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B4P-VH-B

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	7.7 mm
Contact Length - Mating	0.303 in
Contact Length - Post	0.146 in
Contact Length - Post	3.7 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	10 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.37 in
Insulation Height	9.4 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length	0.575 in
Overall Contact Length	14.6 mm
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

B4P-VH Series

Part	Mated Stacking Heights	Contact Type	Number of Positions	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Shape	Style	Fastening Type	Insulation Material	Connector Type	Mounting Type	Contact Finish - Post	Shrouding	Contact Material	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Termination	Insulation Color	Number of Rows	Voltage Rating	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features
JST Sales America Inc. B4P-VH	16.5 mm	Male Pin	4	0.156 in	3.96 mm	-25 °C	85 °C	All	Square	Board to Cable/Wire	Locking Ramp	Polyamide (PA66) Nylon 6/6	Header	Through Hole	Tin	Shrouded - 1 Wall	Brass	7.7 mm	0.303 in	0.575 in	14.6 mm	UL94 V-0	0.37 in	9.4 mm	0.146 in	3.7 mm	10 A	Solder	Natural	1	250 VDC
JST Sales America Inc. B4P-VH-B		Male Pin	4	0.156 in	3.96 mm	-25 °C	85 °C	All	Square	Board to Cable/Wire	Locking Ramp	Polybutylene Terephthalate (PBT) Glass Filled	Header	Through Hole	Tin	Shrouded - 1 Wall	Brass	7.7 mm	0.303 in	0.575 in	14.6 mm	UL94 V-0	0.37 in	9.4 mm	0.146 in	3.7 mm	10 A	Solder	Natural	1	250 VDC
JST Sales America Inc. B4P-VH-GZ	16.5 mm	Male Pin	4	0.156 in	3.96 mm	-25 °C	85 °C	All	Square	Board to Cable/Wire	Locking Ramp	Polyamide (PA66) Nylon 6/6	Header	Through Hole		Shrouded - 1 Wall	Brass	7.7 mm	0.303 in	0.575 in	14.6 mm	UL94 V-0	0.37 in	9.4 mm	0.146 in	3.7 mm	10 A	Solder	Natural	1	250 VDC	Gold	3 µin	0.076 µm
JST Sales America Inc. B4P-VH-FB-B		Male Pin	4	0.156 in	3.96 mm	-25 °C	85 °C	All	Square	Board to Cable/Wire	Locking Ramp	Polybutylene Terephthalate (PBT) Glass Filled	Header	Through Hole	Tin	Shrouded - 4 Wall	Copper Alloy					UL94 V-0	0.433 in	11 mm	0.146 in	3.7 mm	10 A	Solder	Natural	1	250 VDC				Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.35
		10	$ 0.30
		500	$ 0.20
		1000	$ 0.16
		5000	$ 0.14
		10000	$ 0.13

Description

General part information

B4P-VH Series

Connector Header Through Hole 4 position 0.156" (3.96mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet
