ANT-5GLFPC1-UFL-100

Active

TE Connectivity Linx

RF ANT <960MHZ 5G FLEX ADHES UFL

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF ANT <960MHZ 5G FLEX ADHES UFL

Technical Specifications

Parameters and characteristics for this part

Part	Power - Max [Max]	Gain	Mounting Type	Applications	Antenna Type	Return Loss	Frequency Group	Frequency (Center/Band)	RF Family/Standard	Frequency Range [Max]	Frequency Range [Min]	Features	Features	Number of Bands	Height (Max) [Max]	Height (Max) [Max]	VSWR	Termination	Height (Max) [Max]
TE Connectivity Linx ANT-5GMFPC1-UFL-100	2 W	3 dBi 4.7 dBi 4.8 dBi 5.9 dBi 6.7 dBi	Adhesive	5G Cellular LTE	Flat Patch	-15.6 dB -12.7 dB -11.7 dB -10.9 dB -5.6 dB	Wide Band	2.3 GHz 2.496 GHz 3.3 GHz 3.55 GHz 4.4 GHz 3700 MHz	Cellular	2.4 GHz 2.69 GHz 3.7 GHz 3.8 GHz 4.2 GHz 5 GHz	2.3 GHz 2.496 GHz 3.3 GHz 3.55 GHz 3.7 GHz 4.4 GHz	Cable	100 mm	6	0.2 mm	0.008 in	1.4 1.6 1.7 1.8 3.2	I-PEX MHF1 U.FL (UMCC)
TE Connectivity Linx ANT-5GLFPC1-UFL-100	2 W	-3.2 dBi -3 dBic	Adhesive	5G Cellular LTE	Flat Patch	-4.8 dB -2.5 dB	Wide Band	700 MHz 800 MHz	Cellular	803 MHz 960 MHz	698 MHz 791 MHz	Cable	100 mm	2	0.2 mm	0.01 in	3.7 6.8	I-PEX MHF1 U.FL (UMCC)
TE Connectivity Linx ANT-5GWWS2-SMA	10 W	0.5 dBi 1.4 dBi 2.9 dBi 3.5 dBi 3.9 dBi 4 dBi	Connector Mount	4G 5G CAT-M1 Cellular GSM LPWA LTE LTE-M NB-IoT UMTS	Blade Tilt	-10.9 dB -9.5 dB -7.7 dB -5.1 dB -4.4 dB 7.4 dB 8.1 dB	Wide Band	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.5 GHz 3.3 GHz 3.5 GHz 4.9 GHz 600 MHz 700 MHz 800 MHz 850 MHz 900 MHz 3700 MHz	802.15.4 Bluetooth Cellular General ISM	2.2 GHz 2.4 GHz 2.7 GHz 3.8 GHz 4.2 GHz 4.99 GHz 698 MHz 803 MHz 960 MHz	1.71 GHz 2.3 GHz 2.5 GHz 3.3 GHz 3.7 GHz 4.94 GHz 617 MHz 698 MHz 791 MHz			9	7.323 in		1.8 2 2.3 2.4 2.5 3.5 4		186 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

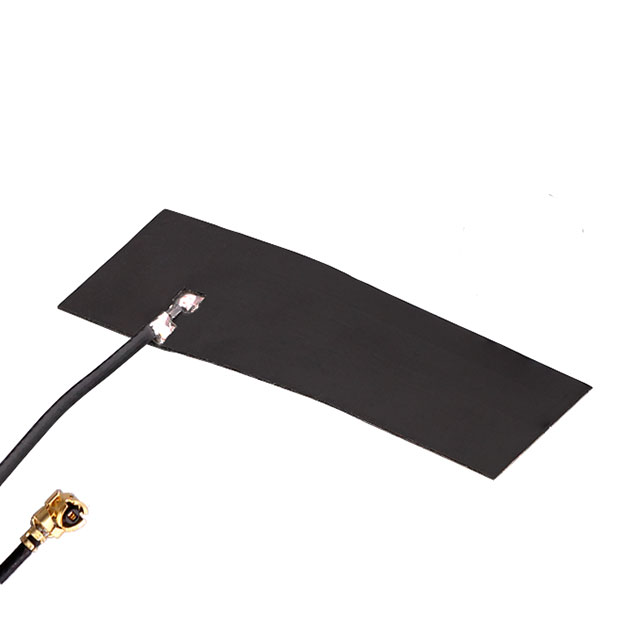

RF ANTENNA 5G, Cellular, LTE Flat Patch U.FL (UMCC), I-PEX MHF1 Adhesive
