ANT-5GWWS2-SMA

Obsolete

TE Connectivity Linx

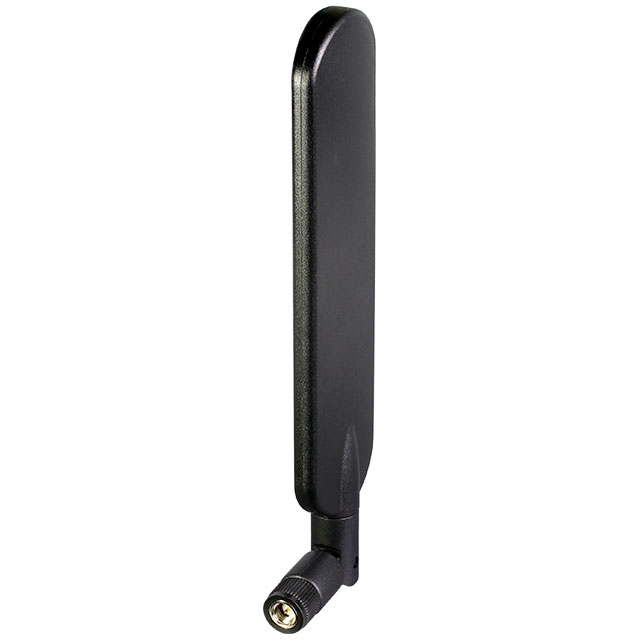

RF ANT 617MHZ-5GHZ 5G TILT SMA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ANT-5GWWS2-SMA

Obsolete

TE Connectivity Linx

RF ANT 617MHZ-5GHZ 5G TILT SMA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ANT-5GWWS2-SMA

Antenna Type	Blade, Tilt
Applications	5G, CAT-M1, NB-IoT, UMTS, GSM, LTE-M, LTE, 4G, Cellular, LPWA
Frequency (Center/Band)	2.1 GHz, 1.9 GHz, 1.7 GHz, 1.8 GHz, 3.5 GHz, 900 MHz, 4.9 GHz, 2.5 GHz, 600 MHz, 850 MHz, 2.3 GHz, 700 MHz, 3.3 GHz, 800 MHz, 3700 MHz
Frequency Group	Wide Band
Frequency Range [Max]	2.7 GHz, 960 MHz, 698 MHz, 4.99 GHz, 2.4 GHz, 3.8 GHz, 2.2 GHz, 4.2 GHz, 803 MHz
Frequency Range [Min]	698 MHz, 3.3 GHz, 4.94 GHz, 3.7 GHz, 791 MHz, 617 MHz, 1.71 GHz, 2.3 GHz, 2.5 GHz
Gain	3.9 dBi, 3.5 dBi, 0.5 dBi, 4 dBi, 2.9 dBi, 1.4 dBi
Height (Max) [Max]	7.323 in
Height (Max) [Max]	186 mm
Mounting Type	Connector Mount
Number of Bands	9
Power - Max [Max]	10 W
Return Loss	7.4 dB, -10.9 dB, -7.7 dB, -5.1 dB, 8.1 dB, -9.5 dB, -4.4 dB
RF Family/Standard	Bluetooth, 802.15.4, Cellular, General ISM
VSWR	3.5, 2.3, 4, 2.4, 2, 2.5, 1.8

ANT-5 Series

Part	Power - Max [Max]	Gain	Mounting Type	Applications	Antenna Type	Return Loss	Frequency Group	Frequency (Center/Band)	RF Family/Standard	Frequency Range [Max]	Frequency Range [Min]	Features	Features	Number of Bands	Height (Max) [Max]	Height (Max) [Max]	VSWR	Termination	Height (Max) [Max]
TE Connectivity Linx ANT-5GMFPC1-UFL-100	2 W	3 dBi 4.7 dBi 4.8 dBi 5.9 dBi 6.7 dBi	Adhesive	5G Cellular LTE	Flat Patch	-15.6 dB -12.7 dB -11.7 dB -10.9 dB -5.6 dB	Wide Band	2.3 GHz 2.496 GHz 3.3 GHz 3.55 GHz 4.4 GHz 3700 MHz	Cellular	2.4 GHz 2.69 GHz 3.7 GHz 3.8 GHz 4.2 GHz 5 GHz	2.3 GHz 2.496 GHz 3.3 GHz 3.55 GHz 3.7 GHz 4.4 GHz	Cable	100 mm	6	0.2 mm	0.008 in	1.4 1.6 1.7 1.8 3.2	I-PEX MHF1 U.FL (UMCC)
TE Connectivity Linx ANT-5GLFPC1-UFL-100	2 W	-3.2 dBi -3 dBic	Adhesive	5G Cellular LTE	Flat Patch	-4.8 dB -2.5 dB	Wide Band	700 MHz 800 MHz	Cellular	803 MHz 960 MHz	698 MHz 791 MHz	Cable	100 mm	2	0.2 mm	0.01 in	3.7 6.8	I-PEX MHF1 U.FL (UMCC)
TE Connectivity Linx ANT-5GWWS2-SMA	10 W	0.5 dBi 1.4 dBi 2.9 dBi 3.5 dBi 3.9 dBi 4 dBi	Connector Mount	4G 5G CAT-M1 Cellular GSM LPWA LTE LTE-M NB-IoT UMTS	Blade Tilt	-10.9 dB -9.5 dB -7.7 dB -5.1 dB -4.4 dB 7.4 dB 8.1 dB	Wide Band	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.5 GHz 3.3 GHz 3.5 GHz 4.9 GHz 600 MHz 700 MHz 800 MHz 850 MHz 900 MHz 3700 MHz	802.15.4 Bluetooth Cellular General ISM	2.2 GHz 2.4 GHz 2.7 GHz 3.8 GHz 4.2 GHz 4.99 GHz 698 MHz 803 MHz 960 MHz	1.71 GHz 2.3 GHz 2.5 GHz 3.3 GHz 3.7 GHz 4.94 GHz 617 MHz 698 MHz 791 MHz			9	7.323 in		1.8 2 2.3 2.4 2.5 3.5 4		186 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ANT-5 Series

600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8 GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 3.3GHz, 3.5GHz, 3.7GHz, 4.9GHz 4G, 5G, Cat-M1, Cellular, GSM, LPWA, LTE, LTE-M, NB-IoT, UMTS Blade, Tilt RF Antenna 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 3.7GHz ~ 4.2GHz, 4.94GHz ~ 4.99GHz 0.5dBi, 0.5dB, 3.5dBi, 2.9dBi, 1.4dBi, 4dBi, 3.9dBi, 3.5dBi SMA Male Connector Mount
