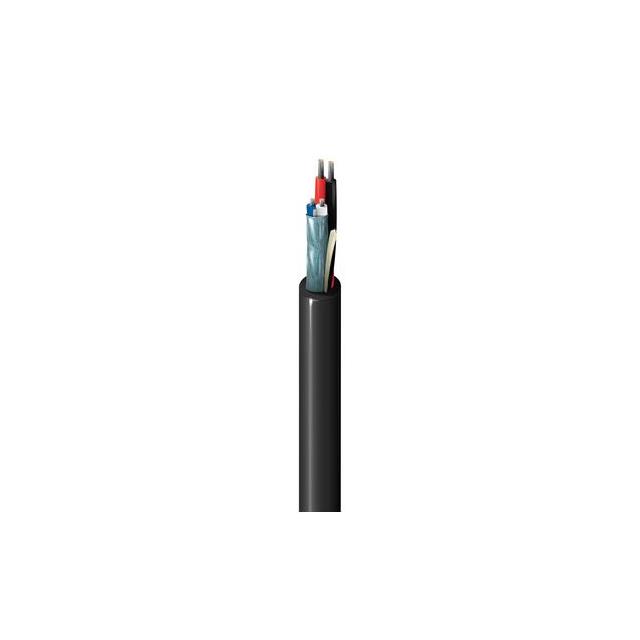

1502P 8771000
ActiveBelden Inc.
CABLE 4COND 18AWG/22AWG
Deep-Dive with AI
Search across all available documentation for this part.
1502P 8771000
ActiveBelden Inc.
CABLE 4COND 18AWG/22AWG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1502P 8771000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 19, 7 Strands, 30 AWG, 32 AWG |
| Jacket (Insulation) Diameter [diameter] | 0.205 in |
| Jacket (Insulation) Diameter [diameter] | 5.21 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Natural |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Voltage | 300 V |
| Wire Gauge | 22 AWG, 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 2.41 | |
Description
General part information
1502P Series
4 (1 Pair + 2) Conductor Multi-Conductor Cable Natural 18 AWG, 22 AWG Foil 1000.0' (304.8m)
