1502P 8775000

Active

Belden Inc.

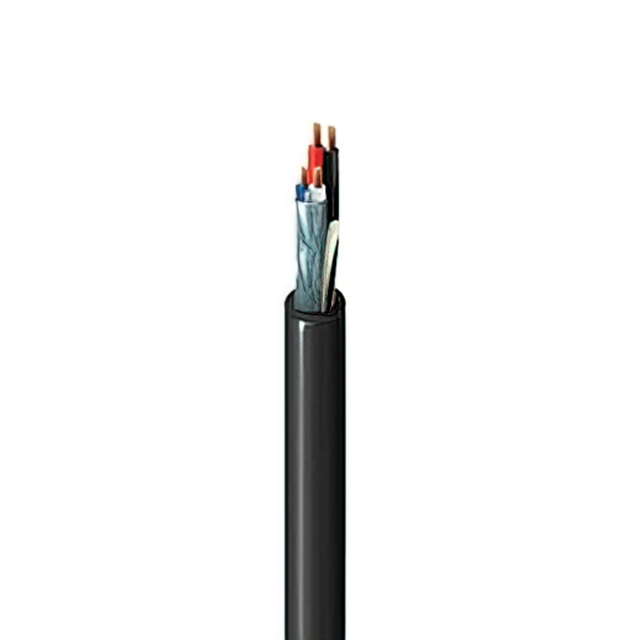

CABLE 4CON 18/22AWG NATURAL

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4CON 18/22AWG NATURAL

Technical Specifications

Parameters and characteristics for this part

Specification	1502P 8775000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand	19, 7 Strands, 30 AWG, 32 AWG
Jacket (Insulation) Diameter [diameter]	0.205 in
Jacket (Insulation) Diameter [diameter]	5.21 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Natural
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	22 AWG, 18 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Wire Gauge	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Conductor Insulation	Jacket Color	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Length	Length	Conductor Strand	Shield Coverage	Jacket (Insulation) Material	Shield Type	Length [x]	Length [x]
Belden Inc. 1502P 8771000	-20 C	60 °C	300 V	18 AWG 22 AWG	Copper Tinned	0.015 in	0.381 mm	4	Poly-Vinyl Chloride (PVC)	Natural	Multi-Conductor	0.205 in	5.21 mm	Aluminum	1000 ft	304.8 m	7 Strands 19 30 AWG 32 AWG	100 %	Poly-Vinyl Chloride (PVC)	Foil
Belden Inc. 1502P 8775000	-20 C	60 °C	300 V	18 AWG 22 AWG	Copper Tinned	0.015 in	0.381 mm	4	Poly-Vinyl Chloride (PVC)	Natural	Multi-Conductor	0.205 in	5.21 mm	Aluminum			7 Strands 19 30 AWG 32 AWG	100 %	Poly-Vinyl Chloride (PVC)	Foil	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 2.29

General part information

4 (1 Pair + 2) Conductor Multi-Conductor Cable Natural 18 AWG, 22 AWG Foil 500.0' (152.4m)
