FX8-80S-SV(22)

Active

Hirose Electric USA, Inc.

[FUNCTIONMAX ] STACKING HEIGHT 3MM TO 4MM 0.6MM PITCH CONNECTORS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

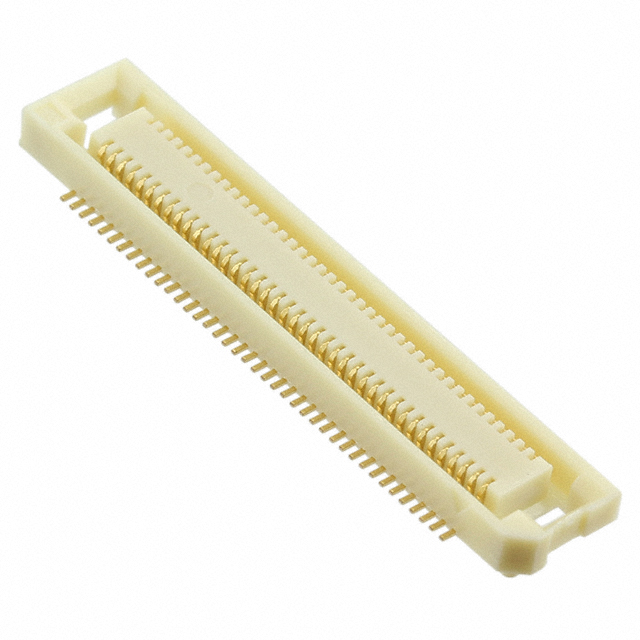

FX8-80S-SV(22)

Active

Hirose Electric USA, Inc.

[FUNCTIONMAX ] STACKING HEIGHT 3MM TO 4MM 0.6MM PITCH CONNECTORS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX8-80S-SV(22)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Features	Board Guide
Height Above Board	0.089 in
Height Above Board	2.26 mm
Mated Stacking Heights	4 mm, 3 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.6 mm
Pitch [x]	0.024 in

FX8 Series

Part	Contact Finish	Height Above Board	Height Above Board	Number of Rows	Number of Positions	Features	Mounting Type	Connector Type	Mated Stacking Heights	Pitch [x]	Pitch [x]
Hirose Electric USA, Inc. FX8-90P-SV1(21)	Gold	0.152 in	3.85 mm	2	90	Board Guide	Surface Mount	Header Outer Shroud Contacts	4 mm	0.6 mm	0.024 in
Hirose Electric USA, Inc. FX8-140P-SV(92)	Gold	0.112 in	2.85 mm	2	140	Board Guide	Surface Mount	Header Outer Shroud Contacts	3 mm	0.6 mm	0.024 in
Hirose Electric USA, Inc. FX8-100S-SV(21)	Gold	0.089 in	2.26 mm	2	100	Board Guide	Surface Mount	Center Strip Contacts Receptacle	3 mm 4 mm	0.6 mm	0.024 in
Hirose Electric USA, Inc. FX8-90P-SV	Gold	0.112 in	2.85 mm	2	90	Board Guide	Surface Mount	Header Outer Shroud Contacts	3 mm	0.6 mm	0.024 in
Hirose Electric USA, Inc. FX8-90P-SV(92)	Gold	0.112 in	2.85 mm	2	90	Board Guide	Surface Mount	Header Outer Shroud Contacts	3 mm	0.6 mm	0.024 in
Hirose Electric USA, Inc. FX8-80S-SV(22)	Gold	0.089 in	2.26 mm	2	80	Board Guide	Surface Mount	Center Strip Contacts Receptacle	3 mm 4 mm	0.6 mm	0.024 in
Hirose Electric USA, Inc. FX8-40P-SV(71)	Gold	0.112 in	2.85 mm	2	40	Board Guide	Surface Mount	Header Outer Shroud Contacts	3 mm	0.6 mm	0.024 in
Hirose Electric USA, Inc. FX8-80P-SV(71)	Gold	0.112 in	2.85 mm	2	80	Board Guide	Surface Mount	Header Outer Shroud Contacts	3 mm	0.6 mm	0.024 in
Hirose Electric USA, Inc. FX8-100S-SV	Gold	0.089 in	2.26 mm	2	100	Board Guide	Surface Mount	Center Strip Contacts Receptacle	3 mm 4 mm	0.6 mm	0.024 in
Hirose Electric USA, Inc. FX8-60S-SV(21)	Gold	0.089 in	2.26 mm	2	60	Board Guide	Surface Mount	Center Strip Contacts Receptacle	3 mm 4 mm	0.6 mm	0.024 in
