FX8-90P-SV

Obsolete

Hirose Electric USA, Inc.

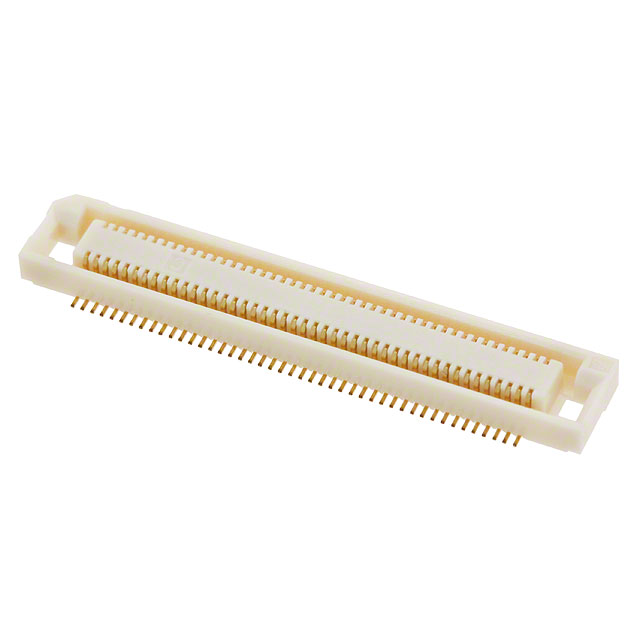

CONN HDR 90POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FX8-90P-SV

Obsolete

Hirose Electric USA, Inc.

CONN HDR 90POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX8-90P-SV

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Board Guide
Height Above Board	2.85 mm
Height Above Board	0.112 in
Mated Stacking Heights	3 mm
Mounting Type	Surface Mount
Number of Positions	90
Number of Rows	2
Pitch [x]	0.6 mm
Pitch [x]	0.024 in

FX8 Series

Part	Contact Finish	Height Above Board	Height Above Board	Number of Rows	Number of Positions	Features	Mounting Type	Connector Type	Mated Stacking Heights	Pitch [x]	Pitch [x]
Hirose Electric USA, Inc. FX8-90P-SV1(21)	Gold	0.152 in	3.85 mm	2	90	Board Guide	Surface Mount	Header Outer Shroud Contacts	4 mm	0.6 mm	0.024 in
Hirose Electric USA, Inc. FX8-140P-SV(92)	Gold	0.112 in	2.85 mm	2	140	Board Guide	Surface Mount	Header Outer Shroud Contacts	3 mm	0.6 mm	0.024 in
Hirose Electric USA, Inc. FX8-100S-SV(21)	Gold	0.089 in	2.26 mm	2	100	Board Guide	Surface Mount	Center Strip Contacts Receptacle	3 mm 4 mm	0.6 mm	0.024 in
Hirose Electric USA, Inc. FX8-90P-SV	Gold	0.112 in	2.85 mm	2	90	Board Guide	Surface Mount	Header Outer Shroud Contacts	3 mm	0.6 mm	0.024 in
Hirose Electric USA, Inc. FX8-90P-SV(92)	Gold	0.112 in	2.85 mm	2	90	Board Guide	Surface Mount	Header Outer Shroud Contacts	3 mm	0.6 mm	0.024 in
Hirose Electric USA, Inc. FX8-80S-SV(22)	Gold	0.089 in	2.26 mm	2	80	Board Guide	Surface Mount	Center Strip Contacts Receptacle	3 mm 4 mm	0.6 mm	0.024 in
Hirose Electric USA, Inc. FX8-40P-SV(71)	Gold	0.112 in	2.85 mm	2	40	Board Guide	Surface Mount	Header Outer Shroud Contacts	3 mm	0.6 mm	0.024 in
Hirose Electric USA, Inc. FX8-80P-SV(71)	Gold	0.112 in	2.85 mm	2	80	Board Guide	Surface Mount	Header Outer Shroud Contacts	3 mm	0.6 mm	0.024 in
Hirose Electric USA, Inc. FX8-100S-SV	Gold	0.089 in	2.26 mm	2	100	Board Guide	Surface Mount	Center Strip Contacts Receptacle	3 mm 4 mm	0.6 mm	0.024 in
Hirose Electric USA, Inc. FX8-60S-SV(21)	Gold	0.089 in	2.26 mm	2	60	Board Guide	Surface Mount	Center Strip Contacts Receptacle	3 mm 4 mm	0.6 mm	0.024 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FX8 Series

90 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
