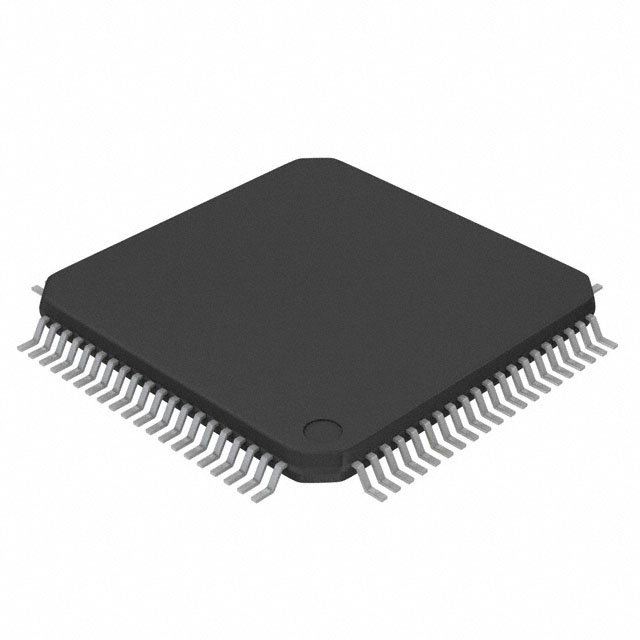

EFM32TG11B540F64IQ80-A

Unknown

Silicon Labs

IC MCU 32BIT 64KB FLASH 80TQFP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet A-00000449 Security Advisory +2

EFM32TG11B540F64IQ80-A

Unknown

Silicon Labs

IC MCU 32BIT 64KB FLASH 80TQFP

Deep-Dive with AI

DocumentsDatasheet A-00000449 Security Advisory +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EFM32TG11B540F64IQ80-A

Connectivity	SPI, UART/USART, LINbus, IrDA, I2C, SmartCard, CANbus
Core Processor	ARM® Cortex®-M0+
Core Size	32-Bit Single-Core
Data Converters	12bit, 12bit SAR
Mounting Type	Surface Mount
Number of I/O	63 I/O
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	80-TQFP
Peripherals	WDT, I2S, Brown-out Detect/Reset, POR, PWM, LCD, DMA
Program Memory Size	64 KB
Program Memory Type	FLASH
Speed	48 MHz
Supplier Device Package	80-TQFP (12x12)
Voltage - Supply (Vcc/Vdd) [Max]	3.8 V
Voltage - Supply (Vcc/Vdd) [Min]	1.8 V

tiny-gecko Series

...

Part	RAM Size	Mounting Type	Peripherals	Package / Case	Speed	Oscillator Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Number of I/O	Program Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Core Processor	Program Memory Type	Core Size	Connectivity	Data Converters
Silicon Labs EFM32TG822F16-QFP48T	4K x 8	Surface Mount	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT	48-TQFP	32 MHz	Internal	1.85 V	3.8 V	37	16 KB	85 °C	-40 °C	48-TQFP (7x7)	ARM® Cortex®-M3	FLASH	32-Bit Single-Core	I2C IrDA SmartCard SPI UART/USART	A/D 4x12b D/A 1x12b
Silicon Labs EFM32TG11B120F128GQ48-AR		Surface Mount	Brown-out Detect/Reset DMA I2S POR PWM WDT	48-TQFP	48 MHz	Internal	1.8 V	3.8 V	37	128 KB	85 °C	-40 °C	48-TQFP (7x7)	ARM® Cortex®-M0+	FLASH	32-Bit Single-Core	CANbus I2C IrDA LINbus SmartCard SPI UART/USART	12bit 12bit SAR
Silicon Labs EFM32TG225F32-BGA48T	4K x 8	Surface Mount	Brown-out Detect/Reset DMA I2S POR PWM WDT	48-VFBGA	32 MHz	Internal	1.85 V	3.8 V	37	32 KB	85 °C	-40 °C	48-BGA (4x4)	ARM® Cortex®-M3	FLASH	32-Bit Single-Core	EBI/EMI I2C IrDA SmartCard SPI UART/USART	A/D 4x12b D/A 1x12b
Silicon Labs EFM32TG11B340F64IM64-B		Surface Mount	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT	64-VFQFN Exposed Pad	48 MHz	Internal	1.8 V	3.8 V	53	64 KB	125 ¯C	-40 °C	64-QFN (9x9)	ARM® Cortex®-M0+	FLASH	32-Bit Single-Core	CANbus I2C IrDA LINbus SmartCard SPI UART/USART	12bit 12bit SAR
Silicon Labs EFM32TG11B540F64IM80-BR		Surface Mount	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT	80-WFQFN Exposed Pad	48 MHz	Internal	1.8 V	3.8 V	67	64 KB	125 ¯C	-40 °C	80-QFN (9x9)	ARM® Cortex®-M0+	FLASH	32-Bit Single-Core	CANbus I2C IrDA LINbus SmartCard SPI UART/USART	12bit 12bit SAR
Silicon Labs EFM32TG11B540F64IQ80-A		Surface Mount	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT	80-TQFP	48 MHz	Internal	1.8 V	3.8 V	63 I/O	64 KB	125 ¯C	-40 °C	80-TQFP (12x12)	ARM® Cortex®-M0+	FLASH	32-Bit Single-Core	CANbus I2C IrDA LINbus SmartCard SPI UART/USART	12bit 12bit SAR
Silicon Labs EFM32TG11B340F64IQ64-B		Surface Mount	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT	64-TQFP	48 MHz	Internal	1.8 V	3.8 V	53	64 KB	125 ¯C	-40 °C	64-TQFP (10x10)	ARM® Cortex®-M0+	FLASH	32-Bit Single-Core	CANbus I2C IrDA LINbus SmartCard SPI UART/USART	12bit 12bit SAR
Silicon Labs EFM32TG11B510F128GQ80-AR
Silicon Labs EFM32TG11B540F64IQ80-B		Surface Mount	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT	80-TQFP	48 MHz	Internal	1.8 V	3.8 V	63 I/O	64 KB	125 ¯C	-40 °C	80-TQFP (12x12)	ARM® Cortex®-M0+	FLASH	32-Bit Single-Core	CANbus I2C IrDA LINbus SmartCard SPI UART/USART	12bit 12bit SAR
Silicon Labs EFM32TG11B520F128GM64-AR		Surface Mount	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT	64-VFQFN Exposed Pad	48 MHz	Internal	1.8 V	3.8 V	53	128 KB	85 °C	-40 °C	64-QFN (9x9)	ARM® Cortex®-M0+	FLASH	32-Bit Single-Core	CANbus I2C IrDA LINbus SmartCard SPI UART/USART	12bit 12bit SAR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

tiny-gecko Series

ARM® Cortex®-M0+ Tiny Gecko 1 Microcontroller IC 32-Bit Single-Core 48MHz 64KB (64K x 8) FLASH 80-TQFP (12x12)
