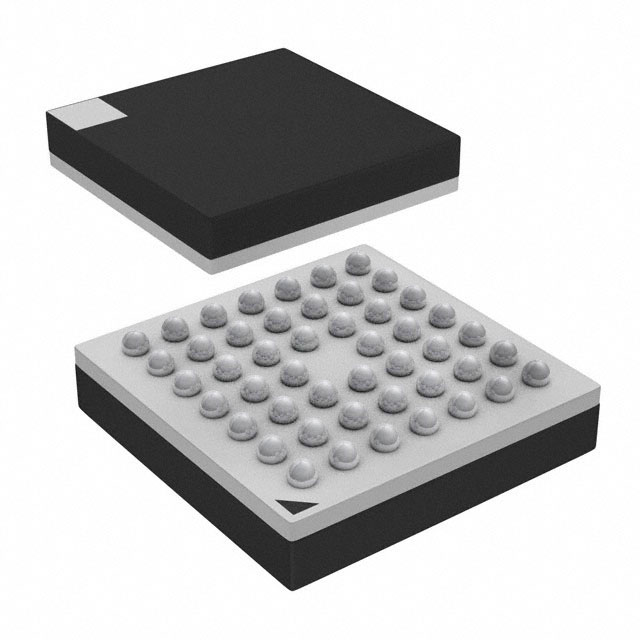

EFM32TG225F32-BGA48T

Obsolete

Silicon Labs

IC: ARM MICROCONTROLLER; 32MHZ; BGA48; 4KBRAM,32KBFLASH; PWM: 3

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA-00000449 Security Advisory Datasheet +2

EFM32TG225F32-BGA48T

Obsolete

Silicon Labs

IC: ARM MICROCONTROLLER; 32MHZ; BGA48; 4KBRAM,32KBFLASH; PWM: 3

Deep-Dive with AI

DocumentsA-00000449 Security Advisory Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EFM32TG225F32-BGA48T

Connectivity	I2C, UART/USART, SPI, IrDA, EBI/EMI, SmartCard
Core Processor	ARM® Cortex®-M3
Core Size	32-Bit Single-Core
Data Converters	A/D 4x12b, D/A 1x12b
Mounting Type	Surface Mount
Number of I/O	37
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	48-VFBGA
Peripherals	Brown-out Detect/Reset, DMA, POR, WDT, PWM, I2S
Program Memory Size	32 KB
Program Memory Type	FLASH
RAM Size	4K x 8
Speed	32 MHz
Supplier Device Package	48-BGA (4x4)
Voltage - Supply (Vcc/Vdd) [Max]	3.8 V
Voltage - Supply (Vcc/Vdd) [Min]	1.85 V

tiny-gecko Series

...

Part	RAM Size	Mounting Type	Peripherals	Package / Case	Speed	Oscillator Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Number of I/O	Program Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Core Processor	Program Memory Type	Core Size	Connectivity	Data Converters
Silicon Labs EFM32TG822F16-QFP48T	4K x 8	Surface Mount	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT	48-TQFP	32 MHz	Internal	1.85 V	3.8 V	37	16 KB	85 °C	-40 °C	48-TQFP (7x7)	ARM® Cortex®-M3	FLASH	32-Bit Single-Core	I2C IrDA SmartCard SPI UART/USART	A/D 4x12b D/A 1x12b
Silicon Labs EFM32TG11B120F128GQ48-AR		Surface Mount	Brown-out Detect/Reset DMA I2S POR PWM WDT	48-TQFP	48 MHz	Internal	1.8 V	3.8 V	37	128 KB	85 °C	-40 °C	48-TQFP (7x7)	ARM® Cortex®-M0+	FLASH	32-Bit Single-Core	CANbus I2C IrDA LINbus SmartCard SPI UART/USART	12bit 12bit SAR
Silicon Labs EFM32TG225F32-BGA48T	4K x 8	Surface Mount	Brown-out Detect/Reset DMA I2S POR PWM WDT	48-VFBGA	32 MHz	Internal	1.85 V	3.8 V	37	32 KB	85 °C	-40 °C	48-BGA (4x4)	ARM® Cortex®-M3	FLASH	32-Bit Single-Core	EBI/EMI I2C IrDA SmartCard SPI UART/USART	A/D 4x12b D/A 1x12b
Silicon Labs EFM32TG11B340F64IM64-B		Surface Mount	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT	64-VFQFN Exposed Pad	48 MHz	Internal	1.8 V	3.8 V	53	64 KB	125 ¯C	-40 °C	64-QFN (9x9)	ARM® Cortex®-M0+	FLASH	32-Bit Single-Core	CANbus I2C IrDA LINbus SmartCard SPI UART/USART	12bit 12bit SAR
Silicon Labs EFM32TG11B540F64IM80-BR		Surface Mount	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT	80-WFQFN Exposed Pad	48 MHz	Internal	1.8 V	3.8 V	67	64 KB	125 ¯C	-40 °C	80-QFN (9x9)	ARM® Cortex®-M0+	FLASH	32-Bit Single-Core	CANbus I2C IrDA LINbus SmartCard SPI UART/USART	12bit 12bit SAR
Silicon Labs EFM32TG11B540F64IQ80-A		Surface Mount	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT	80-TQFP	48 MHz	Internal	1.8 V	3.8 V	63 I/O	64 KB	125 ¯C	-40 °C	80-TQFP (12x12)	ARM® Cortex®-M0+	FLASH	32-Bit Single-Core	CANbus I2C IrDA LINbus SmartCard SPI UART/USART	12bit 12bit SAR
Silicon Labs EFM32TG11B340F64IQ64-B		Surface Mount	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT	64-TQFP	48 MHz	Internal	1.8 V	3.8 V	53	64 KB	125 ¯C	-40 °C	64-TQFP (10x10)	ARM® Cortex®-M0+	FLASH	32-Bit Single-Core	CANbus I2C IrDA LINbus SmartCard SPI UART/USART	12bit 12bit SAR
Silicon Labs EFM32TG11B510F128GQ80-AR
Silicon Labs EFM32TG11B540F64IQ80-B		Surface Mount	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT	80-TQFP	48 MHz	Internal	1.8 V	3.8 V	63 I/O	64 KB	125 ¯C	-40 °C	80-TQFP (12x12)	ARM® Cortex®-M0+	FLASH	32-Bit Single-Core	CANbus I2C IrDA LINbus SmartCard SPI UART/USART	12bit 12bit SAR
Silicon Labs EFM32TG11B520F128GM64-AR		Surface Mount	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT	64-VFQFN Exposed Pad	48 MHz	Internal	1.8 V	3.8 V	53	128 KB	85 °C	-40 °C	64-QFN (9x9)	ARM® Cortex®-M0+	FLASH	32-Bit Single-Core	CANbus I2C IrDA LINbus SmartCard SPI UART/USART	12bit 12bit SAR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

TME	N/A	1	$ 15.33
		3	$ 14.19
		5	$ 13.06

Description

General part information

tiny-gecko Series

ARM® Cortex®-M3 Tiny Gecko Microcontroller IC 32-Bit Single-Core 32MHz 32KB (32K x 8) FLASH 48-BGA (4x4)

EFM32TG225F32-BGA48T

Deep-Dive with AI

EFM32TG225F32-BGA48T

Deep-Dive with AI

Technical Specifications

tiny-gecko Series

Pricing

Description

tiny-gecko Series

Documents

A-00000449 Security Advisory

Datasheet

A-00000450 Security Advisory

A-00000442 Security Advisory

tiny-gecko Series
