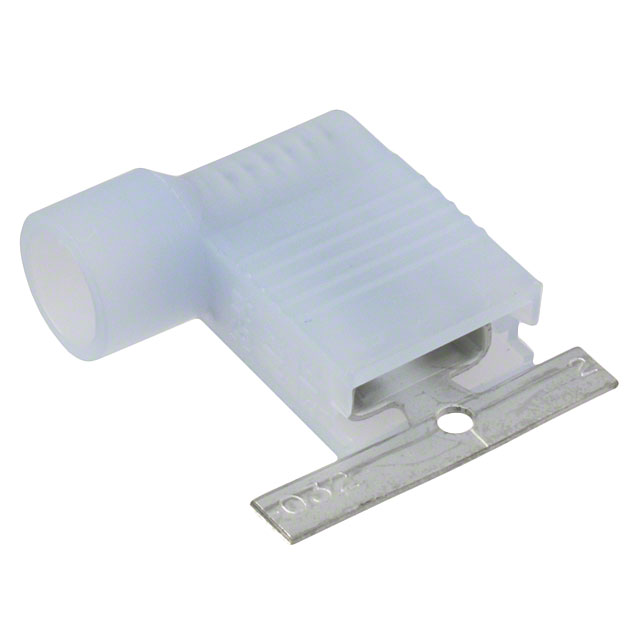

0190070028
ActiveMolex
CONN QC RCPT 14-16AWG 0.250
Deep-Dive with AI
Search across all available documentation for this part.
0190070028
ActiveMolex
CONN QC RCPT 14-16AWG 0.250
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0190070028 |
|---|---|
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Fully Insulated |
| Insulation Diameter | 5.08 mm |
| Insulation Diameter | 0.2 in |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Flag, Angled - 90° |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.47 | |
| 10 | $ 0.40 | |||
| 25 | $ 0.33 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.31 | |||
| 250 | $ 0.28 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.24 | |||
| Tape & Reel (TR) | 2000 | $ 0.20 | ||
| 4000 | $ 0.19 | |||
| 6000 | $ 0.18 | |||
| 10000 | $ 0.22 | |||
| 14000 | $ 0.21 | |||
| 20000 | $ 0.21 | |||
| 50000 | $ 0.20 | |||
Description
General part information
019007 Series
0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated
