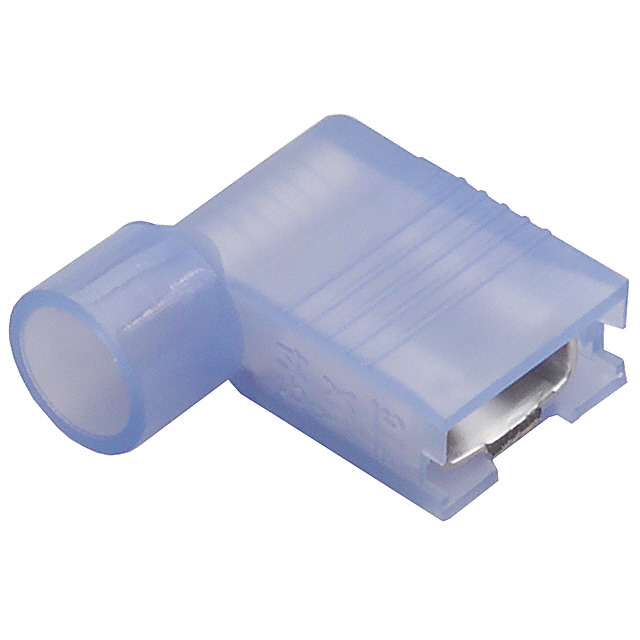

0190070021

Active

Molex

CONN QC RCPT 14-16AWG 0.250

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet Insulkrimp Prod Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190070021

Color	Blue
Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Fully Insulated
Insulation Diameter	5.08 mm
Insulation Diameter	0.2 in
Mounting Type	Free Hanging (In-Line), Right Angle
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Flag, Angled - 90°
Termination	Crimp

019007 Series

Part	Mounting Type	Color	Contact Finish	Gender	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Contact Material	Tab Thickness	Tab Thickness	Termination	Tab Width	Tab Width	Insulation Diameter	Insulation Diameter	Insulation Diameter [diameter]	Insulation Diameter [diameter]
Molex 0190070011	Free Hanging (In-Line) Right Angle	Red	Tin	Female	Fully Insulated	22 AWG	17.5 AWG	Angled - 90° Flag	Brass	0.02 "	0.51 mm	Crimp	4.75 mm	0.187 in
Molex 0190070035	Free Hanging (In-Line) Right Angle	Blue	Tin	Female	Fully Insulated			Angled - 90° Flag	Brass	0.032 in	0.81 mm	Crimp	4.75 mm	0.187 in	5.08 mm	0.2 in
Molex 0190070021	Free Hanging (In-Line) Right Angle	Blue	Tin	Female	Fully Insulated			Angled - 90° Flag	Brass	0.032 in	0.81 mm	Crimp	6.35 mm	0.25 in	5.08 mm	0.2 in
Molex 0190070013	Free Hanging (In-Line) Right Angle	Red	Tin	Female	Fully Insulated	22 AWG	17.5 AWG	Angled - 90° Flag	Brass	0.02 "	0.51 mm	Crimp	4.75 mm	0.187 in			6.1 mm	0.24 in
Molex 0190070067	Free Hanging (In-Line) Right Angle	Red	Tin	Female	Fully Insulated	22 AWG	17.5 AWG	Angled - 90° Flag	Brass	0.02 "	0.51 mm	Crimp	4.75 mm	0.187 in
Molex 0190070016	Free Hanging (In-Line) Right Angle	Red		Female	Fully Insulated	22 AWG	17.5 AWG	Angled - 90° Flag	Brass	0.032 in	0.81 mm	Crimp	4.75 mm	0.187 in
Molex 0190070028	Free Hanging (In-Line) Right Angle	Blue	Tin	Female	Fully Insulated			Angled - 90° Flag	Brass	0.032 in	0.81 mm	Crimp	6.35 mm	0.25 in	5.08 mm	0.2 in
Molex 0190070083	Free Hanging (In-Line) Right Angle	Yellow	Tin	Female	Fully Insulated	12 AWG	10 AWG	Angled - 90° Flag	Brass	0.032 in	0.81 mm	Crimp	6.35 mm	0.25 in			6.6 mm	0.26 in
Molex 0190070071	Free Hanging (In-Line) Right Angle	Red	Tin	Female	Fully Insulated	22 AWG	17.5 AWG	Angled - 90° Flag	Brass	0.032 in	0.81 mm	Crimp	4.75 mm	0.187 in
Molex 0190070069	Free Hanging (In-Line) Right Angle	Red	Tin	Female	Fully Insulated	22 AWG	17.5 AWG	Angled - 90° Flag	Brass	0.02 "	0.51 mm	Crimp	4.75 mm	0.187 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.59
		10	$ 0.50
		100	$ 0.39
		1000	$ 0.30
		3000	$ 0.28

Description

General part information

019007 Series

0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet

Insulkrimp Prod Spec

Datasheet
