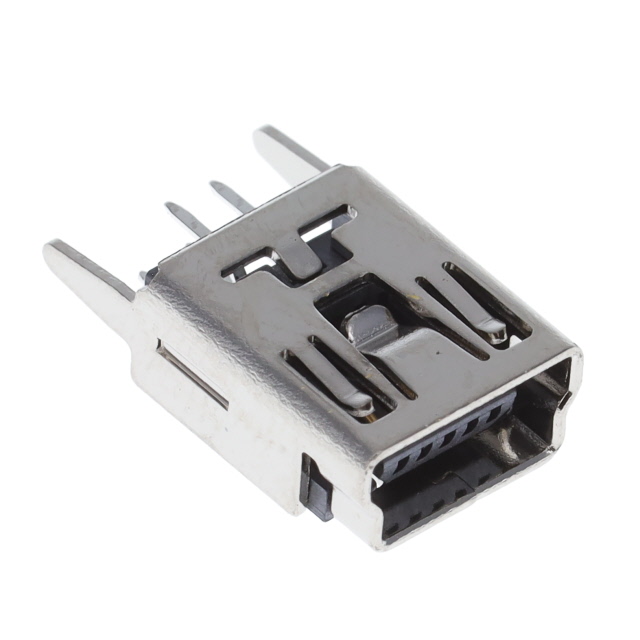

MUSB-B5-S-VT-LSP

Active

Adam Tech

MINI USB, TYPE B, VERTICAL, THRO

Search across all available documentation for this part.

Active

Adam Tech

MINI USB, TYPE B, VERTICAL, THRO

Technical Specifications

Parameters and characteristics for this part

Specification	MUSB-B5-S-VT-LSP

Connector Type	USB - mini B
Contact Finish	Gold
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Feature	Vertical
Mounting Type	Through Hole
Number of Contacts	5
Number of Ports	1
Shell/Shielding Material	Copper Alloy
Shielding	Shielded
Termination	Solder
Voltage - Rated	30 V

Part	Shell/Shielding Material	Mounting Type	Gender	Connector Type	Termination	Number of Contacts	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Current Rating (Amps)	Mounting Feature	Number of Ports	Material Flammability Rating	Shielding	Insulation Color	Features	Voltage - Rated
Adam Tech MUSB-B5-S-VT-TSMT-CS1-10-PP-T/R	Brass	Surface Mount Through Hole	Receptacle	USB - mini B	Solder	5	-25 °C	80 C	Gold	2 A	Vertical	1	UL94 V-0	Shielded	Black
Adam Tech MUSB-B5-S-VT-TSMT-T/R	Brass	Surface Mount	Receptacle	USB - mini B	Solder	5			Gold		Vertical	1	UL94 V-0	Shielded	Black	Board Guide Solder Retention	5 V
Adam Tech MUSB-B5-S-VT-LSP	Copper Alloy	Through Hole	Receptacle	USB - mini B	Solder	5			Gold		Vertical	1	UL94 V-0	Shielded	Black		30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - mini B Receptacle Connector 5 Position Through Hole
