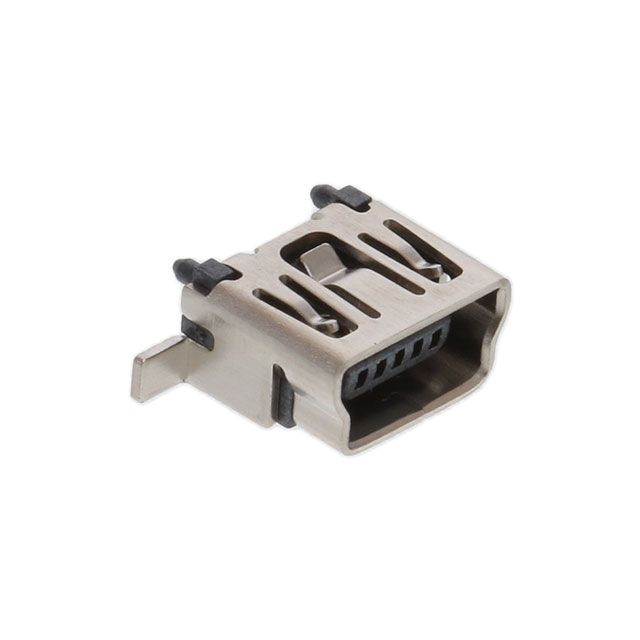

MUSB-B5-S-VT-TSMT-T/R

Active

Adam Tech

MINI USB, TYPEB, VERICAL 5 POSIT

Search across all available documentation for this part.

Active

Adam Tech

MINI USB, TYPEB, VERICAL 5 POSIT

Technical Specifications

Parameters and characteristics for this part

Specification	MUSB-B5-S-VT-TSMT-T/R

Connector Type	USB - mini B
Contact Finish	Gold
Features	Solder Retention, Board Guide
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Feature	Vertical
Mounting Type	Surface Mount
Number of Contacts	5
Number of Ports	1
Shell/Shielding Material	Brass
Shielding	Shielded
Termination	Solder
Voltage - Rated	5 V

Part	Shell/Shielding Material	Mounting Type	Gender	Connector Type	Termination	Number of Contacts	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Current Rating (Amps)	Mounting Feature	Number of Ports	Material Flammability Rating	Shielding	Insulation Color	Features	Voltage - Rated
Adam Tech MUSB-B5-S-VT-TSMT-CS1-10-PP-T/R	Brass	Surface Mount Through Hole	Receptacle	USB - mini B	Solder	5	-25 °C	80 C	Gold	2 A	Vertical	1	UL94 V-0	Shielded	Black
Adam Tech MUSB-B5-S-VT-TSMT-T/R	Brass	Surface Mount	Receptacle	USB - mini B	Solder	5			Gold		Vertical	1	UL94 V-0	Shielded	Black	Board Guide Solder Retention	5 V
Adam Tech MUSB-B5-S-VT-LSP	Copper Alloy	Through Hole	Receptacle	USB - mini B	Solder	5			Gold		Vertical	1	UL94 V-0	Shielded	Black		30 V
