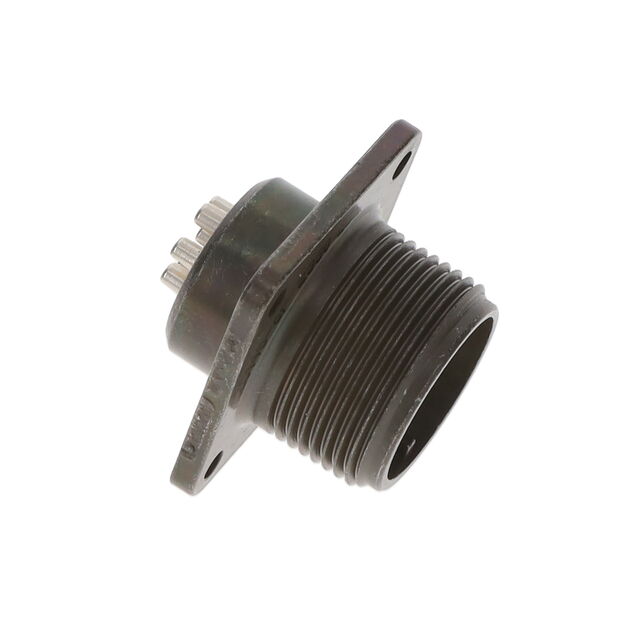

MS3102C14S-6P - MS3102C14S-6P

MS3102C14S-6P

Active
Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
MS3102C14S-6P - MS3102C14S-6P

MS3102C14S-6P

Active
Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationMS3102C14S-6P
ApplicationsMilitary, Marine
ColorOlive Drab
Connector TypeReceptacle, Male Pins
Contact Finish - MatingSilver
Contact MaterialCopper Alloy
Current Rating (Amps)13 A
GradeMilitary
Ingress ProtectionEnvironment Resistant
Insert MaterialNeoprene
Mounting FeatureFlange
Number of Positions6
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
OrientationN
Primary MaterialMetal
QualificationMIL-DTL-5015
Shell FinishOlive Drab Chromate over Cadmium
Shell MaterialAluminum Alloy
Shell Size - Insert14S-6
ShieldingUnshielded
Voltage Rating250 VDC, 200 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 19.15
10$ 16.77
25$ 16.05
50$ 15.53
100$ 15.01
250$ 14.18
500$ 13.77

Description

General part information

MS3102C14 Series

6 Position Circular Connector Receptacle, Male Pins Solder Cup
