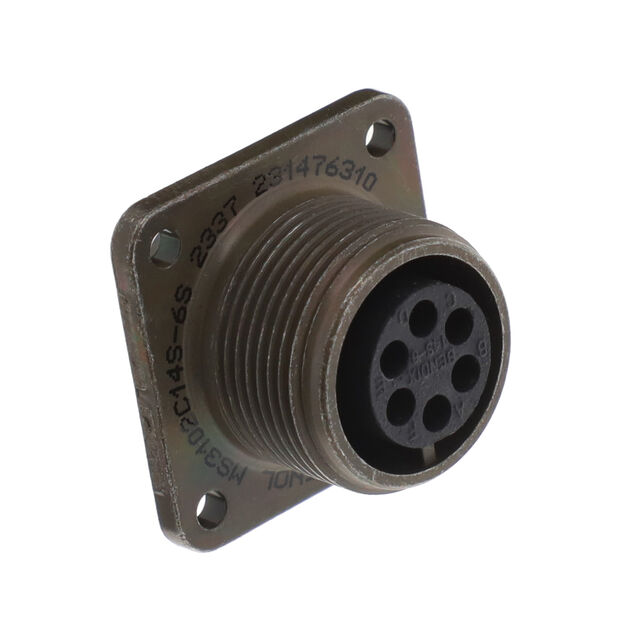

MS3102C14S-6S - MS3102C14S-6S

MS3102C14S-6S

Active
Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
MS3102C14S-6S - MS3102C14S-6S

MS3102C14S-6S

Active
Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationMS3102C14S-6S
ApplicationsMilitary, Marine
ColorOlive Drab
Connector TypeReceptacle, Female Sockets
Contact Finish - MatingSilver
Contact MaterialCopper Alloy
Current Rating (Amps)13 A
GradeMilitary
Ingress ProtectionEnvironment Resistant
Insert MaterialNeoprene
Mounting FeatureFlange
Number of Positions6
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
OrientationN
Primary MaterialMetal
QualificationMIL-DTL-5015
Shell FinishOlive Drab Chromate over Cadmium
Shell MaterialAluminum Alloy
Shell Size - Insert14S-6
ShieldingUnshielded
Voltage Rating250 VDC, 200 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 21.36
10$ 18.70
25$ 17.89
50$ 17.32
100$ 16.74
250$ 15.82
500$ 15.35

Description

General part information

MS3102C14 Series

6 Position Circular Connector Receptacle, Female Sockets Solder Cup
