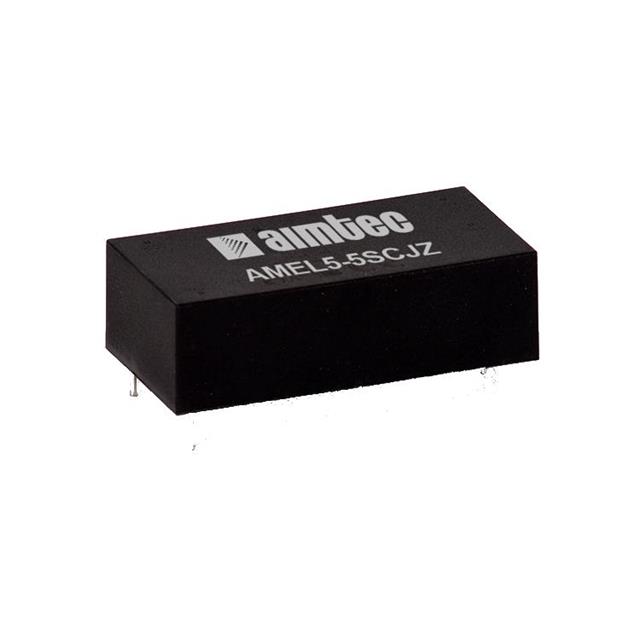

AMEL5-09SCJZ-STD

Active

aimtec

AC/DC DIN RAIL SUPPLY 9V 5W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMEL5-09SCJZ-STD

Active

aimtec

AC/DC DIN RAIL SUPPLY 9V 5W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AMEL5-09SCJZ-STD

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	Medical
Approval Agency	cULus, cURus
Current - Output (Max) [Max]	550 mA
DC Voltage - Input (Max) [Max]	370 V
DC Voltage - Input (Min) [Min]	100 V
Efficiency	78 %
Features	Universal Input
Input Type	AC or DC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	5 W
Size / Dimension [x]	1.02 in
Size / Dimension [x]	25.9 mm
Size / Dimension [y]	23.1 mm
Size / Dimension [y]	0.91 in
Size / Dimension [z]	2.99 in
Size / Dimension [z]	75.9 mm
Standard Number	60601-1
Voltage - Isolation	4000 V
Voltage - Output 1	9 V

AMEL5 Series

Part	Standard Number	Input Type	Features	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Applications	Voltage - Output 1	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Efficiency	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]	Approval Agency	Voltage - Isolation	Current - Output (Max) [Max]	Load Regulation	Voltage - Input [Min]	Voltage - Input [Max]	Weight	Weight	Package / Case	Type	Line Regulation	Mounting Type	Current - Output 1
aimtec AMEL5-09SCJZ-STD	60601-1	AC or DC	Universal Input	5 W	1.02 in	25.9 mm	23.1 mm	2.99 in	0.91 in	75.9 mm	Medical	9 V	1	-25 °C	70 °C	85 VAC	264 VAC	78 %	370 V	100 V	cULus cURus	4000 V	550 mA
aimtec AMEL5-5SMAZ			Universal Input	5 W	2.03 in	51.5 mm	28 mm	0.7 "	1.1 in	17.8 mm	ITE (Commercial) Medical	5 V	1	-40 °C	80 ¯C			74 %			CB CE cURus		1 A	1 %	90 VAC	264 VAC	30 g	0.066 lb	5-DIP Module	Enclosed	1 %	Through Hole
aimtec AMEL5-24SEMAZ			Universal Input	5 W	2.03 in	51.5 mm	28 mm	0.7 "	1.1 in	17.8 mm	ITE (Commercial) Medical	24 V	1	-40 °C	80 ¯C			76 %			CB CE cURus		210 mA	1 %	90 VAC	264 VAC			5-DIP Module	Enclosed	1 %	Through Hole
aimtec AMEL5-9SVZ			Universal Input	5 W	1.46 in	37 mm	24.5 mm	0.71 in	0.96 in	18 mm	ITE (Commercial)	9 V	1					77 %					560 mA	1 %	85 VAC 100 V	264 VAC 370 VDC	25 g	0.055 lb	26-DIP Module 5 Leads	Enclosed	0.5 %	Through Hole
aimtec AMEL5-24SVZ-W			Universal Input	5 W	1.46 in	37 mm	24.9 mm	0.71 in	0.97 "	18 mm	ITE (Commercial)	24 V	1	-40 °C	70 °C			81 %				4000 V			85 VAC 100 V	264 VAC 370 VDC				Enclosed		Chassis Mount	210 mA
aimtec AMEL5-5SEMAZ			Universal Input	5 W	2.03 in	51.5 mm	28 mm	0.7 "	1.1 in	17.8 mm	ITE (Commercial) Medical	5 V	1	-40 °C	80 ¯C			74 %			CB CE cURus		1 A	1 %	90 VAC	264 VAC			5-DIP Module	Enclosed	1 %	Through Hole
aimtec AMEL5-5SJZ				5 W	2 in	50.8 mm	25.4 mm	0.6 "	25.4 mm	15.2 mm	ITE (Commercial)	5 V	1	-25 °C	70 °C			78 %			CE cULus cURus		1 A	0.5 %					4-DIP Module	Enclosed	0.5 %	Through Hole
aimtec AMEL5-24SCJZ-ST	60601-1		Universal Input		2.99 in	76 mm	31.5 mm	0.94 in	1.24 in	24 mm	Medical	24 V	1	-25 °C	70 °C			83 %			cULus cURus	4000 V								Enclosed		Chassis Mount	230 mA
aimtec AMEL5-24SMAZ			Universal Input	5 W	2.03 in	51.5 mm	28 mm	0.7 "	1.1 in	17.8 mm	ITE (Commercial) Medical	24 V	1	-40 °C	80 ¯C			76 %			CB CE cURus		210 mA	1 %	90 VAC	264 VAC	30 g	0.066 lb	5-DIP Module	Enclosed	1 %	Through Hole
aimtec AMEL5-12SAZ				5 W	2.03 in	51.5 mm	28.3 mm	0.7 "	1.11 in	17.8 mm	ITE (Commercial)	12 V	1	-40 °C	95 °C			76 %			CB CE cURus		420 mA	1 %	90 VAC 130 VDC	305 VAC 430 VDC	30 g	0.066 lb	4-DIP Module	Enclosed	1 %	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AMEL5 Series

AC/DC DIN RAIL SUPPLY 9V 5W
