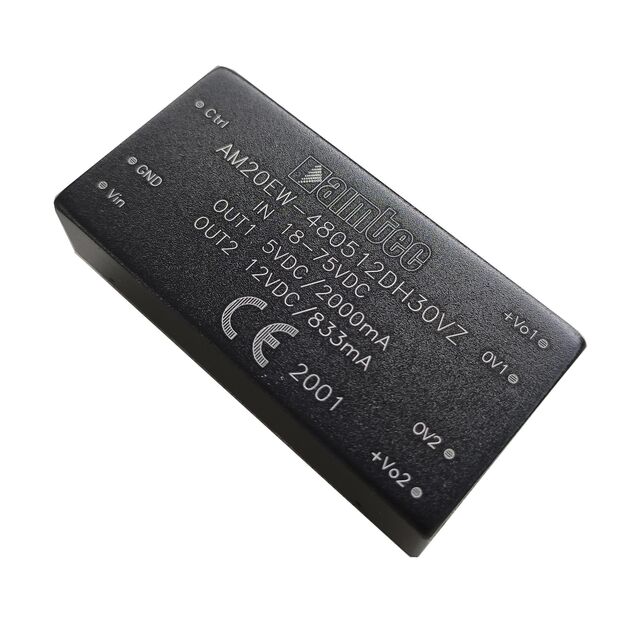

AM20EW-480512DH30VZ

Active

aimtec

DC DC CONVERTER 5V 12V 20W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM20EW-480512DH30VZ

Active

aimtec

DC DC CONVERTER 5V 12V 20W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM20EW-480512DH30VZ

Applications	ITE (Commercial)
Current - Output (Max)	833 mA
Current - Output (Max)	2 A
Efficiency	84 %
Features	Remote On/Off
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Power (Watts)	20 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.46 in
Size / Dimension [z]	11.8 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	3000 V
Voltage - Output 1 [Max]	12 V
Voltage - Output 1 [Min]	5 V
Voltage - Output 2	12 V

AM20E Series

Part	Applications	Voltage - Input (Max) [Max]	Power (Watts)	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Mounting Type	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Package / Case	Number of Outputs	Voltage - Output 2	Approval Agency	Voltage - Isolation	Features	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Output 1	Standard Number	Current - Output (Max)
aimtec AM20EW-2415D-NZ	ITE (Commercial)	36 V	20 W	15 V	-15 V	Through Hole	88 %	85 °C	-40 °C	Isolated Module	2 in	50.8 mm	0.46 in	25.4 mm	25.4 mm	11.8 mm	6-DIP Module	2	-15 V	CE cULus cURus	1.5 kV	Adjustable Output Remote On/Off	667 mA	667 mA	9 V
aimtec AM20EWM-2424SH50NZ	Medical	36 V	20 W			Through Hole	89 %	85 °C	-40 °C	Isolated Module	2.03 in	51.5 mm	0.47 "	26.5 mm	1.04 in	12 mm		1			5000 V	Remote On/Off			9 V	833 mA	24 V
aimtec AM20EWM-4815SH50NZ	Medical	75 V	20 W			Through Hole	88 %	85 °C	-40 °C	Isolated Module	2.03 in	51.5 mm	0.47 "	26.5 mm	1.04 in	12 mm		1			5000 V	Remote On/Off			18 V	1.333 A	15 V
aimtec AM20EW-2412S-NZ-K-ST	ITE (Commercial)	36 V	20 W			Chassis Mount	89 %	65 °C	-40 °C	Enclosed	2.99 in	76 mm	1 "	31.5 mm	1.29 "	25.1 mm		1		CE cURus	1.5 kV				9 V	1.667 A	12 V	60950-1
aimtec AM20EW-480512DH30VZ	ITE (Commercial)	75 V	20 W	12 V	5 V	Through Hole	84 %	105 ░C	-40 °C	Isolated Module	2 in	50.8 mm	0.46 in	25.4 mm	25.4 mm	11.8 mm		2	12 V		3000 V	Remote On/Off	833 mA	2 A	18 V
aimtec AM20EWM-2412SH50NZ	Medical	36 V	20 W			Through Hole	86 %	85 °C	-40 °C	Isolated Module	2.03 in	51.5 mm	0.47 "	26.5 mm	1.04 in	12 mm		1			5000 V	Remote On/Off			9 V	1.666 A	12 V
aimtec AM20E-2409S-NZ	ITE (Commercial)	36 V	20 W			Through Hole	89 %	85 °C	-40 °C	Isolated Module	2 in	50.8 mm	0.47 "	25.4 mm	25.4 mm	11.8 mm		1		CE	1.5 kV	Remote On/Off			18 V	2.22 A	9 V
aimtec AM20E-2409D-NZ	ITE (Commercial)	36 V	20 W			Through Hole	88 %	85 °C	-40 °C	Isolated Module	2 in	50.8 mm	0.47 "	25.4 mm	25.4 mm	11.8 mm		2	-9 V	CE	1.5 kV	Remote On/Off	1.11 A		18 V				1.11 A
aimtec AM20EW-2412D-NZ-K	ITE (Commercial)	36 V	20 W	12 V	-12 V	Through Hole	88 %	85 °C	-40 °C	Isolated Module	2 in	50.8 mm	0.47 "	25.4 mm	25.4 mm	11.8 mm		2	-12 V	CE cULus cURus	1.5 kV	Adjustable Output Heat Sink Remote On/Off		834 mA	9 V
aimtec AM20EWM-2405SH50NZ	Medical	36 V	20 W			Through Hole	86 %	85 °C	-40 °C	Isolated Module	2.03 in	51.5 mm	0.47 "	26.5 mm	1.04 in	12 mm		1			5000 V	Remote On/Off			9 V	4 A	5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 54.35
		5	$ 48.70
		10	$ 47.48
		15	$ 47.01
		25	$ 46.07
		50	$ 45.14
		75	$ 43.11
		100	$ 38.11
		200	$ 36.97

Description

General part information

AM20E Series

Isolated Module DC DC Converter 2 Output 5 ~ 12V 12V 2A, 833mA 18V - 75V Input
