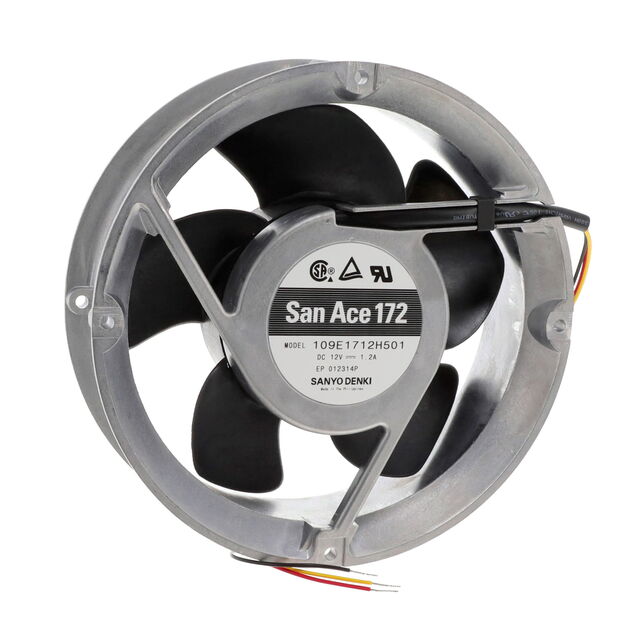

109E1712H501

Active

Sanyo Denki America Inc.

FAN AXIAL 172X51MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumbering System DC Fan Rotor Balancing

109E1712H501

Active

Sanyo Denki America Inc.

FAN AXIAL 172X51MM 12VDC WIRE

Deep-Dive with AI

DocumentsNumbering System DC Fan Rotor Balancing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109E1712H501

Air Flow	226 CFM
Air Flow	6.33 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	1.2 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	47 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	14.4 W
Size / Dimension	Round
Size / Dimension [diameter]	172 mm
Static Pressure	137.2 Pa
Static Pressure	0.551 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	10.2 VDC
Weight	1.7 lbs
Weight	780 g
Width [y]	51 mm

109E1712 Series

Part	Features	Air Flow	Air Flow	Material - Blade	Static Pressure	Static Pressure	Termination	Fan Type	Power (Watts)	Approval Agency	Material - Frame	Weight	Weight	RPM	Voltage - Rated	Width [y]	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension	Size / Dimension [diameter]	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Noise
Sanyo Denki America Inc. 109E1712Y501	Locked Rotor Protection Speed Sensor (Tach)	276 CFM	7.73 m³/min	Plastic	0.843 in H2O	210 Pa	3 Wire Leads	Tubeaxial	27.6 W	CSA TUV UL	Aluminum	1.7 lbs	780 g	3800 RPM	12 VDC	51 mm	40000 Hrs	60 °C	-20 °C	-20 C	60 °C	Round	172 mm	2.3 A	10.2 VDC	13.8 VDC	Ball	53 dB
Sanyo Denki America Inc. 109E1712H501	Locked Rotor Protection Speed Sensor (Tach)	226 CFM	6.33 m³/min	Plastic	0.551 in H2O	137.2 Pa	3 Wire Leads	Tubeaxial	14.4 W	CSA TUV UL	Aluminum	1.7 lbs	780 g		12 VDC	51 mm	40000 Hrs	70 °C	-20 °C	-20 C	70 °C	Round	172 mm	1.2 A	10.2 VDC	13.8 VDC	Ball	47 dB
Sanyo Denki America Inc. 109E1712F501	Locked Rotor Protection Speed Sensor (Tach)	180 CFM	5.04 mł/min	Plastic	0.382 in H2O	95.1 Pa	3 Wire Leads	Tubeaxial	10.8 W	CSA TUV UL	Aluminum	1.7 lbs	780 g	2500 RPM	12 VDC	51 mm	40000 Hrs	70 °C	-20 °C	-20 C	70 °C	Round	172 mm	0.68 A	10.2 VDC	13.8 VDC	Ball	42 dB
Sanyo Denki America Inc. 109E1712M501	Locked Rotor Protection Speed Sensor (Tach)	148 CFM	4.14 mł/min	Plastic	0.271 in H2O	67.6 Pa	3 Wire Leads	Tubeaxial		CSA TUV UL	Aluminum	1.7 lbs	780 g	2000 RPM	12 VDC	51 mm	40000 Hrs	70 °C	-20 °C	-20 C	70 °C	Round	172 mm	480 mA	10.2 VDC	13.8 VDC	Ball	36 dB
Sanyo Denki America Inc. 109E1712K501	Locked Rotor Protection Speed Sensor (Tach)	300 CFM	8.4 mł/min	Plastic	0.976 in H2O	243 Pa	3 Wire Leads	Tubeaxial	34.8 W	CSA TUV UL	Aluminum	1.7 lbs	780 g	4100 RPM	12 VDC	51 mm	40000 Hrs	60 °C	-20 °C	-20 C	60 °C	Round	172 mm	2.9 A	10.2 VDC	13.8 VDC	Ball	55 dB
Sanyo Denki America Inc. 109E1712M502		148 CFM	4.14 mł/min	Plastic	0.271 in H2O	67.6 Pa	2 Wire Leads	Tubeaxial		CSA TUV UL	Aluminum	1.7 lbs	780 g	2000 RPM	12 VDC	51 mm	40000 Hrs	70 °C	-20 °C	-20 C	70 °C	Round	172 mm	480 mA	10.2 VDC	13.8 VDC	Ball	36 dB
Sanyo Denki America Inc. 109E1712Y502		276 CFM	7.73 m³/min	Plastic	0.843 in H2O	210 Pa	2 Wire Leads	Tubeaxial	27.6 W	CSA TUV UL	Aluminum	1.7 lbs	780 g	3800 RPM	12 VDC	51 mm	40000 Hrs	60 °C	-20 °C	-20 C	60 °C	Round	172 mm	2.3 A	10.2 VDC	13.8 VDC	Ball	53 dB
Sanyo Denki America Inc. 109E1712K502		300 CFM	8.4 mł/min	Plastic	0.976 in H2O	243 Pa	2 Wire Leads	Tubeaxial	34.8 W	CSA TUV UL	Aluminum	1.7 lbs	780 g	4100 RPM	12 VDC	51 mm	40000 Hrs	60 °C	-20 °C	-20 C	60 °C	Round	172 mm	2.9 A	10.2 VDC	13.8 VDC	Ball	55 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 134.30
		10	$ 120.70
		25	$ 119.00
		50	$ 111.35
