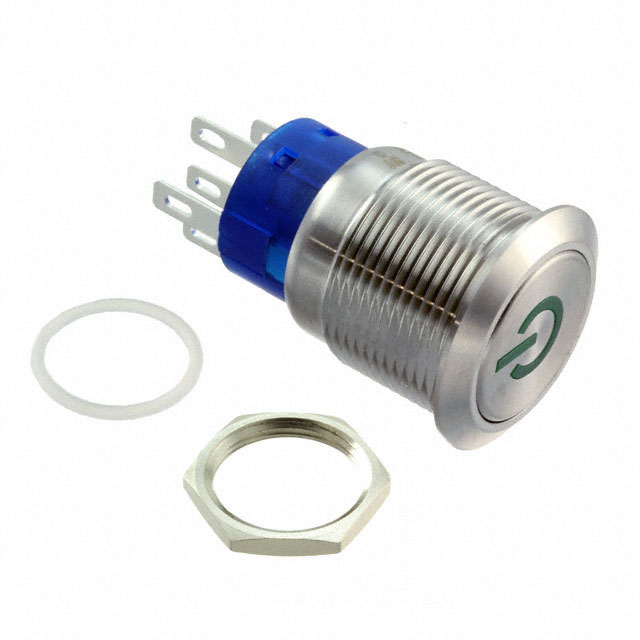

ULV4F2BSS531
ActiveE-Switch
SWITCH PUSHBUTTON SPDT 3A 250V
Deep-Dive with AI
Search across all available documentation for this part.
ULV4F2BSS531
ActiveE-Switch
SWITCH PUSHBUTTON SPDT 3A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ULV4F2BSS531 |
|---|---|
| Actuator Marking | Power Symbol |
| Actuator Type | Flush, Button, Round |
| Circuit | SPDT |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 3 A |
| Electrical Life | 50000 Cycles |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 3 VDC |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 19.2 mm |
| Switch Function | On-Mom |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - AC | 250 V |
ULV4 Series
| Part | Electrical Life | Actuator Type | Voltage Rating - AC | Switch Function | Ingress Protection | Illumination Type, Color | Circuit | Termination Style | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Marking | Mounting Type | Illumination Voltage (Nominal) | Color - Actuator/Cap | Mechanical Life | Type | Panel Cutout Dimensions [diameter] | Termination Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch | 50000 Cycles | Button Flush Round | 125 V | On-Mom | IP67 - Dust Tight Waterproof | LED Red | DPDT | Solder Lug | 3 A | 55 °C | -20 C | No Marking | Panel Mount Front | 24 V | Silver | 1000000 Cycles | Anti-Vandal Illuminated | 19.2 mm | ||
E-Switch | 50000 Cycles | Button Flush Round | 125 V | On-Mom | IP67 - Dust Tight Waterproof | Green LED | SPDT | Quick Connect Solder | 3 A | 55 °C | -20 C | Panel Mount Front | 3 VDC | Silver | 1000000 Cycles | Anti-Vandal Illuminated | 19.2 mm | 0.11 in | 2.8 mm | |
E-Switch | 50000 Cycles | Button Flush Round | 125 V 250 V | On-On | IP67 - Dust Tight Waterproof | Green LED | SPDT | Quick Connect Solder | 3 A | 55 °C | -20 C | No Marking | Panel Mount Front | 3 VDC | Silver | 500000 Cycles | Anti-Vandal Illuminated | 19.2 mm | 0.11 in | 2.8 mm |
E-Switch | 50000 Cycles | Button Flush Round | 125 V | On-Mom | IP67 - Dust Tight Waterproof | Blue LED | SPDT | Solder Lug | 3 A | 55 °C | -20 C | No Marking | Panel Mount Front | 3 VDC | Silver | 1000000 Cycles | Anti-Vandal Illuminated | 19.2 mm | ||
E-Switch | 50000 Cycles | Button Flush Round | 250 V | On-Mom | IP67 - Dust Tight Waterproof | Green LED | SPDT | Quick Connect Solder | 3 A | 55 °C | -20 C | Power Symbol | Panel Mount Front | 3 VDC | Silver | 1000000 Cycles | Anti-Vandal Illuminated | 19.2 mm | 0.11 in | 2.8 mm |
E-Switch | 50000 Cycles | Button Flush Round | 125 V | On-On | IP67 - Dust Tight Waterproof | LED White | DPDT | Solder Lug | 3 A | 55 °C | -20 C | No Marking | Panel Mount Front | Black | 500000 Cycles | Anti-Vandal Illuminated | 19.2 mm | |||
E-Switch | 50000 Cycles | Button Flush Round | 250 V | On-Mom | IP67 - Dust Tight Waterproof | Green/Red LED | SPDT | Quick Connect Solder | 3 A | 55 °C | -20 C | No Marking | Panel Mount Front | 3 VDC | Silver | 1000000 Cycles | Anti-Vandal Illuminated | 19.2 mm | 0.11 in | 2.8 mm |
E-Switch | 50000 Cycles | Button Flush Round | 250 V | On-Mom | IP67 - Dust Tight Waterproof | Blue LED | SPDT | Quick Connect Solder | 3 A | 55 °C | -20 C | No Marking | Panel Mount Front | 12 VDC | Silver | 1000000 Cycles | Anti-Vandal Illuminated | 19.2 mm | 0.11 in | 2.8 mm |
E-Switch | 50000 Cycles | Button Flush Round | 250 V | On-On | IP67 - Dust Tight Waterproof | LED Red | SPDT | Quick Connect Solder | 3 A | 55 °C | -20 C | No Marking | Panel Mount Front | 3 VDC | Silver | 500000 Cycles | Anti-Vandal Illuminated | 19.2 mm | 0.11 in | 2.8 mm |
E-Switch | 50000 Cycles | Button Flush Round | 250 V | On-On | IP67 - Dust Tight Waterproof | Blue LED | SPDT | Quick Connect Solder | 3 A | 55 °C | -20 C | Power Symbol | Panel Mount Front | Silver | 500000 Cycles | Anti-Vandal Illuminated | 19.2 mm | 0.11 in | 2.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.17 | |
| 10 | $ 15.39 | |||
| 25 | $ 14.71 | |||
| 50 | $ 13.95 | |||
| 100 | $ 13.45 | |||
| 250 | $ 12.60 | |||
| 500 | $ 11.67 | |||
Description
General part information
ULV4 Series
Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
