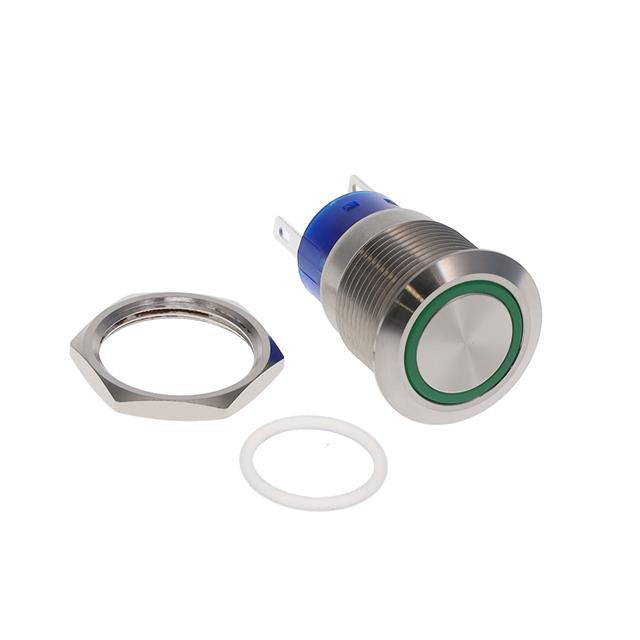

ULV4F23SS331

Active

E-Switch

SWITCH: VANDAL RESISTANT; POS: 2; SPDT; 3A/250VAC; IP67; ON-ON; ULV4

Deep-Dive with AI

Search across all available documentation for this part.

ULV4F23SS331

Active

E-Switch

SWITCH: VANDAL RESISTANT; POS: 2; SPDT; 3A/250VAC; IP67; ON-ON; ULV4

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ULV4F23SS331

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	3 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	19.2 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V, 250 V

ULV4 Series

Part	Electrical Life	Actuator Type	Voltage Rating - AC	Switch Function	Ingress Protection	Illumination Type, Color	Circuit	Termination Style	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Mounting Type	Illumination Voltage (Nominal)	Color - Actuator/Cap	Mechanical Life	Type	Panel Cutout Dimensions [diameter]	Termination Style	Termination Style
E-Switch ULV4F2HS1315	50000 Cycles	Button Flush Round	125 V	On-Mom	IP67 - Dust Tight Waterproof	LED Red	DPDT	Solder Lug	3 A	55 °C	-20 C	No Marking	Panel Mount Front	24 V	Silver	1000000 Cycles	Anti-Vandal Illuminated	19.2 mm
E-Switch ULV4F2BSS331	50000 Cycles	Button Flush Round	125 V	On-Mom	IP67 - Dust Tight Waterproof	Green LED	SPDT	Quick Connect Solder	3 A	55 °C	-20 C		Panel Mount Front	3 VDC	Silver	1000000 Cycles	Anti-Vandal Illuminated	19.2 mm	0.11 in	2.8 mm
E-Switch ULV4F23SS331	50000 Cycles	Button Flush Round	125 V 250 V	On-On	IP67 - Dust Tight Waterproof	Green LED	SPDT	Quick Connect Solder	3 A	55 °C	-20 C	No Marking	Panel Mount Front	3 VDC	Silver	500000 Cycles	Anti-Vandal Illuminated	19.2 mm	0.11 in	2.8 mm
E-Switch ULV4F2BSS541	50000 Cycles	Button Flush Round	125 V	On-Mom	IP67 - Dust Tight Waterproof	Blue LED	SPDT	Solder Lug	3 A	55 °C	-20 C	No Marking	Panel Mount Front	3 VDC	Silver	1000000 Cycles	Anti-Vandal Illuminated	19.2 mm
E-Switch ULV4F2BSS531	50000 Cycles	Button Flush Round	250 V	On-Mom	IP67 - Dust Tight Waterproof	Green LED	SPDT	Quick Connect Solder	3 A	55 °C	-20 C	Power Symbol	Panel Mount Front	3 VDC	Silver	1000000 Cycles	Anti-Vandal Illuminated	19.2 mm	0.11 in	2.8 mm
E-Switch ULV4F2G11506	50000 Cycles	Button Flush Round	125 V	On-On	IP67 - Dust Tight Waterproof	LED White	DPDT	Solder Lug	3 A	55 °C	-20 C	No Marking	Panel Mount Front		Black	500000 Cycles	Anti-Vandal Illuminated	19.2 mm
E-Switch ULV4F2BSSG3G1	50000 Cycles	Button Flush Round	250 V	On-Mom	IP67 - Dust Tight Waterproof	Green/Red LED	SPDT	Quick Connect Solder	3 A	55 °C	-20 C	No Marking	Panel Mount Front	3 VDC	Silver	1000000 Cycles	Anti-Vandal Illuminated	19.2 mm	0.11 in	2.8 mm
E-Switch ULV4F2BSS344	50000 Cycles	Button Flush Round	250 V	On-Mom	IP67 - Dust Tight Waterproof	Blue LED	SPDT	Quick Connect Solder	3 A	55 °C	-20 C	No Marking	Panel Mount Front	12 VDC	Silver	1000000 Cycles	Anti-Vandal Illuminated	19.2 mm	0.11 in	2.8 mm
E-Switch ULV4F23SS311-DD	50000 Cycles	Button Flush Round	250 V	On-On	IP67 - Dust Tight Waterproof	LED Red	SPDT	Quick Connect Solder	3 A	55 °C	-20 C	No Marking	Panel Mount Front	3 VDC	Silver	500000 Cycles	Anti-Vandal Illuminated	19.2 mm	0.11 in	2.8 mm
E-Switch ULV4F23SS546	50000 Cycles	Button Flush Round	250 V	On-On	IP67 - Dust Tight Waterproof	Blue LED	SPDT	Quick Connect Solder	3 A	55 °C	-20 C	Power Symbol	Panel Mount Front		Silver	500000 Cycles	Anti-Vandal Illuminated	19.2 mm	0.11 in	2.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.17
		1	$ 19.39
		10	$ 15.39
		10	$ 17.61
		25	$ 16.82
		25	$ 14.71
		50	$ 15.93
		50	$ 13.95
		100	$ 15.33
		100	$ 13.45
		250	$ 14.34
		250	$ 12.60
		500	$ 12.24
		500	$ 11.67
TME	N/A	120	$ 23.62

Description

General part information

ULV4 Series

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
