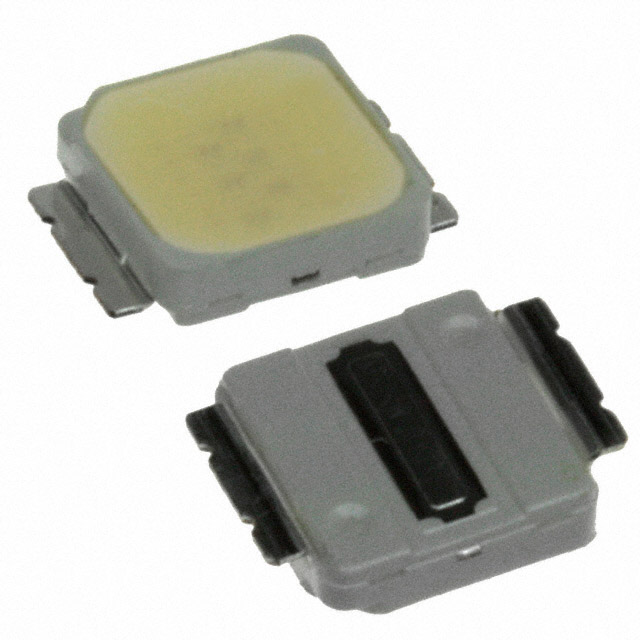

MX6AWT-A1-0000-0008A9

Active

Cree LED

XLAMP MX-6 LIGHT EMITTING DIODE WHITE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MX6AWT-A1-0000-0008A9

Active

Cree LED

XLAMP MX-6 LIGHT EMITTING DIODE WHITE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MX6AWT-A1-0000-0008A9

CCT (K)	2850 K
Color	White, Warm
CRI (Color Rendering Index)	80
Current - Max [Max]	1 A
Current - Test	300 mA
Flux @ 25°C, Current - Test	77 lm
Flux @ 25°C, Current - Test [Max]	81 lm
Flux @ 25°C, Current - Test [Min]	74 lm
Height - Seated (Max) [Max] [z]	1.48 mm
Height - Seated (Max) [Max] [z]	0.058 in
Lumens/Watt @ Current - Test	78 lm/W
Mounting Type	Surface Mount
Package / Case	2-SMD, Gull Wing Exposed Pad
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Supplier Device Package	SMD
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.3 V

MX6AWT Series

...

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Max]	Viewing Angle	Current - Max [Max]	Color	Mounting Type	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Test	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	CCT (K)
Cree LED MX6AWT-H1-R250-0007B9	0.197 in	5 mm	0.197 "	5 mm	SMD	67 lm	71 lm	74 lm	120 °	1 A	White	Surface Mount	2-SMD Gull Wing Exposed Pad	1.48 mm	0.058 in	300 mA	3.3 V	72 lm/W
Cree LED MX6AWT-H1-0000-000AA1	0.197 in	5 mm	0.197 "	5 mm	SMD	87 lm	91 lm	94 lm	120 °	1 A	Cool White	Surface Mount	2-SMD Gull Wing Exposed Pad	1.48 mm	0.058 in	300 mA	3.3 V	92 lm/W	80	5000 K
Cree LED MX6AWT-H1-R250-000AA8	0.197 in	5 mm	0.197 "	5 mm	SMD	87 lm	91 lm	94 lm	120 °	1 A	Warm White	Surface Mount	2-SMD Gull Wing Exposed Pad	1.48 mm	0.058 in	300 mA	3.3 V	92 lm/W	80
Cree LED MX6AWT-A1-0000-000CA3	0.197 in	5 mm	0.197 "	5 mm	SMD		104 lm		120 °	1 A	Neutral White	Surface Mount	2-SMD Gull Wing Exposed Pad	1.48 mm	0.058 in	300 mA	3.3 V	105 lm/W		4300 K
Cree LED MX6AWT-A1-0000-000BZ6	0.197 in	5 mm	0.197 "	5 mm	SMD	94 lm	97 lm	100 lm	120 °	1 A	Warm White	Surface Mount	2-SMD Gull Wing Exposed Pad	1.48 mm	0.058 in	300 mA	3.3 V	98 lm/W	80	3500 K
Cree LED MX6AWT-A1-0000-0008A9	0.197 in	5 mm	0.197 "	5 mm	SMD	74 lm	77 lm	81 lm	120 °	1 A	Warm White	Surface Mount	2-SMD Gull Wing Exposed Pad	1.48 mm	0.058 in	300 mA	3.3 V	78 lm/W	80	2850 K
Cree LED MX6AWT-A1-0000-000BAA	0.197 in	5 mm	0.197 "	5 mm	SMD				120 °	1 A	White	Surface Mount	2-SMD Gull Wing Exposed Pad	1.48 mm	0.058 in	300 mA	3.3 V
Cree LED MX6AWT-A1-0000-000AAA	0.197 in	5 mm	0.197 "	5 mm	SMD	87 lm	91 lm	94 lm	120 °	1 A	Warm White	Surface Mount	2-SMD Gull Wing Exposed Pad	1.48 mm	0.058 in	300 mA	3.3 V	92 lm/W	80	2700 K
Cree LED MX6AWT-H1-R250-000BZ5	0.197 in	5 mm	0.197 "	5 mm	SMD	94 lm	97 lm	100 lm	120 °	1 A	Neutral White	Surface Mount	2-SMD Gull Wing Exposed Pad	1.48 mm	0.058 in	300 mA	3.3 V	98 lm/W	80	4000 K
Cree LED MX6AWT-A1-R250-0009Z7	0.197 in	5 mm	0.197 "	5 mm	SMD		84 lm		120 °	1 A	Warm White	Surface Mount	2-SMD Gull Wing Exposed Pad	1.48 mm	0.058 in	300 mA	3.3 V	85 lm/W	80

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1400	$ 0.72
Newark	Each (Supplied on Full Reel)	1	$ 0.93
		3000	$ 0.89
		6000	$ 0.81
		12000	$ 0.73
		18000	$ 0.70
		30000	$ 0.69

Description

General part information

MX6AWT Series

LED Lighting XLamp® MX-6 White, Warm 2850K 3.3V 300mA 120° 2-SMD, Gull Wing Exposed Pad
