0022032161
ActiveMolex

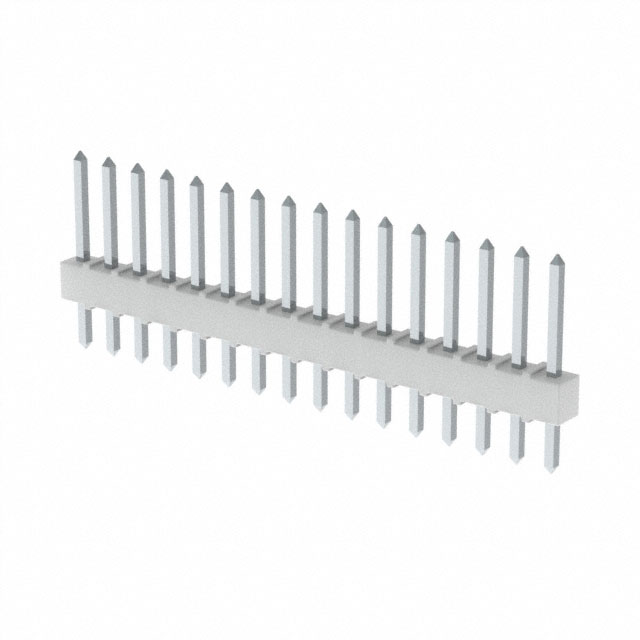

CONN HEADER VERT 16POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
0022032161
ActiveMolex
CONN HEADER VERT 16POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0022032161 |
|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 60 Áin |
| Contact Finish Thickness - Mating | 1.52 Ám |
| Contact Finish Thickness - Post | 60 µin |
| Contact Finish Thickness - Post | 1.52 µm |
| Contact Length - Mating | 7.49 mm |
| Contact Length - Mating | 0.295 in |
| Contact Length - Post [x] | 0.135 in |
| Contact Length - Post [x] | 3.43 mm |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | White |
| Insulation Height | 0.13 in |
| Insulation Height | 3.3 mm |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Overall Contact Length | 14.22 mm |
| Overall Contact Length | 0.56 in |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
002203 Series
| Part | Connector Type | Shrouding | Insulation Material | Mounting Type | Number of Positions Loaded | Contact Shape | Contact Length - Mating | Contact Length - Mating | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Overall Contact Length | Overall Contact Length | Contact Length - Post | Contact Length - Post | Termination | Fastening Type | Applications | Contact Finish - Post | Insulation Color | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Style | Number of Positions | Contact Type | Number of Rows | Overall Contact Length | Contact Material | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | |||||||||||||||||||||||||||||||||||
Molex | Header | Unshrouded | Nylon Polyamide (PA) | Through Hole | All | Square | 0.588 in | 14.94 mm | 0.1 in | 2.54 mm | UL94 V-0 | 21.34 mm | 0.84 in | 0.122 " | 3.1 mm | Solder | Push-Pull | Automotive General Purpose Medical Telecommunications | Tin | White | 60 µin | 1.52 µm | 0.13 in | 3.3 mm | 60 Áin | 1.52 Ám | Board to Board Cable | 10 | Male Pin | 1 | |||||
Molex | Header | Unshrouded | Nylon Polyamide (PA) | Through Hole | All | Circular | 0.295 in | 7.49 mm | 0.098 in | 2.5 mm | UL94 V-0 | 14.2 mm | Solder | Push-Pull | Tin | Natural | 0.13 in | 3.3 mm | Board to Cable/Wire | 4 | Male Pin | 1 | 0.559 in | Brass | 0.134 in | 3.4 mm | |||||||||
Molex | Header | Unshrouded | Nylon Polyamide (PA) | Through Hole | All | Square | 0.435 " | 11.05 mm | 0.1 in | 2.54 mm | UL94 V-0 | 17.53 mm | Solder | Push-Pull | Automotive General Purpose Medical Telecommunications | Tin | White | 60 µin | 1.52 µm | 0.13 in | 3.3 mm | 60 Áin | 1.52 Ám | Board to Board Cable | 12 | Male Pin | 1 | 0.69 in | 0.125 in | 3.18 mm | |||||
Molex | Header | Unshrouded | Nylon Polyamide (PA) | Through Hole | All | Square | 0.435 " | 11.05 mm | 0.1 in | 2.54 mm | UL94 V-0 | 17.53 mm | Solder | Push-Pull | Automotive General Purpose Medical Telecommunications | Tin | White | 60 µin | 1.52 µm | 0.13 in | 3.3 mm | 60 Áin | 1.52 Ám | Board to Board Cable | 14 | Male Pin | 1 | 0.69 in | 0.125 in | 3.18 mm | |||||
Molex | Header | Unshrouded | Nylon Polyamide (PA) | Through Hole | All | Circular | 0.295 in | 7.49 mm | 0.098 in | 2.5 mm | UL94 V-0 | 14.2 mm | Solder | Push-Pull | Tin | Natural | 0.13 in | 3.3 mm | Board to Cable/Wire | 15 | Male Pin | 1 | 0.559 in | Brass | 0.134 in | 3.4 mm | |||||||||
Molex | Header | Unshrouded | Nylon Polyamide (PA) | Through Hole | All | Square | 0.56 " | 14.22 mm | 0.1 in | 2.54 mm | UL94 V-0 | 21.34 mm | 0.84 in | Solder | Push-Pull | Automotive General Purpose Medical Telecommunications | Tin | White | 60 µin | 1.52 µm | 0.13 in | 3.3 mm | 60 Áin | 1.52 Ám | Board to Board Cable | 7 | Male Pin | 1 | 0.15 in | 3.81 mm | |||||
Molex | Header | Unshrouded | Nylon Polyamide (PA) | Through Hole | All | Square | 0.295 in | 7.49 mm | 0.1 in | 2.54 mm | UL94 V-0 | 14.22 mm | Solder | Push-Pull | Automotive General Purpose Medical Telecommunications | Tin | White | 60 µin | 1.52 µm | 0.13 in | 3.3 mm | 60 Áin | 1.52 Ám | Board to Board Cable | Male Pin | 1 | 0.56 in | 0.135 in | 3.43 mm | 16 | |||||
Molex | Header | Unshrouded | Nylon Polyamide (PA) | Through Hole | All | Square | 0.435 " | 11.05 mm | 0.1 in | 2.54 mm | UL94 V-0 | 17.53 mm | Solder | Push-Pull | Automotive General Purpose Medical Telecommunications | Tin | White | 60 µin | 1.52 µm | 0.13 in | 3.3 mm | 60 Áin | 1.52 Ám | Board to Board Cable | 9 | Male Pin | 1 | 0.69 in | 0.125 in | 3.18 mm | |||||
Molex | Header | Unshrouded | Nylon Polyamide (PA) | Through Hole | All | Square | 0.684 in | 17.37 mm | 0.1 in | 2.54 mm | UL94 V-0 | 23.88 mm | 3.2 mm | Solder | Push-Pull | Automotive General Purpose Medical Telecommunications | Tin | White | 60 µin | 1.52 µm | 0.13 in | 3.3 mm | 60 Áin | 1.52 Ám | Board to Board Cable | 14 | Male Pin | 1 | 0.94 " | 0.126 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.08 | |
| 10 | $ 0.89 | |||
| 100 | $ 0.75 | |||
| 2000 | $ 0.56 | |||
| 6000 | $ 0.52 | |||
| 10000 | $ 0.50 | |||
Description
General part information
002203 Series
Connector Header Through Hole 16 position 0.100" (2.54mm)
