0022031151

Obsolete

Molex

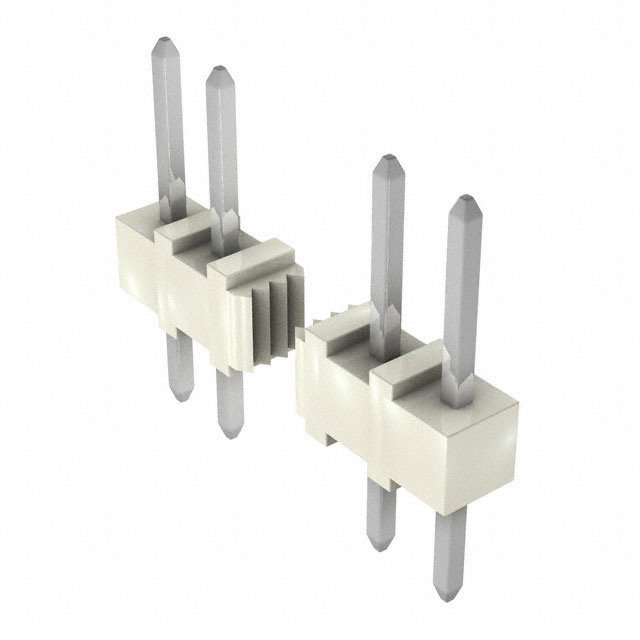

CONN HEADER VERT 15POS 2.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0022031151

Obsolete

Molex

CONN HEADER VERT 15POS 2.5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022031151

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	7.49 mm
Contact Length - Mating	0.295 in
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Height	0.13 in
Insulation Height	3.3 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	14.2 mm
Overall Contact Length	0.559 in
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Unshrouded
Style	Board to Cable/Wire
Termination	Solder

002203 Series

Part	Connector Type	Shrouding	Insulation Material	Mounting Type	Number of Positions Loaded	Contact Shape	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Termination	Fastening Type	Applications	Contact Finish - Post	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Number of Positions	Contact Type	Number of Rows	Overall Contact Length	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions
Molex 0022031121
Molex 0022032103	Header	Unshrouded	Nylon Polyamide (PA)	Through Hole	All	Square	0.588 in	14.94 mm	0.1 in	2.54 mm	UL94 V-0	21.34 mm	0.84 in	0.122 "	3.1 mm	Solder	Push-Pull	Automotive General Purpose Medical Telecommunications	Tin	White	60 µin	1.52 µm	0.13 in	3.3 mm	60 Áin	1.52 Ám	Board to Board Cable	10	Male Pin	1
Molex 0022031041	Header	Unshrouded	Nylon Polyamide (PA)	Through Hole	All	Circular	0.295 in	7.49 mm	0.098 in	2.5 mm	UL94 V-0		14.2 mm			Solder	Push-Pull		Tin	Natural			0.13 in	3.3 mm			Board to Cable/Wire	4	Male Pin	1	0.559 in	Brass	0.134 in	3.4 mm
Molex 0022032122	Header	Unshrouded	Nylon Polyamide (PA)	Through Hole	All	Square	0.435 "	11.05 mm	0.1 in	2.54 mm	UL94 V-0		17.53 mm			Solder	Push-Pull	Automotive General Purpose Medical Telecommunications	Tin	White	60 µin	1.52 µm	0.13 in	3.3 mm	60 Áin	1.52 Ám	Board to Board Cable	12	Male Pin	1	0.69 in		0.125 in	3.18 mm
Molex 0022032142	Header	Unshrouded	Nylon Polyamide (PA)	Through Hole	All	Square	0.435 "	11.05 mm	0.1 in	2.54 mm	UL94 V-0		17.53 mm			Solder	Push-Pull	Automotive General Purpose Medical Telecommunications	Tin	White	60 µin	1.52 µm	0.13 in	3.3 mm	60 Áin	1.52 Ám	Board to Board Cable	14	Male Pin	1	0.69 in		0.125 in	3.18 mm
Molex 0022031151	Header	Unshrouded	Nylon Polyamide (PA)	Through Hole	All	Circular	0.295 in	7.49 mm	0.098 in	2.5 mm	UL94 V-0		14.2 mm			Solder	Push-Pull		Tin	Natural			0.13 in	3.3 mm			Board to Cable/Wire	15	Male Pin	1	0.559 in	Brass	0.134 in	3.4 mm
Molex 0022032076	Header	Unshrouded	Nylon Polyamide (PA)	Through Hole	All	Square	0.56 "	14.22 mm	0.1 in	2.54 mm	UL94 V-0	21.34 mm	0.84 in			Solder	Push-Pull	Automotive General Purpose Medical Telecommunications	Tin	White	60 µin	1.52 µm	0.13 in	3.3 mm	60 Áin	1.52 Ám	Board to Board Cable	7	Male Pin	1			0.15 in	3.81 mm
Molex 0022032161	Header	Unshrouded	Nylon Polyamide (PA)	Through Hole	All	Square	0.295 in	7.49 mm	0.1 in	2.54 mm	UL94 V-0		14.22 mm			Solder	Push-Pull	Automotive General Purpose Medical Telecommunications	Tin	White	60 µin	1.52 µm	0.13 in	3.3 mm	60 Áin	1.52 Ám	Board to Board Cable		Male Pin	1	0.56 in		0.135 in	3.43 mm	16
Molex 0022032092	Header	Unshrouded	Nylon Polyamide (PA)	Through Hole	All	Square	0.435 "	11.05 mm	0.1 in	2.54 mm	UL94 V-0		17.53 mm			Solder	Push-Pull	Automotive General Purpose Medical Telecommunications	Tin	White	60 µin	1.52 µm	0.13 in	3.3 mm	60 Áin	1.52 Ám	Board to Board Cable	9	Male Pin	1	0.69 in		0.125 in	3.18 mm
Molex 0022032148	Header	Unshrouded	Nylon Polyamide (PA)	Through Hole	All	Square	0.684 in	17.37 mm	0.1 in	2.54 mm	UL94 V-0		23.88 mm		3.2 mm	Solder	Push-Pull	Automotive General Purpose Medical Telecommunications	Tin	White	60 µin	1.52 µm	0.13 in	3.3 mm	60 Áin	1.52 Ám	Board to Board Cable	14	Male Pin	1	0.94 "		0.126 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

002203 Series

Connector Header Through Hole 15 position 0.098" (2.50mm)
