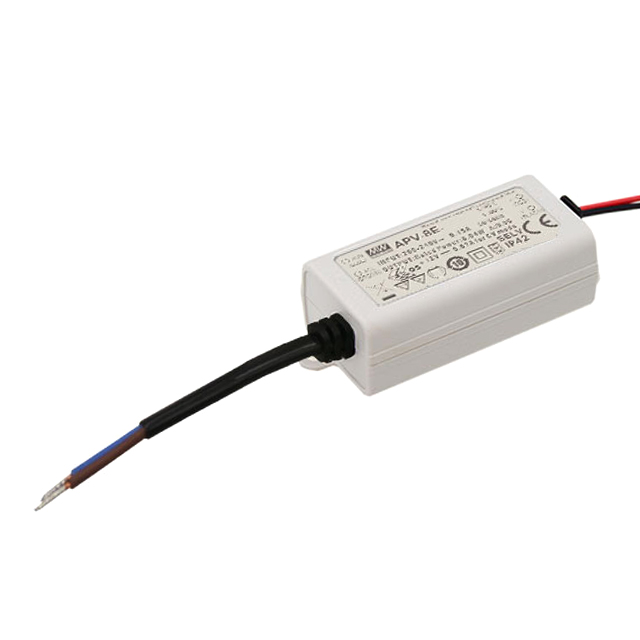

APV-8E-12

Obsolete

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 12V 670MA

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 12V 670MA

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Efficiency	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Features	Voltage - Output	Ratings	Mounting Type	Termination Style	Current - Output (Max) [Max]	Topology	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Voltage - Isolation	Type	Voltage - Input (Max) [Max]
MEAN WELL USA Inc. APV-8-5	1	74 %	7 W	70 °C	-30 ░C	CCC CE cURus	OCP OVP SCP	5 V	IP42	Chassis Mount	Wire Leads	1.4 A	AC DC Converter	2.36 in	60 mm	30 mm	1.18 in	0.93 in	23.5 mm	90 VAC	3750 V	Constant Voltage	264 VAC
MEAN WELL USA Inc. APV-8E-12	1	77.5 %	8 W	70 °C	-30 ░C	CB CE ENEC	OCP OVP SCP	12 V	IP42	Chassis Mount	Wire Leads	670 mA	AC DC Converter	2.36 in	60 mm	30 mm	1.18 in	0.93 in	23.5 mm	180 VAC	3750 V	Constant Voltage	264 VAC
MEAN WELL USA Inc. APV-8E-5	1	74 %	7 W	70 °C	-30 ░C	CB CE ENEC	OCP OVP SCP	5 V	IP42	Chassis Mount	Wire Leads	1.4 A	AC DC Converter	2.36 in	60 mm	30 mm	1.18 in	0.93 in	23.5 mm	180 VAC	3750 V	Constant Voltage	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

670mA 12V Constant Voltage LED Driver AC DC Converter Topology 1 Output
