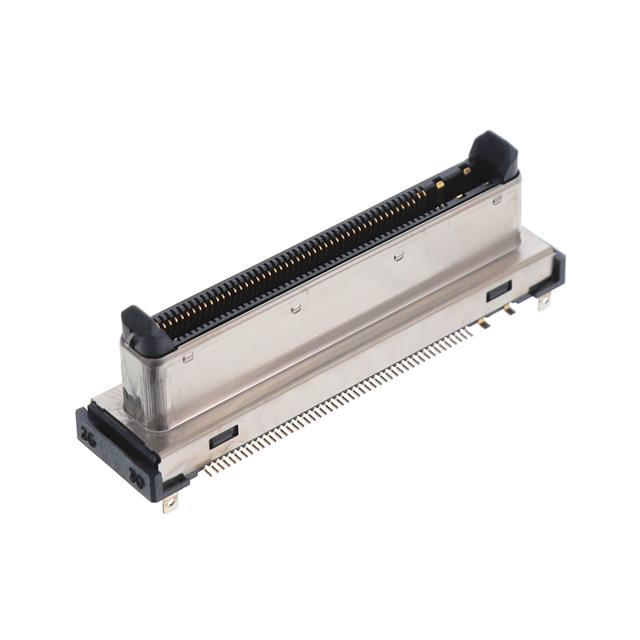

EX80-100P1(70)
ActiveHirose Electric USA, Inc.
CONN PLUG 100POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EX80-100P1(70)
ActiveHirose Electric USA, Inc.
CONN PLUG 100POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EX80-100P1(70) |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Features | Board Guide |
| Height Above Board | 15.1 mm |
| Height Above Board | 0.594 in |
| Mounting Type | Surface Mount |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Pitch [x] | 0.6 mm |
| Pitch [x] | 0.024 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 11.10 | |
| 50 | $ 9.17 | |||
| 100 | $ 8.93 | |||
| 450 | $ 7.48 | |||
| 950 | $ 6.61 | |||
Description
General part information
EX80 Series
100 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
