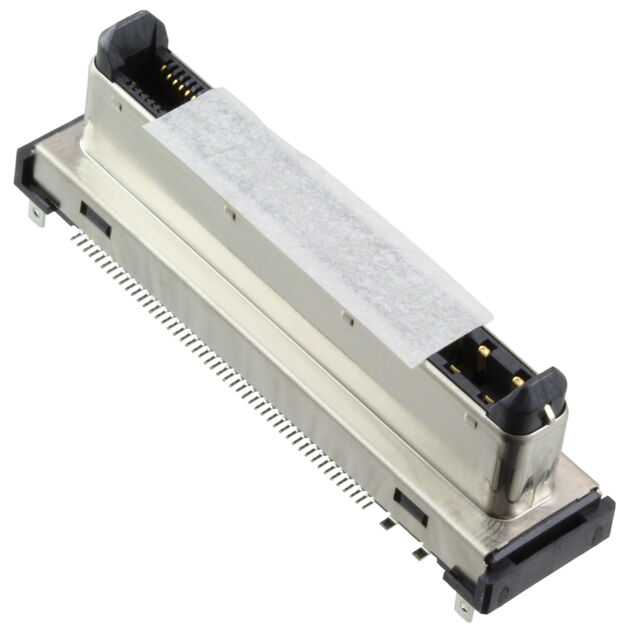

EX80-100P1(30)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG 100POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN PLUG 100POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Contact Finish	Number of Positions	Height Above Board	Height Above Board	Features	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. EX80-100P1(30)	Outer Shroud Contacts Plug	Gold	100	15.1 mm	0.594 in	Board Guide	0.6 mm	0.024 in	2	Surface Mount
Hirose Electric USA, Inc. EX80-54P(30)	Outer Shroud Contacts Plug	Gold	54	15.1 mm	0.594 in	Board Guide	0.6 mm	0.024 in	2	Surface Mount
Hirose Electric USA, Inc. EX80-54(50)S-SH(72)
Hirose Electric USA, Inc. EX80-54(50)S-SH(32)
Hirose Electric USA, Inc. EX80-100P1(70)	Outer Shroud Contacts Plug	Gold	100	15.1 mm	0.594 in	Board Guide	0.6 mm	0.024 in	2	Surface Mount	0.51 µm	20 µin
Hirose Electric USA, Inc. EX80-54P(70)	Outer Shroud Contacts Plug	Gold	54	15.1 mm	0.594 in	Board Guide	0.6 mm	0.024 in	2	Surface Mount	0.51 µm	20 µin
Hirose Electric USA, Inc. EX80-100S(70)	Center Strip Contacts Receptacle	Gold	100	3.6 mm	0.142 in	Board Guide	0.6 mm	0.024 in	2	Surface Mount	0.203 çm	8 çin
Hirose Electric USA, Inc. EX80-54S-SH(36)
Hirose Electric USA, Inc. EX80-54P(31)
Hirose Electric USA, Inc. EX80-100P1(71)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

100 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold

Technical documentation and resources

No documents available
