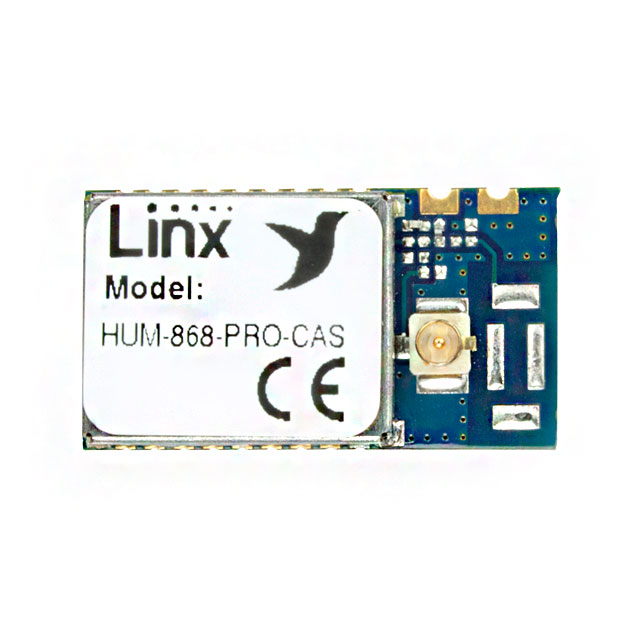

HUM-868-PRO-CAS

Active

TE Connectivity Linx

RF TXRX MOD ISM < 1GHZ CAST SMD

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF TXRX MOD ISM < 1GHZ CAST SMD

Technical Specifications

Parameters and characteristics for this part

Specification	HUM-868-PRO-CAS

Antenna Type	Antenna Not Included, Castellation
Current - Receiving	23.5 mA
Current - Transmitting [Max]	40.5 mA
Current - Transmitting [Min]	22 mA
Data Rate	38.4 kbps
Frequency	868 MHz
Modulation	FHSS
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	27-SMD Module
Power - Output	8.5 dBm
RF Family/Standard	General ISM < 1GHz
Sensitivity	-100 dBm
Serial Interfaces	UART
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2 V

Part	Mounting Type	Package / Case	Current - Receiving	RF Family/Standard	Data Rate	Serial Interfaces	Power - Output	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency	Antenna Type	Current - Transmitting [Max]	Current - Transmitting [Min]	Modulation	Sensitivity	Frequency [Max]	Frequency [Min]
TE Connectivity Linx HUM-868-PRO-CAS	Surface Mount	27-SMD Module	23.5 mA	General ISM < 1GHz	38.4 kbps	UART	8.5 dBm	85 °C	-40 °C	3.6 V	2 V	868 MHz	Antenna Not Included Castellation	40.5 mA	22 mA	FHSS	-100 dBm
TE Connectivity Linx HUM-868-PRC-CAS	Surface Mount	32-SMD Module	23.5 mA	General ISM < 1GHz	115.2 kbps	UART	9.5 dBm	85 °C	-40 °C	3.6 V	2 V		Antenna Not Included Castellation	40.5 mA	22 mA	FHSS FSK	-100 dBm	870 MHz	863 MHz
TE Connectivity Linx HUM-868-PRC	Surface Mount	32-SMD Module	23.5 mA	General ISM < 1GHz	115.2 kbps	UART	9.5 dBm	85 °C	-40 °C	3.6 V	2 V		Antenna Not Included Castellation	40.5 mA	22 mA	FHSS FSK	-100 dBm	870 MHz	863 MHz
TE Connectivity Linx HUM-868-PRO-UFL	Surface Mount	27-SMD Module	23.5 mA	General ISM < 1GHz	38.4 kbps	UART	8.5 dBm	85 °C	-40 °C	3.6 V	2 V	868 MHz	Antenna Not Included Castellation	40.5 mA	22 mA	FHSS	-100 dBm
TE Connectivity Linx HUM-868-PRC-UFL	Surface Mount	32-SMD Module	23.5 mA	General ISM < 1GHz	115.2 kbps	UART	9.5 dBm	85 °C	-40 °C	3.6 V	2 V		Antenna Not Included U.FL	40.5 mA	22 mA	FHSS FSK	-100 dBm	870 MHz	863 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	256	$ 23.52

General part information

General ISM < 1GHz Proprietary Transceiver Module 868MHz Antenna Not Included, Castellation Surface Mount
