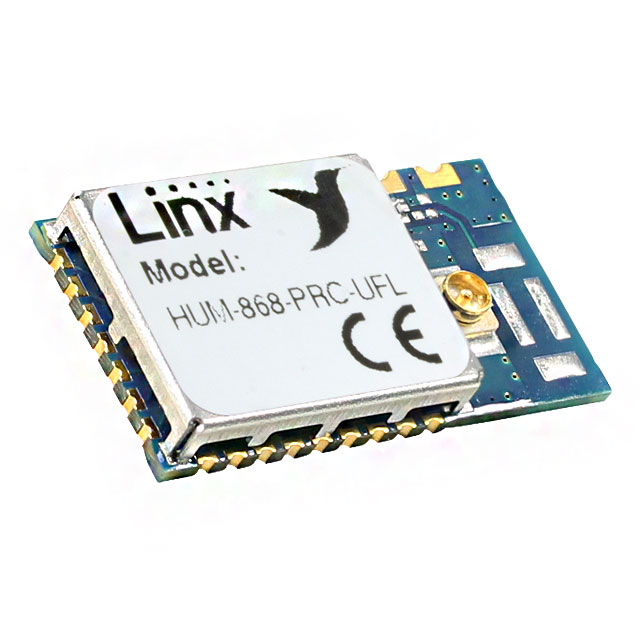

HUM-868-PRC-UFL

Active

TE Connectivity Linx

RF TXRX MOD ISM<1GHZU.FL SMD

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF TXRX MOD ISM<1GHZU.FL SMD

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Package / Case	Current - Receiving	RF Family/Standard	Data Rate	Serial Interfaces	Power - Output	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency	Antenna Type	Current - Transmitting [Max]	Current - Transmitting [Min]	Modulation	Sensitivity	Frequency [Max]	Frequency [Min]
TE Connectivity Linx HUM-868-PRO-CAS	Surface Mount	27-SMD Module	23.5 mA	General ISM < 1GHz	38.4 kbps	UART	8.5 dBm	85 °C	-40 °C	3.6 V	2 V	868 MHz	Antenna Not Included Castellation	40.5 mA	22 mA	FHSS	-100 dBm
TE Connectivity Linx HUM-868-PRC-CAS	Surface Mount	32-SMD Module	23.5 mA	General ISM < 1GHz	115.2 kbps	UART	9.5 dBm	85 °C	-40 °C	3.6 V	2 V		Antenna Not Included Castellation	40.5 mA	22 mA	FHSS FSK	-100 dBm	870 MHz	863 MHz
TE Connectivity Linx HUM-868-PRC	Surface Mount	32-SMD Module	23.5 mA	General ISM < 1GHz	115.2 kbps	UART	9.5 dBm	85 °C	-40 °C	3.6 V	2 V		Antenna Not Included Castellation	40.5 mA	22 mA	FHSS FSK	-100 dBm	870 MHz	863 MHz
TE Connectivity Linx HUM-868-PRO-UFL	Surface Mount	27-SMD Module	23.5 mA	General ISM < 1GHz	38.4 kbps	UART	8.5 dBm	85 °C	-40 °C	3.6 V	2 V	868 MHz	Antenna Not Included Castellation	40.5 mA	22 mA	FHSS	-100 dBm
TE Connectivity Linx HUM-868-PRC-UFL	Surface Mount	32-SMD Module	23.5 mA	General ISM < 1GHz	115.2 kbps	UART	9.5 dBm	85 °C	-40 °C	3.6 V	2 V		Antenna Not Included U.FL	40.5 mA	22 mA	FHSS FSK	-100 dBm	870 MHz	863 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 28.52

General part information

General ISM < 1GHz Transceiver Module 863MHz ~ 870MHz Antenna Not Included, U.FL Surface Mount
