1915-3-100-08

Active

Kendall Howard

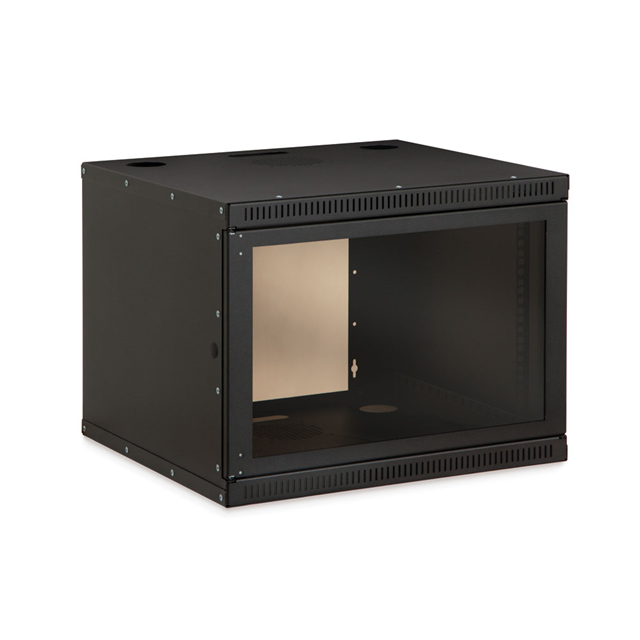

8U SECURITY WALL RACK ENCLOSURE

Deep-Dive with AI

Search across all available documentation for this part.

Documents1915-3-100-08 Instr Datasheet

1915-3-100-08

Active

Kendall Howard

8U SECURITY WALL RACK ENCLOSURE

Deep-Dive with AI

Documents1915-3-100-08 Instr Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1915-3-100-08

Color	Black
Dimensions - Overall [x]	564.39 mm
Dimensions - Overall [x]	22.22 in
Dimensions - Overall [y]	524.51 mm
Dimensions - Overall [y]	20.65 in
Dimensions - Overall [z]	437.64 mm
Dimensions - Overall [z]	17.23 in
Door	Acrylic
Material	Cold Roll Steel (CRS)
Mounting Rails	One Pair
Number of Units	8U
Style	Bottom, Enclosed, Sides, Front, Top
Type	Cabinet Rack
Ventilation	Vented
Weight	44.3 lbs
Weight	20 kg

1915-3 Series

Part	Dimensions - Overall [y]	Dimensions - Overall [z]	Dimensions - Overall [y]	Dimensions - Overall [x]	Dimensions - Overall [x]	Dimensions - Overall [z]	Type	Material	Weight	Weight	Door	Mounting Rails	Ventilation	Color	Style	Number of Units	Number of Units	Dimensions - Overall [z]	Dimensions - Overall [y]
Kendall Howard 1915-3-300-21	12 in	39.88 in	304.8 mm	21.5 "	546.1 mm	1012.95 mm	Open Rack	Cold Roll Steel (CRS)	6.2 kg	13.8 lbs	Doorless	Two Pair	Non-Vented	Black	Open Rack Double Frame	21 U
Kendall Howard 1915-3-100-08	20.65 in	17.23 in	524.51 mm	22.22 in	564.39 mm	437.64 mm	Cabinet Rack	Cold Roll Steel (CRS)	20 kg	44.3 lbs	Acrylic	One Pair	Vented	Black	Bottom Enclosed Front Sides Top		8U
Kendall Howard 1915-3-300-12	12 in	24.13 in	304.8 mm	21.5 "	546.1 mm	612.9 mm	Open Rack	Cold Roll Steel (CRS)	4.7 kg	10.3 lbs	Doorless	Two Pair	Non-Vented	Black	Open Rack Double Frame	12 U
Kendall Howard 1915-3-200-12							Cabinet Rack	Cold Roll Steel (CRS)	17 kg	37.5 lbs	Doorless	Two Pair	Vented	Black	Bottom Enclosed Front Sides Top	12 U
Kendall Howard 1915-3-301-12	18 in	24.13 in	457.2 mm	21.5 "	546.1 mm	612.9 mm	Open Rack	Cold Roll Steel (CRS)	5.4 kg	12 lbs	Doorless	Two Pair	Non-Vented	Black	Open Rack Double Frame	12 U
Kendall Howard 1915-3-001-08							Open Rack	Cold Roll Steel (CRS)	5 kg	11.1 lbs	Doorless	Two Pair	Non-Vented	Black	Open Rack Single Frame		8U
Kendall Howard 1915-3-300-16	12 in	31.12 "		21.5 "	546.1 mm		Open Rack	Cold Roll Steel (CRS)	5.4 kg	12 lbs	Doorless	Two Pair	Non-Vented	Black	Open Rack Double Frame	16 U		790.45 mm	304.8 mm
Kendall Howard 1915-3-301-16	18 in	31.13 "	457.2 mm	21.5 "	546.1 mm	790.7 mm	Open Rack	Cold Roll Steel (CRS)	6.1 kg	13.5 lbs	Doorless	Two Pair	Non-Vented	Black	Open Rack Double Frame	16 U
Kendall Howard 1915-3-301-21	18 in	39.88 in	457.2 mm	21.5 "	546.1 mm	1012.95 mm	Open Rack	Cold Roll Steel (CRS)	7 kg	15.5 lbs	Doorless	Two Pair	Non-Vented	Black	Open Rack Double Frame	21 U

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 519.99
		2	$ 514.99
		4	$ 509.99

Description

General part information

1915-3 Series

Cold Roll Steel (CRS) Cabinet Rack Enclosed, Bottom, Front, Sides, Top 22.220" L x 20.650" W x 17.230" H (564.39mm x 524.51mm x 437.64mm) Black

Documents

Technical documentation and resources

1915-3-100-08 Instr

Datasheet
