1915-3-301-16

Active

Kendall Howard

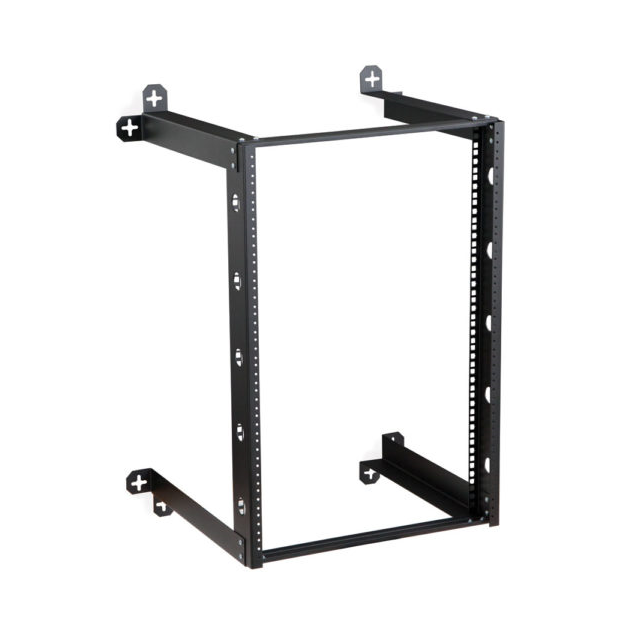

16U 18" V-LINE FIXED WALL RACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsV Line Wall Mount Rack Instr Datasheet

1915-3-301-16

Active

Kendall Howard

16U 18" V-LINE FIXED WALL RACK

Deep-Dive with AI

DocumentsV Line Wall Mount Rack Instr Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1915-3-301-16

Color	Black
Dimensions - Overall [x]	21.5 "
Dimensions - Overall [x]	546.1 mm
Dimensions - Overall [y]	18 in
Dimensions - Overall [y]	457.2 mm
Dimensions - Overall [z]	790.7 mm
Dimensions - Overall [z]	31.13 "
Door	Doorless
Material	Cold Roll Steel (CRS)
Mounting Rails	Two Pair
Number of Units	16 U
Style	Open Rack, Double Frame
Type	Open Rack
Ventilation	Non-Vented
Weight	6.1 kg
Weight	13.5 lbs

1915-3 Series

Part	Dimensions - Overall [y]	Dimensions - Overall [z]	Dimensions - Overall [y]	Dimensions - Overall [x]	Dimensions - Overall [x]	Dimensions - Overall [z]	Type	Material	Weight	Weight	Door	Mounting Rails	Ventilation	Color	Style	Number of Units	Number of Units	Dimensions - Overall [z]	Dimensions - Overall [y]
Kendall Howard 1915-3-300-21	12 in	39.88 in	304.8 mm	21.5 "	546.1 mm	1012.95 mm	Open Rack	Cold Roll Steel (CRS)	6.2 kg	13.8 lbs	Doorless	Two Pair	Non-Vented	Black	Open Rack Double Frame	21 U
Kendall Howard 1915-3-100-08	20.65 in	17.23 in	524.51 mm	22.22 in	564.39 mm	437.64 mm	Cabinet Rack	Cold Roll Steel (CRS)	20 kg	44.3 lbs	Acrylic	One Pair	Vented	Black	Bottom Enclosed Front Sides Top		8U
Kendall Howard 1915-3-300-12	12 in	24.13 in	304.8 mm	21.5 "	546.1 mm	612.9 mm	Open Rack	Cold Roll Steel (CRS)	4.7 kg	10.3 lbs	Doorless	Two Pair	Non-Vented	Black	Open Rack Double Frame	12 U
Kendall Howard 1915-3-200-12							Cabinet Rack	Cold Roll Steel (CRS)	17 kg	37.5 lbs	Doorless	Two Pair	Vented	Black	Bottom Enclosed Front Sides Top	12 U
Kendall Howard 1915-3-301-12	18 in	24.13 in	457.2 mm	21.5 "	546.1 mm	612.9 mm	Open Rack	Cold Roll Steel (CRS)	5.4 kg	12 lbs	Doorless	Two Pair	Non-Vented	Black	Open Rack Double Frame	12 U
Kendall Howard 1915-3-001-08							Open Rack	Cold Roll Steel (CRS)	5 kg	11.1 lbs	Doorless	Two Pair	Non-Vented	Black	Open Rack Single Frame		8U
Kendall Howard 1915-3-300-16	12 in	31.12 "		21.5 "	546.1 mm		Open Rack	Cold Roll Steel (CRS)	5.4 kg	12 lbs	Doorless	Two Pair	Non-Vented	Black	Open Rack Double Frame	16 U		790.45 mm	304.8 mm
Kendall Howard 1915-3-301-16	18 in	31.13 "	457.2 mm	21.5 "	546.1 mm	790.7 mm	Open Rack	Cold Roll Steel (CRS)	6.1 kg	13.5 lbs	Doorless	Two Pair	Non-Vented	Black	Open Rack Double Frame	16 U
Kendall Howard 1915-3-301-21	18 in	39.88 in	457.2 mm	21.5 "	546.1 mm	1012.95 mm	Open Rack	Cold Roll Steel (CRS)	7 kg	15.5 lbs	Doorless	Two Pair	Non-Vented	Black	Open Rack Double Frame	21 U

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 149.99
		2	$ 147.99
		4	$ 145.99

Description

General part information

1915-3 Series

Cold Roll Steel (CRS) Open Rack Open Rack, Double Frame 21.500" L x 18.000" W x 31.130" H (546.10mm x 457.20mm x 790.70mm) Black

Documents

Technical documentation and resources

V Line Wall Mount Rack Instr

Datasheet
